TRR7800H 4-way RFPON Return Optical Receiver

Name: TRR7800H 4-way RFPON Return Optical Receiver
Brand: Lootom
SKU: 112121901
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

Lootom

Model Number:

TRR7800H

Lootom Telcovideo Network (Wuxi) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name Lootom

Model Number TRR7800H

Specifications

RR7800H supply 4 ways return optical receiver
-27 to -10dBmV input
1U 19" standard housing
front panel LCD status indicator

Features

Using excellent photodiode detector to realize photo-electric conversion.
1310nm and 1550nm two-windows operation module, suitable for different optical transmission systems.
5~200MHz bandwidth wide enough to satisfy different CATV systems.
Excellent low power consumption reverse amplifier module
4 independent receivers assembled in a 1U 19 standard rack, reducing cost and space
Excellent switching power supply, adapt to the wide voltage range, having high reliability
Perfect lightning protection and over-voltage protection
Front panel LCD status indicators and RS-232 interface accommodates local or remote status monitoring function

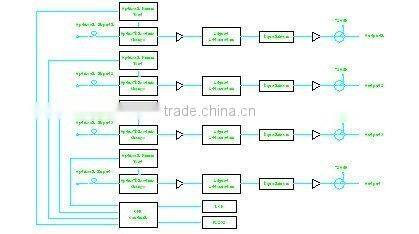

Diagram

Specifications

Item	Unit	Description	Remark
Optical Wavelength	nm	1260~1590
Input Optical Power	dBm	+1 ~ -15
Recommend Operation Range	dBm	-10~0
Optical Connector		FC / APC or SC/APC
Output Return Loss	dB	>45.0
Input Optical Power Accuracy		5 %
RF Bandwidth	MHz	5~200
RF Output Level	dBuV	≥80	optical input power -10 dBm,10 dB link loss
Flatness	dB	≤ ±1.0
RF Output Return Loss	dB	≥16
RF Output Test Point	dB	-20 ±1.0
Isolation Degree Between Optical Receivers	dB	60
C/CNR	dB	≥51
C/CSO	dBc	≤-60
C/CTB	dBc	≤-65
RF Connector		F-Connector
Dimension	mm	485×43×300
