Specifications
TON6800Q fiber optic node:Up to 4 outputs,1,2,3 are optional
AGC function
Low price and high quality
Plug ATT adjustment
Summarize
TON6800Q optical node is aimed at cable TV network transformation requires to design, optical node adopts imported integration optical receiver module, RF amplifer use imported GaAs amplifier module, high reliability, high output level and excellent performance.
TON6800Q forward optical receive range is-7dBm~+3dBm.
Forward AGC function optional,receive at+1~-6dBm,RF output level changesnomore than ±0.5dB.
Optional reverse laser transmit module FP or laser DFB enable to transmitdataand image information simultaneously.
If using RF PON (RFoG) method, the reverse may choose the "burst" type optical transmitter module, make the reverse transmit in "burst" mode, using time-division control technology (TDM) as the same as CMTS to control the "burst" of the reverse optical transmit, so as to achieve at any given time, allowing only one TON6800Q to maintain communication with the CMTS head-end, greatly improving the noise intrusion.
DNIS (dynamic noise isolation) technology optional; just install the DNIS switch in the three-state optical switch position on the node, site smooth upgrade. Adopt time-division control technology (TDM) as the same as CMTS, use the "burst" mode to "open" or "off" RF return channel with the CM signals synchronously, it can control each port of the optical node, essentially improved the two-way HFC network convergence noise characteristics.
Open network management transponder options meet the national standard; comply with SCTE HMS and IEC. Be able to monitor the real-time status, performance parameters of the optical node remotely, manage the network configuration remotely.
Features
- Forward optical receiver module, adopts excellent detector
- Modular design: independent reverse transmit modules, network management modules, power modules
- 2——4 output ports. Two output, RF output level up to 112dBuV; four output, RF output level up to 108dBuV
- RF output level and slope adjustable,outstanding balance of alternative technology, unity the inserts structure
- Optical AGC function optional, receive at+1~-6dBm, RF output level changes no more than±0.5dB
- Each RF return port is equipped with 3-state reverse noise reduction switch and plug-in attenuator
- Reverse laser transmitter FP or laser DFB optional, “burst mode” modules optional (RFoG)
- DNIS optional (dynamic noise isolation switch)
- Open network management transponder options meet the national standard, comply with SCTE HMS and IEC
- Local RF test point and optical output power test point; optical received power normal, high and low LED alarm instructions, optical power digital display optional
- Excellent surge suppression circuits, improved the resistance to the impact of lighting and the prevention of surge capacity, further enhance the reliability

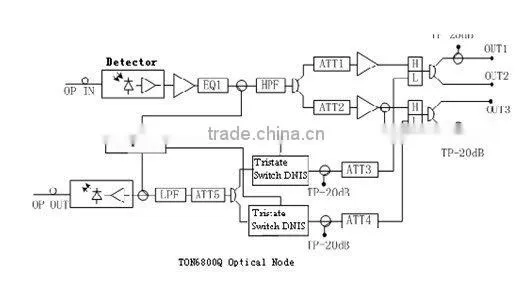

Diagram
Specifications
Form 1 Optical Node Parameter
