 transmitter and receiver module TRT1000E High Performance HFC Headend Optical DevicesDFB laser 1310nm  transmitter and receiver



Overview


TRT1000E reverse optical transmitter is the best choice of bi-directional optical transmission system networking products. It combines with OPTIVO optical communication platform, TPS1000E power to consist high-performance reverse optical transmission system, it can be used to return images, data and voice, it also can consist video conference, distance learning, computer networking and other

multi-functional business, more important, it is an important component to make CATV network achieve network management function.


TRT1000E reverse optical transmitter adopt high-performance return laser, to achieve the user             5-200MHZ return path,excellent performance, flexible configuration. It built-in microprocessor monitor the key parameters of the laser working status, and transmit to OPTIVO platform system controller through trunk.


Support RF PON(RFoG)function,high-performance return “burst”laser optional,so that the reverse launch under the “burst ”mode,improved the two-way HFC network convergence noise characteristics, greatly improved ingress.

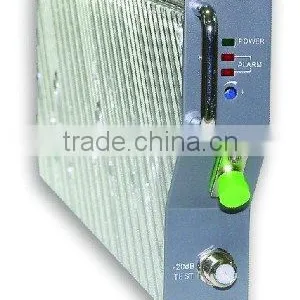

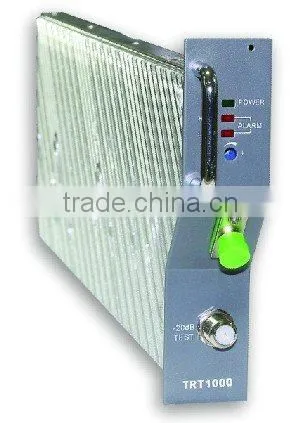

This transmitter adopts radiator-style overall structure, high strength, excellent heat dissipation.


Features



  •  200MHz operating bandwidth, IFP,IDFB laser optional
  •  IFP or IDFB optional, excellent APC control
  •  RFoG technology optional
  •  Excellent NPR dynamic range
  •  Hot-plug design to improve the reliability, easy to install and maintain
  •  Input level of two ports can be equivalent
  •  Perfect protection circuit (boot time delay, working parameter alarm
  • Real-time transmit to the system platform of the optical receiver working status parameters and display
  • Designed for high-density installation, good thermal design, low power consumption, high reliability
  • Open NM interface meets the national, SCTE HMS network management standard. All the local monitored data can be managed remotely.



Diagram

Technical parameters



NO.

Item

Unit

Description

Remark

IFP

IDFB

With optical isolator

1

Working mode



Normal,burst



2

Out wave length

nm

1310 or 1550



3

Out power

dBm

0

1~4



4

Optical Connector Type



SC/AP or FC/APC



6

Frequency range

MHz

5~200



7

Flatness

dB

±0.75



8

Normal in level(@3.2MHzbandwidth)

dBμV

80(75~90)



9

In level adjusting range

dBμV

0~-30



10

Impedance

Ω

75



11

Reflect loss

dB

>16



12

Drive level test port

dB

-20±1



13

NPR dynamic range

dB

≥15(NPR≥30)

≥20(NPR≥30)

Receiving at -6dBm

14

Power consumption

W

<3



15

Temperature

℃

-5~55



16

Dimension

mm

25.5×126×392.5







Customers who bought this product will also consider our following products:

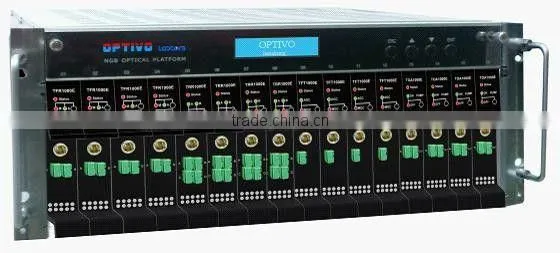

Optical platform -OPTIVO Optical platform                  TFT1550D-1550nm external modulation optical transmitter
