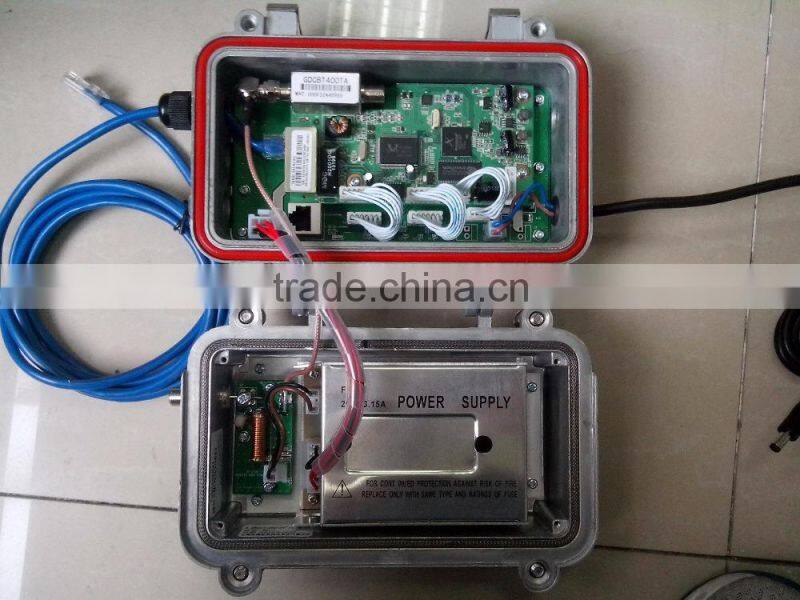

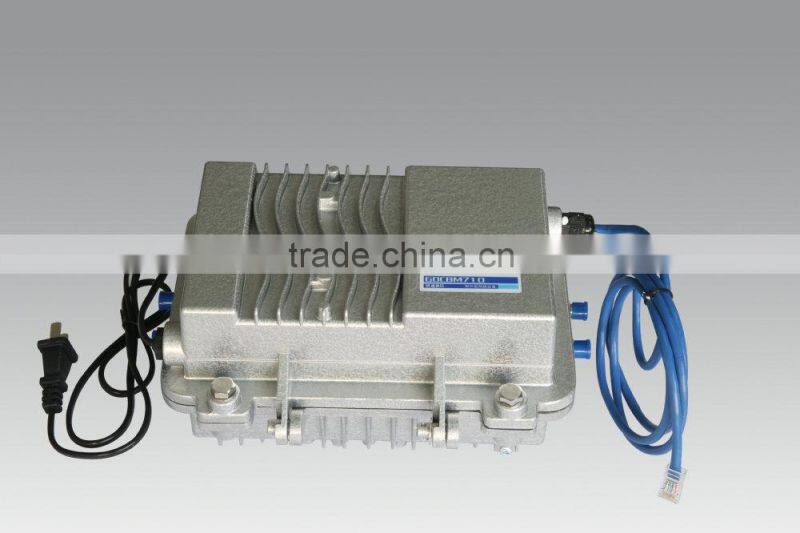

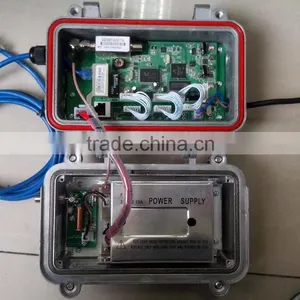

EOC slave Outdoor EOC slave GDCBT400Y EoC slave
Overview
Outdoor EOC slave also be called the coaxial network slave, hereinafter referred to as slave. It connect to
the standard 10/100 Bsae Ethernet and indoor coaxial cable terminal devices. It can use the coaxial cable
to connect to the computer, routers, switches, IP phone and set-box such kind of network devices to the Internet.
Features
GDCBT400YB can provide the physical links rate up to 500 Mbps , perfectly satisfy the high requirements of the application.It provides the following application and features:
l three 10/100 BaseT adaptive RJ45 interface to connect to a computer or set-top boxes and other equipment.
l OFDM modulation, multicarrier technology to ensure the stability of data transmission in noise environment.
l Using 128 bit AES encryption effectively protects the safety of data transmission.
l GDCBT400YB is compatible with Windows 2000, Windows XP, Linux, Mac OS X and other Ethernet network operating system .
l Data transformation can be more easy between a slave and a master switch on the coaxial cable.
Technical parameters
Item |
Parameter |
Standard |
Three standard Ethernet ports |
Standard protocol |
IEEE802.3,IEEE802.3X,IEEE802.3u,P1901 |
EoC protocol |
HomePlug AV and related standard |
Protocol |
TDMA,CSMA/CA |
Transmitting rate |
500 Mbps |
Bandwidth |
7.5-65MHz |
Modulation mode |
OFDM 4096/1024/256/64/16/8-QAM,QPSK,BPSK and ROBO |
Data channel |
Ethernet and coaxial network |
Transmitting distance |
1 km on coaxial cable |
Safety |
128-bit AES encryption |
VLAN |
IEEE802.1Q (VLAN lagging) |
QoS |
Supports ToS and CoS package classification |
Flow control |
Supports flow control based at ports |
SNMP |
SNMPv2 |
802.1X |
Supports IEEE802.1X access certification |
Watchdog |
Supports monitoring CPU by watchdog |
Management |
Supports user management based on SNMP,WEB and CLI |
LED light |
Power,Ethernet,Cable |
Port |
3 RJ45 Ethernet ports 1 60V AC/ EOC F type coaxial interface 1 12V DC power port |
Power consumption |
<=5W |
Power supply |
Input :60 V AC |
Environmental parameters |
Storage Temperature:-20~80 Operation Temperature:0~70 Humidity:10%~90% (non-condensation) |
|
Operating system
|
Windows 2000,Windows XP,Linux,Mac OS |
