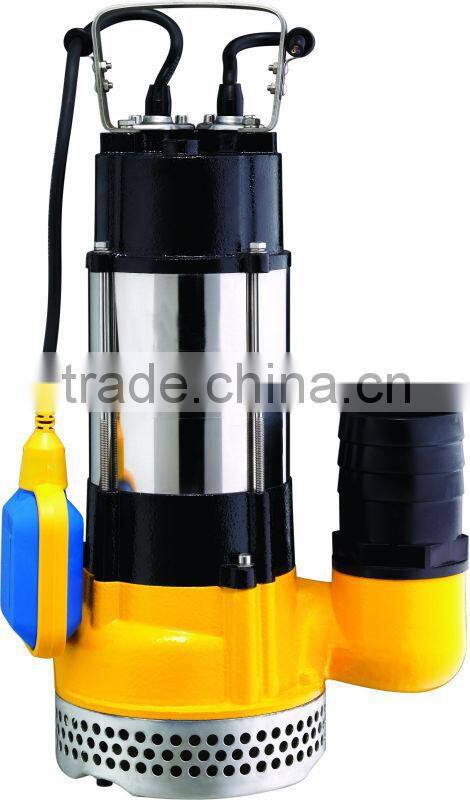

Small Submersible Pump :
1. Application
Widely use for transferring water in hotel, cloacae, construction industry, agriculture, family, etc.
Features
1) The Water Pumps are re-designed the passage of flow and enjoys wider high efficiency areas, can be used whole head without over-loading , and can safely run under large flow rate with high efficiency;
2) Anti-clogging impeller with big passage designed can transfer water with big suspend solid and long fiber;
3) Adopted vortex suction structure and particular casting technique, so with the better draining and anti-corrosiveness performance;
4) It can be automatically on-off if it is assembled with float swith. Thermal protector inside pump can automatically shut off the pump when the overheating and overload, to guarantee safe and reliable operation under hard condition.
2 Operation Condition
Item |
Data |
Max. Fluid Temp. |
≤ 40°C |
Max. Fluid Diameter |
15mm |
Fluid PH |
4---10 |
Max. immersion |
10m |
Power Consumption |
0.75KW-2.2KW/1-3HP |
Max. Head |
53m |
Max. Flow |
650l/min |
Motor and Pump:
Rewindable motor
Three-phase: 380V-415V/50Hz
Single-phase: 220V-240V/50Hz
It's available to equip with floating switch which can protect the sewage pump automatically.
Curve tolerance according to ISO 9906.
Warranty: 1 year (according to our general sales condition)
Components and Materials:
COMPONENTS |
MATERIAL |
Handle |
AISI 304 SS |
Diffuser |
Cast-iron G20 UNI5007 |
Impeller |
Cast-iron G20 UNI5007 |
Motor external casing |
AISI 304 SS |
Top chock |
Cast-iron G20 UNI5007 |
Bottom support |
AISI 304 SS |
Mechanical Seal |
Carbon –SIC/TC |
Shaft |
AISI 304 SS-C1045 |
Bearing |
1.C&U 2.NSK |
Seal lubricant oil |
Oil for food machinery and pharmaceutical use |
Small Submersible Pump
3 Certificate:
4 Our company culture is progress,unity,learning. Create top brand of international market.
5 Business parnter:

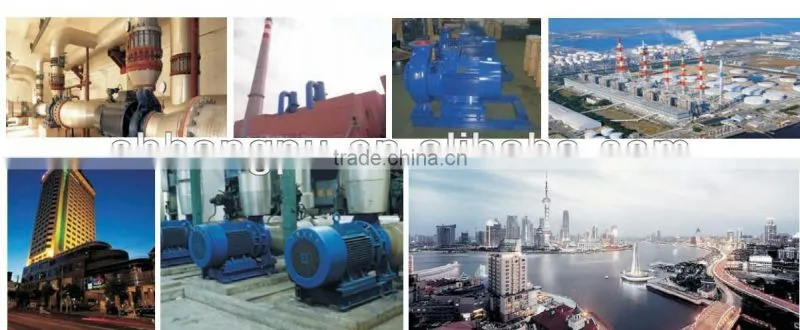

6 Used in Chemical industry, power plant, thermal power plant, food, urban water supply, irrigation ,so on

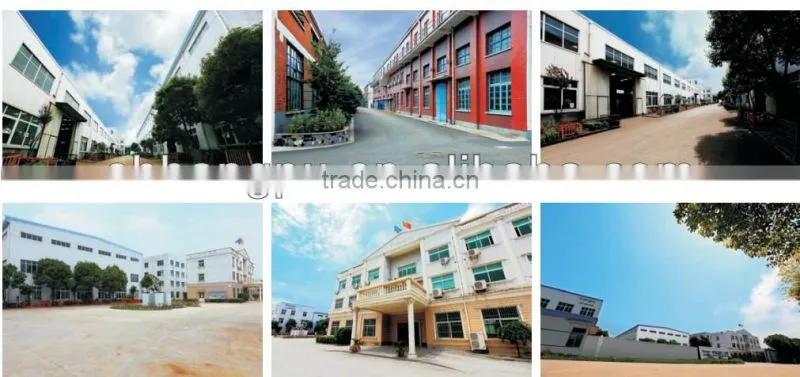

7 Research center and sales office building

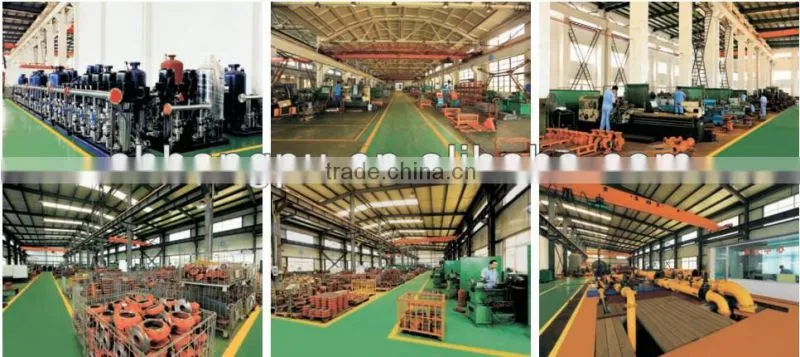

8 Workshop: Raw material Store, Cutting and welding, Metalworking,Assembly,Test, painting, package, delivery

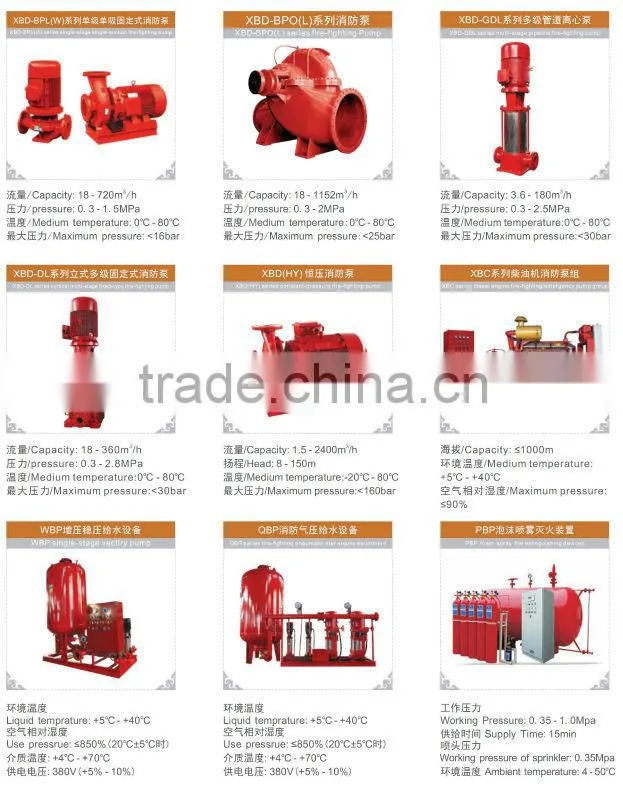

9 Main products :
