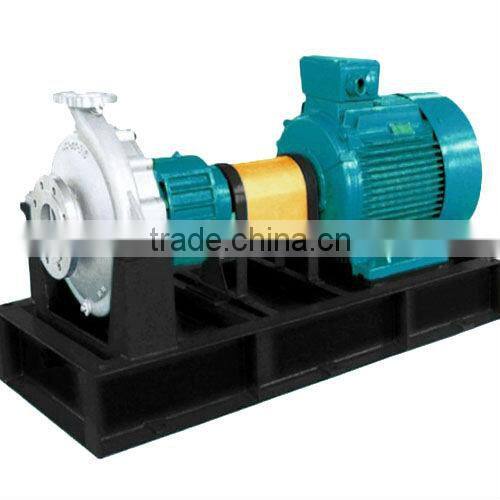

resistant corrosive centrifugal pump
1. APPLICATION:
1) Oil refinery, petrochemical industry, coal process Industry and sub-zero engineering;
2) Chemical industry, paper making, paper pulp, sugar refinery and common process engineering;
3) Water works, sea water desalt plant;
4) Warming and air-conditioning system;
5) Power plant;
6) Environmental protection project;
7) Ship and maritime industry and so on.
2. MEDIA TRANSPORTED
1). Sulphric acid and nitric acid of various temperatures and concentration, salt;
2). Acid and phosphoric acid etc. roganic and inorganic acids;
3). Sodium hydroxide, sodium carbonate etc. alkaline solutions of various temperatures and concentrations;
4). Various salt solutions;
5). Various liquid petrochemical products, organic compounds and other corrosive raw materials and products.
3. FEATURES:
1). The ZA Petrochemical Process Pump is single suction, single stage horizontal chemical process pump;
2). The shaft seal can be either the mixed packing seal or the single or dual-face mechanical;
3). The ball bearing is durable and the axle diameter is enough to make sure of stable running;
4). The standard designed axle seal at ex-works uses a single or dual end face mechanical seal, either a packing seal, and is fitted cooling,rinsing or seal liquid system.

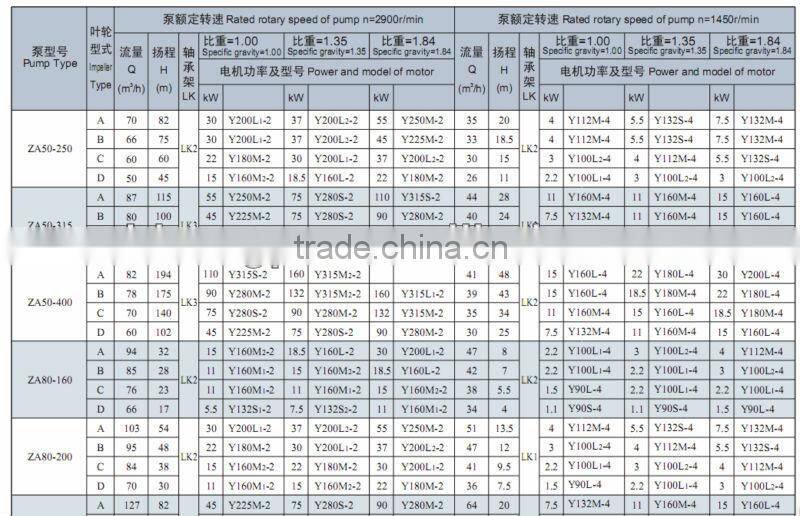

4. PERFORMANCE:
Item |
Data |
| Flow | 5---2400m3/h |
Head |
14---300m |
Max. Pressure |
< 4Mpa |
| Working Temperature | -80°C---450°C |
Aperture |
25---400mm |

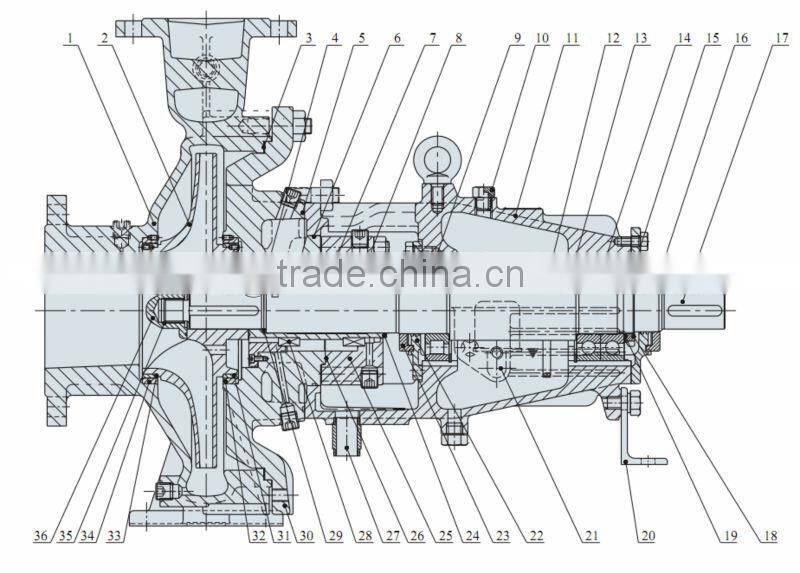

5. STRUCTURE DRAWING
