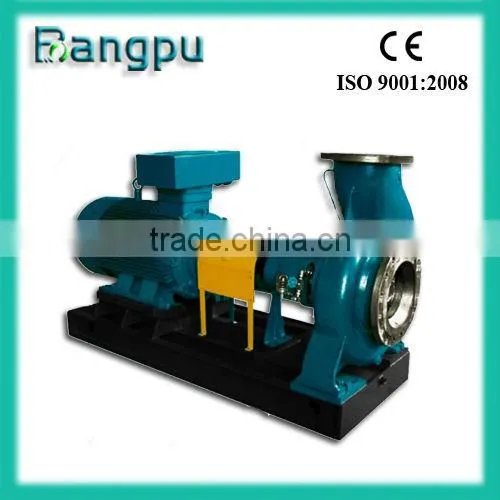

Standard Chemical Process Pump
1. APPLICATION
Transport low or high temperature liquid;neutral or corrosive liquids;clean or solid grains contained liquids.Specially applied for
1). Chemical and petrochemical industrial
2). Oil refinery
3). Paper and paper pulp industries
4). Sugar refine industry
2. MEDIA TRANSPORTED
1). Sulphric acid and nitric acid of various temperatures and concentration, salt;
2). Acid and phosphoric acid etc. roganic and inorganic acids;
3). Sodium hydroxide, sodium carbonate etc. alkaline solutions of various temperatures and concentrations;
4). Various salt solutions;
5). Various liquid petrochemical products, organic compounds and other corrosive raw materials and products.
3. FEATURES
1). The pump is single suction, single stage horizontal chemical process pump;
2). The shaft seal can be either the mixed packing seal or the single or dual-face mechanical;
3). The ball bearing is durable and the axle diameter is enough to make sure of stable running;
4). The flange design used PN 16 and PN 25 two kinds, and ANS1125Lb/inch2 or 150Lb/inch2.
4. PERFORMANCE
Item |
Data |
| Flow | 5---2400m3/h |
Head |
14---300m |
Max. Pressure |
< 4Mpa |
| Working Temperature | -80°C---450°C |
Aperture |
25---400mm |
Flat performance curve,low vapour corrosion value,high efficiency,which are also kept under a non-full load.

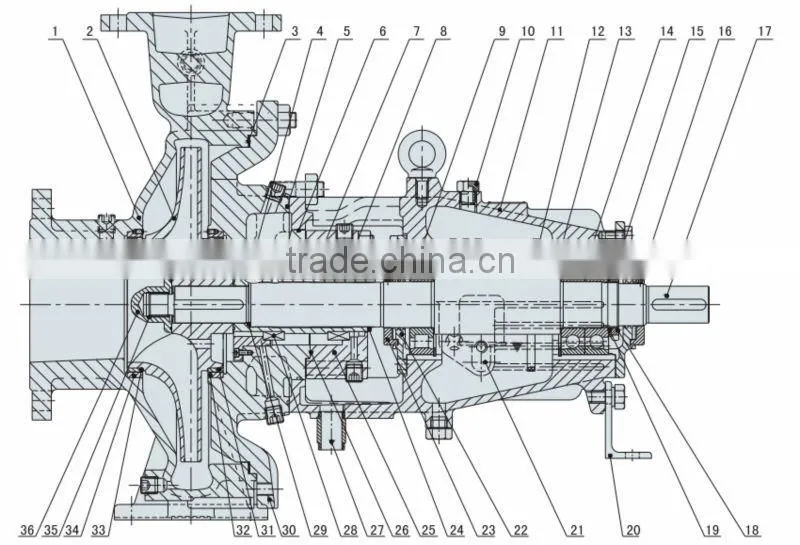

5. STRUCTURE DRAWING
6. CE CERTIFICATE

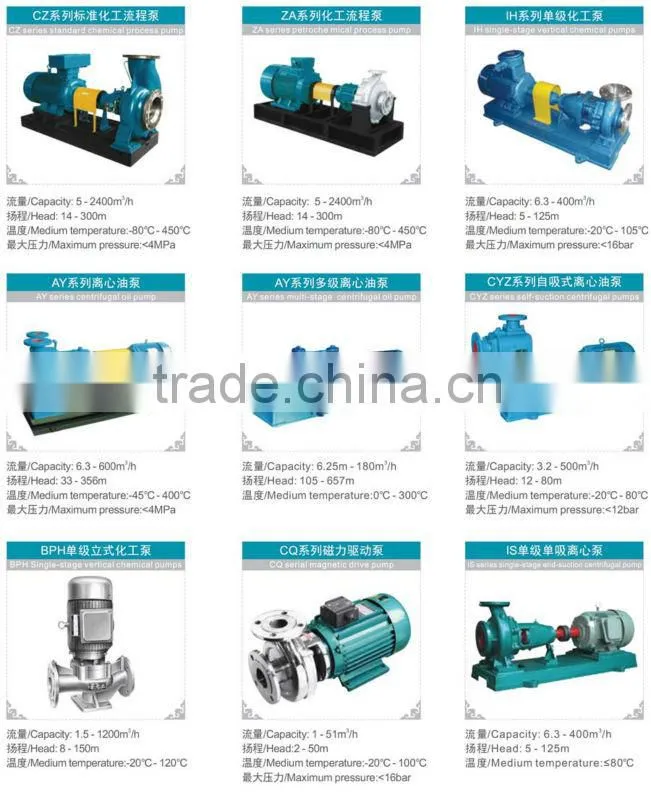

Other Pumps:
