BPO horizontal double suction split case pump
1. APPLICATION
1)For municipal water supply and drainage in industries and cities;
2)For Electric power plants, industrial water supply system,fire fighting system, drainage of heating system;
3)For Large-scaled water supply and sewerage works, etc.
4)Transport of clean water or liquid of which physical chemical properties similar as water.
2. FEATURES
1). Some of the BPO Large Single Stage Double Suction Split Volute Casing Centrifugal Pump adopting rolling bearing, grease or thin oil lubricaton. Some adoptng sliding bearing, think oil lubrication;
2). Declining exit edge of impeller and symmentrically and staggered arranged bilateral vanes, minimizig the plusing of pump duing operating;
3). Double volute design adopted, reducing radial force and making pump perfom more stable;
4). Design with international advanced hydrodynamics software and molding with 3 D software, ensuring high efficiency, stability and reliable running;
5) Full application of stuffing sealing and biset type stuffing gland, facilitatin check and maintenance. Mechanical seal can be customized as required.
Item |
Data |
Fluid Temp. |
-10°C---80°C |
Inlet Diameter |
1000---2000mm |
Operation pressure |
≤1.6Mpa |

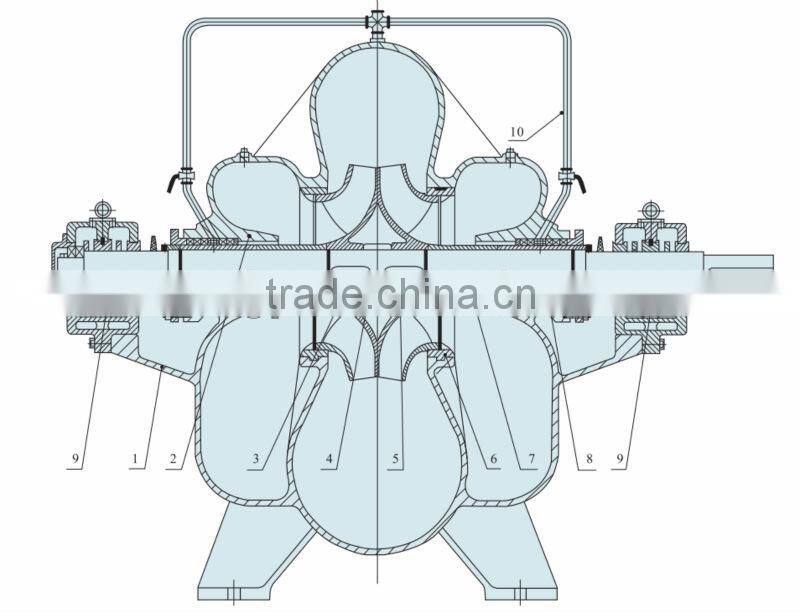

3.STRUCTURE DRAWING OF BIG SUCTION PUMP

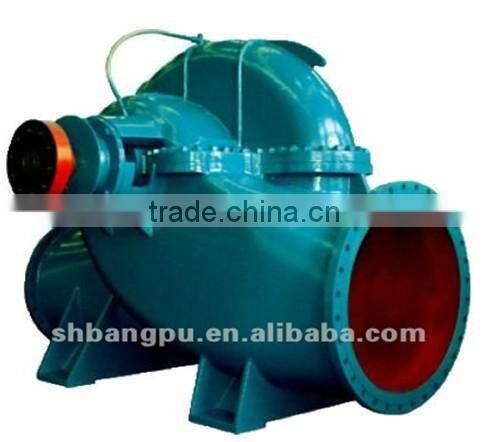

4.ATLAS OF THE STYLE
3 Certificate:
4 Our company culture is progress,unity,learning. Create top brand of international market.
5 Business parnter:
6 Used in Chemical industry, power plant, thermal power plant, food, urban water supply, irrigation ,so on
7 Research center and sales office building

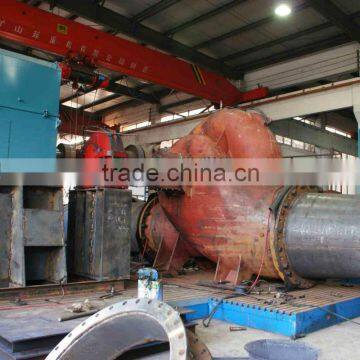

8 Workshop: Raw material Store, Cutting and welding, Metalworking,Assembly,Test, painting, package, delivery
9 Main products :
