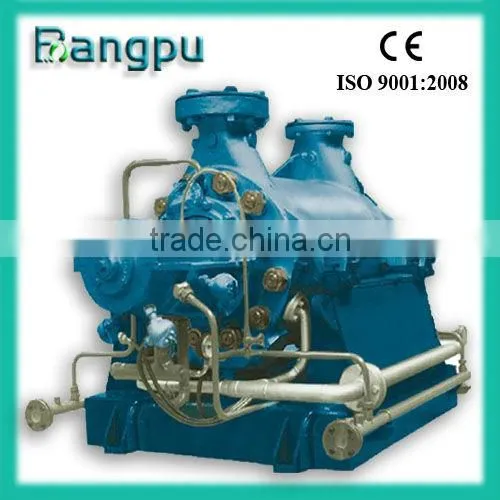

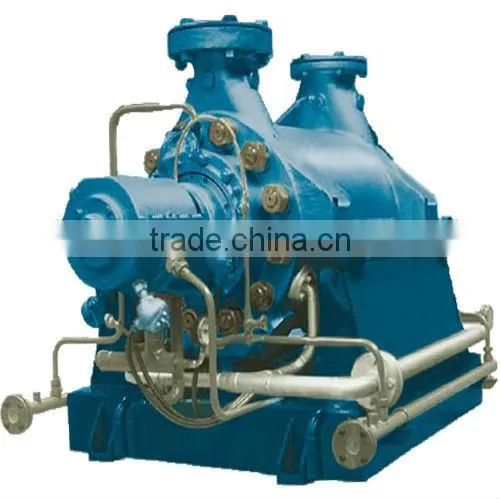

Boiler Feed Centrifugal Water Pump
1. MEDIUM REQUIREMENTS
Model DG Boiler Feed Water Pump is a horizontal multi-stage centrifugal pump and suitable for transporting pure water (with the contained foreign matters' content less than 1% and graininess less than 0.1mm) and other liquids of both physical and chemical natures similar to those of pure water.
2. PERFORMANCE RANGE
A. DG model middle and low pressure boiler water supply pump is applicable to transport medium with temperature of not higher than 105°C, and is also applicable for small boiler water supply or transporting medium similar to hot water.
Performance range
1) Flow: 3.75---185m3/h
2) Head:69---684m
3) Corollary power: 4.0---400kw
4) Inlet diameter: 40---150mm
B. DG model hypo-high-pressure boiler water supply pump is applicable to transport medium with temperature of not higher than 160°C, and is also applicable for small boiler water supply or transporting medium similar to hot water.
Performance range
1) Flow: 15---300 m3/h
2) Head:390---1050m
3) Corollary power: 75---1250kw
4) Inlet diameter: 65---200mm
2.STRUCTURE DRAWING
3.CE CERTIFICATE
