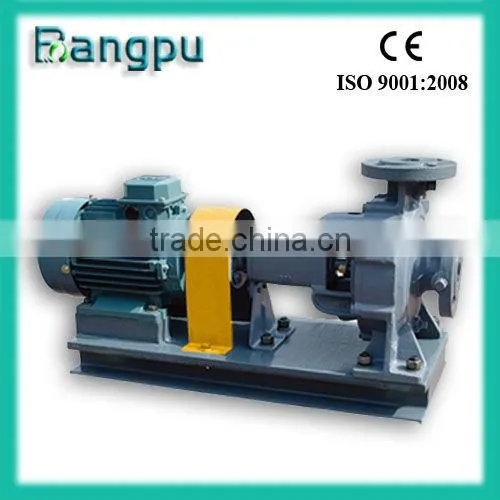

IS Single-stage End-suction Centrifugal Pump
<1>Outline :
IS series single-stage end-suction (axial intake) centrifugal pump is an energy-saving pump designed by teamwork in the whole nation, it is improved on a basis on model BA, B and
other single-stage water centrifugal pump. The advantages: its hydraulic capability is distributed reasonably, wide option for user, conveniently check and repair, the efficiency and throw
is up to advanced international level. This pump is suitable for industrial and city water supply, water drainage, and widely used for agricultural irrigation, transportation pure water or
other liquids whihc physical and chemical nature is similar to pure water, and the temperature should not be higher than 80 .
<2>Features:
1)Speed: 2900RPM and 1450RPM;
2)Suction: 50~200mm;
3)Flow/Capacity: 6.3~400m3/h;
4)Head: 5~125m.
<3>Application:
a)Municipal water supply and drainage
b)Water circulation of air conditioner
c)Agriculture hydraulic engineering,such as irrigation,drain flooded fields etc.
d)Industrial water supply system,fire fighting system,drainage of heating system.
e)Transport of clean water or liquid of which physical chemical properties similar as water
<4>Construction
1. IS series single-stage end-suction centrifugal pump is designed ac cording to the capability and size stipul ated i n the internati onal Standard ISO2858, it is composed of pump body,
pump cover, impeller, shaft, ring seal, sleeve and suspended bearing units.
2. The pump body and pump cover in IS series are separated from the back of impeller, that is to say in general, back open structure, whose advantages: convenient overhau l,when checking and repairing, the pump body intake pimp,discharge pipe and motor need not to move, just disassemly the middle connector of extended coupling to quit therotor
units for overhaul.
3. The pump shell (that is pump body and pump cover)forms the workroom of pump. Impeller, shaft and rolling bearing are the rotors for the pump. Suspended bearing units support the rotors in the pump. The rolling bearing stands the radial load and axial force.
4. In order to balance the axial force of the pump, most of the pumps are designed with sealing rings at the front and back of impellers and a balance hole on the rear impeller cap plate. The reverse of impeller is not designed with sealing rings or balance holes if pump axial force is not powerful.
5. The axial sealing ring of the pump is composed of packing gland, packing rings and packing to avoid air admission or severe water leakage. For the impeller with balance hole, the empty chamber with soft packing is straight through with the impeller inlet. If the liquid in the impeller inlet is in vacuum state, the air will enter along the surface of muff easily. Therefore , the packing chamber is fitted with packing ring,which has the seal function when pressure water inside the
chamber is led to it through a small hole in the pum p cover.For the impeller without balance hole, the packing ring may be neglected in virtue of no existence of air leakage beca use
the impelle r back hydraulic pressure is larger than atmosphere one.
6. To avoid abrasion of shaft, the part where the shaft runs through packing chamber is fitte d with protective muff.O ring is fitted between muff and shaft to protect aga inst air entering or water leaking along the matching surface.
7. The pump is connected to motor with extending fle xible coupling. The pump turns clockwise when you look from the driving end.

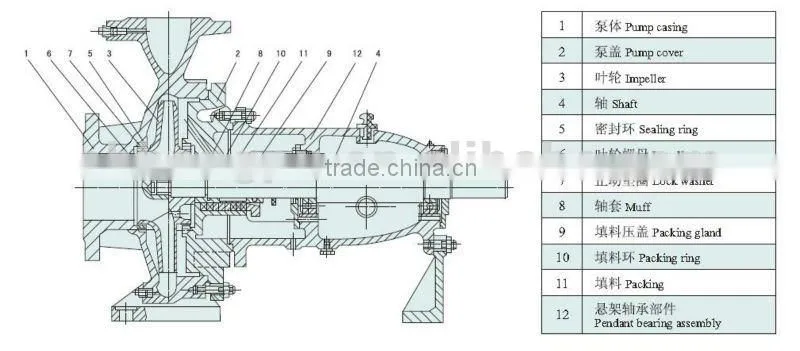

Structure of pump:

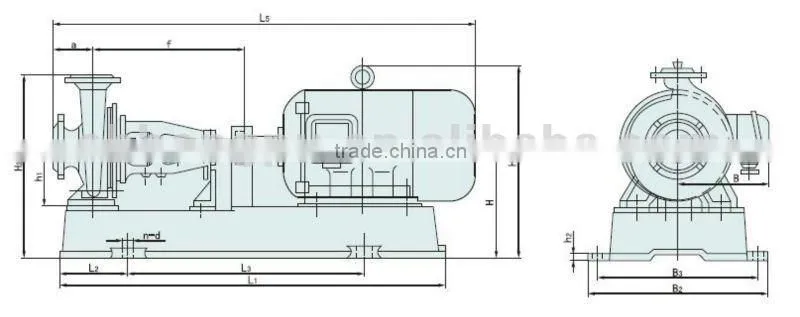

Out-form and installation dimension drawing:
Other Advantage pump:
AFP submersible sewage pump
AY series centrifugal oil pump
BPL series single-stage singel-suction vertical centrifugal pump
BPW series single-stage single-suction horizontal centrifugal pump
BPX series low-carbon composite centrifugal pump
D series multi-stage sectional centrifugal pump
GDL series multi-stage pipline centrifugal pump
LP(T) series vertical drainage pump
QZ,QH series axial-flow pump
Z(H)LB series vertical axial-(mixed)-flow pump
WFY non-negative pressure water-supply equipment
