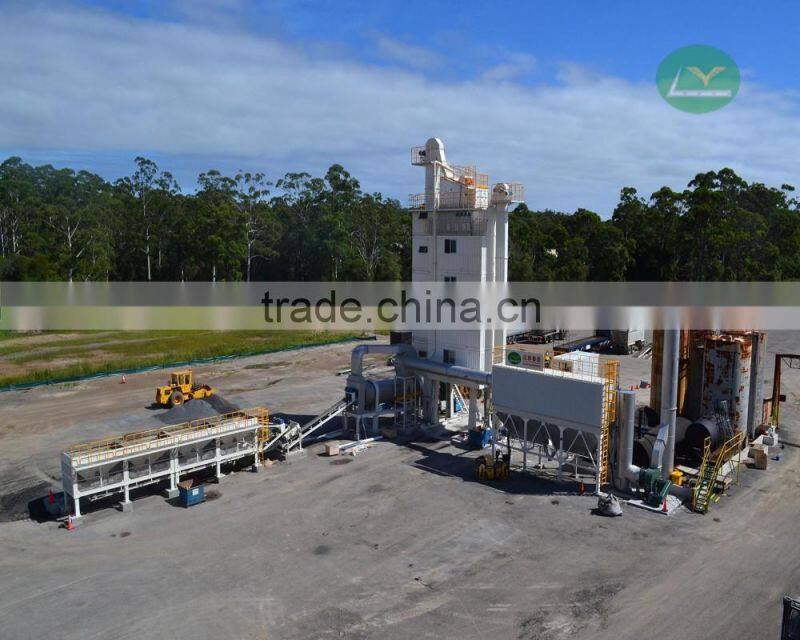

Fully-closed Environmental Protection Asphalt Plant LB1000 With CE ISO GOST

Fully-closed  Environmental Protection asphalt plant LB1000 with CE ISO GOST

Product Description

Fully-closed LB series Asphalt Mixing Plant is one of the most popular products of Liaoyuan for the high efficiency and excellent quality. Fully-closed type is much more popular among clients where strict environmental regulations are required.

Technical Parameters of Fully-closed Asphalt Mixing Plant (LB Series):

Fully-closed Asphalt Mixing Plant mainly including cold aggregate supply system, Drying drum .Burning system, Dust collection system, Vibrating screen, Mixing system, Electric control system

1.Cold Aggregate Supply System

Bin volume and number is customizable, Separated structure design significantly reduces dimensions for shipping and ensures a high capacity.
Two independent cold feeders and modular design, transport expediently.
Seamless ring belt, high reliability and long life.
Frequency convertor controlled SIEMENS motor, infinite variable speed adjustment, more accurate and energy saving.

2.Drying Drum

SIEMENS motors, hard-teeth reduction gear, friction driving, drum rotating stably.
Optimized lift blade design, make sure heating equably and high energy using ratio.
With 50mm insulating layer and stainless steel skin, avoid heat be lost.

3.Burner

Italy EBICO oil burner imported with original packing, high burning efficiency, diesel, diesel/heavy oil dual purpose or gas as fuel is optional.
With automatic flame failure protection devices for emergency.

4.Dust Collection System

Two level dust collection system (volute casing collector + bag house collector), with high and low temperature protection device for the system security.
Bag house collector using USA Dupont NEMEX bags, heat resisting and long life.

5.Mixing Tower

Both aggregate and filler elevators are equipped with a double ring chain bucket, which is more reliable and convenient for maintenance.
Twin shaft compulsory asphalt concrete mixer (the mixing arm is cross arranged with changeable gridded mixing blade), high mixing efficiency and long life.
SIEMENS motors with hard-teeth reduction gear, most stably and high performance.
Bitumen is sprayed into mixer through a special designed spray bar with high pressure to reduce feeding time and increase mixing uniformity.
Totally enclosed type circular vibration screen, modular design, vibration motor driving, low maintenance and long life.
Double layer much bigger hot aggregate storage hopper can effectively guarantee the continuity of the supply of hot aggregate; with 50mm insulating layer to avoid heat be lost.

6.Bitumen Supply System

Volume and number of bitumen tanks is customizable according to user requirement.
Heat transfer oil heating type, heating equably.

7.Filler Supply System

The standard stacked filler silo design is more convenient for connection with main tower and requires less space for installation.
Volume and number of filler silos is customizable.

8.Control System

Automatic/manual control system, with fault self-diagnosis process, operate easily and safely.
SIEMENS PLC electrical control system, reliability is high.
Fully graphic Multilanguage control interface is easy and convenient for different operators.

Packaging & Shipping

1. Standard package suit for international sea transportation, train transportation or truck transportation;

2. the plant needs 13 sets of 40HQ containers by shipping.

Our Aftersales Services

Our service including:

18 months warranty; Erecting the plant; Commissioning the plant; Training the operator; Providing of spare parts; whole life’s technical consultant of the plant.

Company Information

About us:

Liaoyuan Company are one of China Top-ranking asphalt plant manufacturers which is started from 1992, until now we have sold more than 500 sets of asphalt plants(capacity from 20t/h to 400t/h) distributed in China and overseas markets. such as Poland, Rumania, Russia, Australia, New Zealand, Canada, Panama, Ecuador, Peru, Chile, Algeria, Kenya, South Africa, Zimbabwe, Philippines, Indonesia, Kazakhstan, Mongolia, Egypt, etc. and our products has awarded the CE,Gost-R and ISO Quality Certificate.

The main products scope of Liaoyuan includes:

1. Stable type hot mix asphalt plant: 40-400ton per hour;

2. Mobile type asphalt drum plant: 20-80ton per hour;

3. Mobile stabilized soil mixing plant: 200-800 ton per hour.

V. PICTURES

More information please visit our factory in Nanyang, Henan Province, China or learn about us on the website: www.
