Drop Bottom Bin
1.Material: Steel
2.Capacity:1500kg
3.Volume:0.8-1.1cube

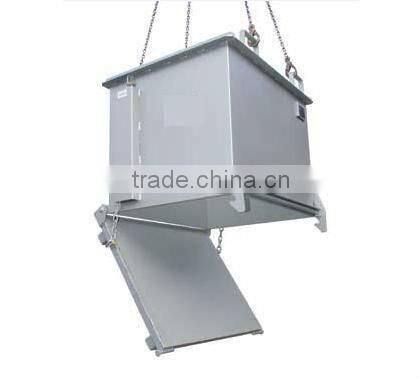

Type DB Drop Bottom Bin
Feature
The DB Drop Bottom Bin is a heavy duty unit manufactured from 3mm plate and is reinforced to handle all types of solid waste product.
Able to be transported by either forklift or crane, emptying is carried out by pulling the draw rope handle which
allows the floor to drop open from one side, allowing complete emptying. Shock absorbing system removes all impact from forklift or crane during emptying. Enamel painted finish.
• Fork Pocket Size: 160 mm x 65 mm
• Fork Pocket Centres: 684 mm
• Safe Working Load: 1000 kg
Options Available:
• Cast Iron or Rubber Wheels
Specification
Type |
Capacity (cu.m) |
Width (mm) |
Length (mm) |
Height (mm) |
Unit Weight (mm) |
DB 800 |
0.8 |
1200 |
1025 |
1045 |
225 |
DB 1100 |
1.1 |
1200 |
1025 |
1345 |
250 |
Application
