Home > Industrial Equipment & Components > Bearing > Deep Groove Ball Bearing > 6816 Open Bearing 80x100x10 Ball Bearings

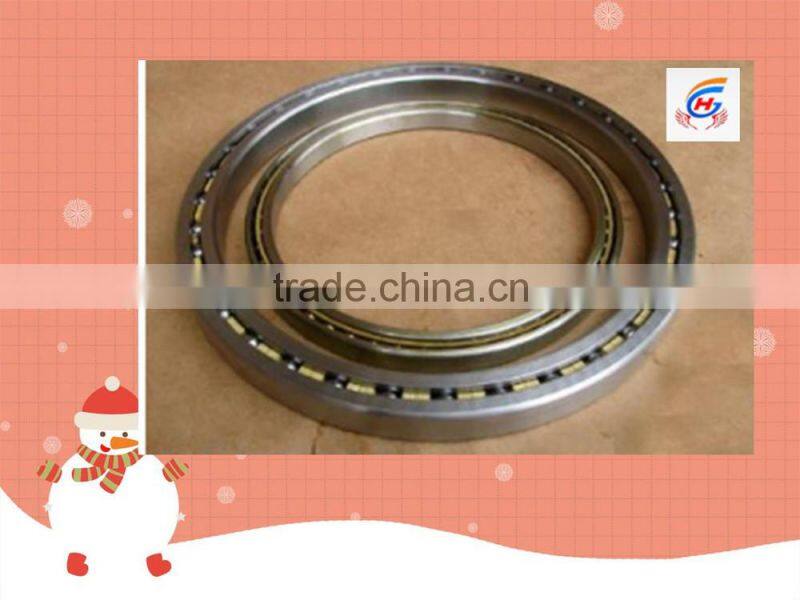

6816 Open Bearing 80x100x10 Ball Bearings

6816 Open Bearing 80x100x10 Ball Bearings thumbnail-1
6816 Open Bearing 80x100x10 Ball Bearings photo-1
US$ 0.3 - 7 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Brand Name:
HRY
Bore Size:
80,
Outside Diameter:
100,
Contact Supplier Request Quote Chat Now
Wuxi Hangruiyu Bearing Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HRY
Bore Size 80,
Outside Diameter 100,
Model Number 6816 Open Bearing
Precision Rating P0,P6,P5
Seals Type 2RS, ZZ, RS, Z, Open,Teflon Sealed,Rubber Seals,2 Metal Shield
Number of Row Single Row
Place of Origin Jiangsu, China

Specifications

6816 Open Bearing 80x100x10 Ball Bearings
1. High accuracy
2. Low noise
3. Oil Preservative
4.be customized

6816 Open Bearing 80x100x10 Ball Bearings



  • 6816 Sealed Ball Bearing, Material is Chrome Steel, 6816 has ABEC 1 quality, 6816 bearing is Oil preserved, inner diameter is 80mm, outer diameter is 100mm and width is 10mm.

    • Item: 6816 Ball Bearing
    • Type: Deep groove Radial Ball Bearing
    • Closures: Open
    • Quality: ABEC 1
    • Lubrication: Oil
    • Cage: Chrome Steel
    • Material: Chrome Steel
    • Dimensions: 80mm x 100mm x10mm/Metric
    • ID (inner diameter)/Bore: 80mm
    • OD (outer diameter): 100mm
    • Width/Height/thickness: 10mm
    • Size: 80 x 100 x 10 mm
    • Quantity: One Bearing
    • Dynamic load rating Cr: 12,700 N
    • Static load rating Cor: 13,300 N
    • Limiting Speed:
      • Grease Lubrication: 6,000 RPM
      • Oil Lubrication: 7,100 RPM
           6816 Open Bearing 80x100x10 Ball Bearings

Specifications of some thin section ball bearings



     KCseries Weight(kg) Interchang
Dimension(inch) Basic Cap.N KAYDON
d D Cor Cr
6.000 6.750 13650 5070 0.295 KC060CP0
6.500 7.250 14710 5330 0.312 KC065CP0
7.000 7.750 15780 5560 0.340 KC070CP0
7.500 8.250 16850 5820 0.360 KC075CP0
8.000 8.750 17910 6050 0.387 KC080CP0
9.000 9.750 20050 6530 0.450 KC090CP0
10.000 10.750 22180 6980 0.481 KC100CP0
11.000 11.760 24310 7420 0.526 KC110CP0
12.000 12.750 30720 8670 0.567 KC120CP0
14.000 14.750 30720 8670 0.689 KC140CP0
16.000 16.750 35030 9470 0.785 KC160CP0
18.000 18.750 39290 10220 0.880 KC180CP0
20.000 20.750 43560 10980 0.980 KC200CP0






Company Information



We are a Energetic Bearing company with more than 10 years experience in Shandong factory .

We mainly deal in : Deep groove ball bearing , Angular contact ball bearing , Taper roller bearing , Cylindrical roller bearing , Pillow Block bearing ,  Ceremic Ball bearing  , OEMService also welcomed .



Customers Spoke highly to our high quality with competitive price , and good service . We always stick to the principle : “Treat customers wholeheartly” and making progress .
