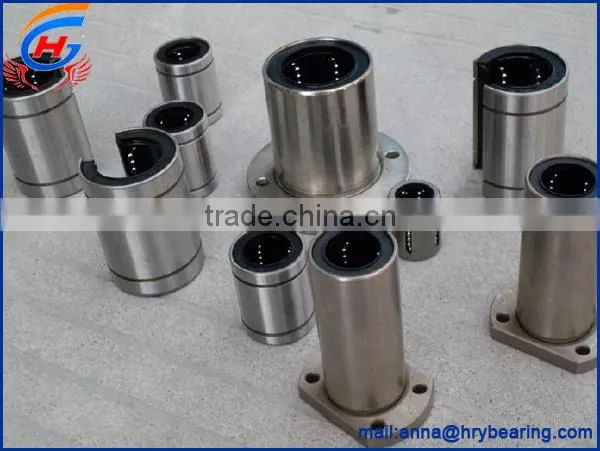

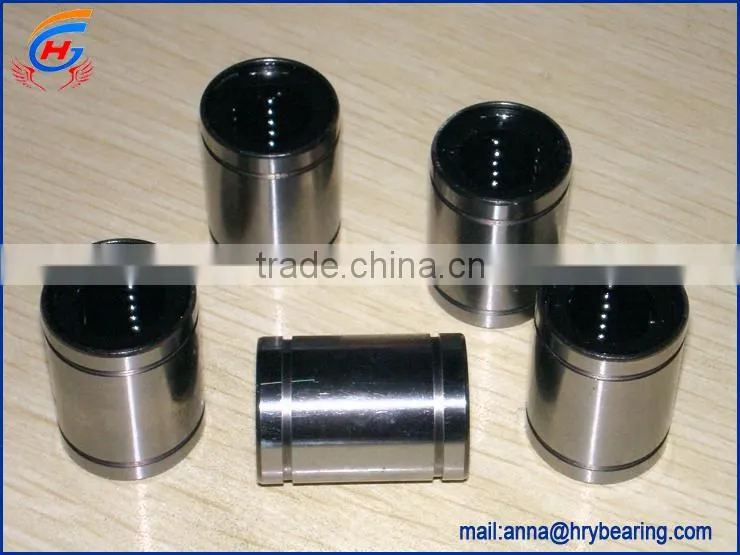

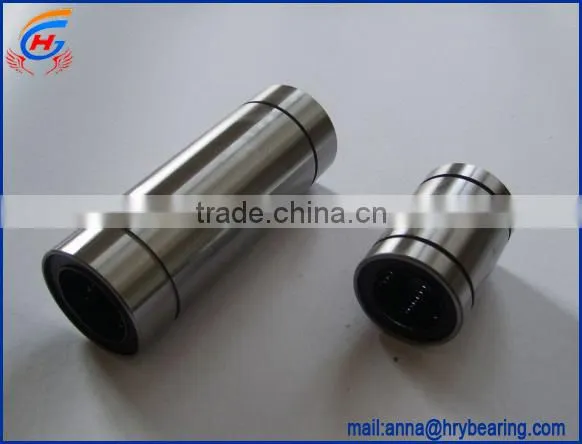

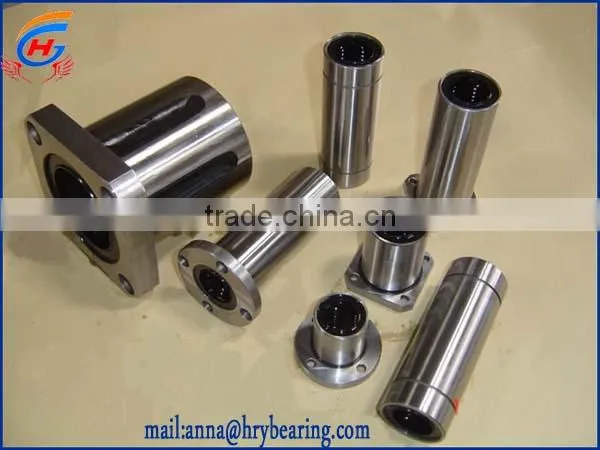

Help CenterCustom Made Stainless Steel LM60UU Linear Ball Bearing
Related Products
-
Linear Motion Bearing /LM16UU Linear BearingUS$ 0.1 - 100MOQ: 50 Pieces -
Flange LMEK12UU Linear Motion BearingUS$ 0.1 - 100MOQ: 50 Pieces
-
LMF40LUU Flange Long Linear Ball Bearing For 40mm Linear Guide Rail Rod Round Shaft Cnc BearingUS$ 0.1 - 100MOQ: 10 Sets
-
12mm x 21mm x 57mm Carbon Steel Linear Motion Ball Bearings LM12LUUUS$ 0.1 - 100MOQ: 10 Sets
-
LM6LUU Cylinder Shaped Carbon Steel Linear Motion Ball Bearing 6x12x35mmUS$ 0.1 - 100MOQ: 10 Sets
Specifications
Linear Bearings1.Material:Steel
2.Customized Flanged Linear Bearings
2.Nonstandard Mechanical Bearing
4.OEM Ser
1).bearing steel material (GCr15) HRY bearing
2)High-speed rotation,low-friction torque,low vibration and low noise.
3)Brand: HRY
4)Material:chrome steel GCR15 and high carbon steel GCR11
5)Packing:industrial box and single packing.
1.Minimum Order Quantity: 10 set
2.Delivery Time: 3-5 days for ready goods
3.Payment Terms: T/T
4.Precision level: P0,P2,P4,P5,P6
5.Material: GCr15, GCr15SiMn, G20Cr2Ni4A.bearing steel,carbon steel,chrome steel,iron ( AISI52100, AISI440C, AISI304, AISI316 )
6.Delivery : DHL,FEDEX ,EMX,AIR,WATERWAY,
7.Original Brand: ,NTN,NSK,TOYO .
8.Packaging : standard export packing
9: Can work in the high or low temperature environment within the scope of -253°C--350°Ctemperature usage, Can bear the corrosive and work in corrosion medium such as sea water, river aqua, distilled water, spare nitric acid, maritime climate, steam
| Model | NO.of row | Inner size | Outer size | Length | Snapring groove | ||
| dr | D | L | B | D1 | W | ||
| LM35UU | 6 | 3 5 | 52 | 70 | 49.5 | 49 | 2.1 |
| LM40UU | 6 | 4 0 | 60 | 80 | 60.5 | 57 | 2.1 |
| LM50UU | 6 | 5 0 | 80 | 100 | 74 | 76.5 | 2.6 |
| LM60UU | 6 | 6 0 | 90 | 110 | 85 | 86.5 | 3.15 |
| LME8UU | 4 | 8 | 16 | 25 | 16.5 | 15.2 | 1.1 |
| Product name | linear Motion bearing series |
| Brand name | HRY |
| Material | GCR15 |
| Model | LM...UU |
| Quality | ISO9001:2008 Standard |
| Service | we will serve you ASAP when we see you message. |
| Deliver time | According to the quantity,as sample order usually 3-5days,bulk order 10-15 days |
| package | As small order like sample order, we will sent by the international express, like DHL,TNT,As large order, we always sent by sea, packing by wooden case. |
| loading port | Wuxi,shanghai |
| payment terms | L/C, T/T, western union , paypal |
quality control
Company Factory Display
