Help CenterSplice Terminal Crimp
Negotiable
MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Liaoning, China
Brand Name:
UPM
Model Number:
WR-01
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Equivalent to Tyco Raychem Heat Shrink TubeUS$ 0.29 - 29MOQ: 100 Meters -
S3 (n) Wire Protection SleeveUS$ 0.29 - 29MOQ: 100 Meters
-
Air Conditioner TubingNegotiableMOQ: 1000 Meters
-
Telecommunication Heat Shrinable TubingUS$ 0.55 - 7.99MOQ: 200 Meters
-
Flat Rim Heat Shrink Rain ShedUS$ 1.05 - 1.99MOQ: 100 Pieces
Place of Origin
Liaoning, China
Brand Name
UPM
Model Number
WR-01
Type
Other, Insulation Sleeving
Specifications
wire joints and splicesTransparent outer layer PVDF and PE materials
Refluxed solder ring
CE Certified
Auto wire terminal

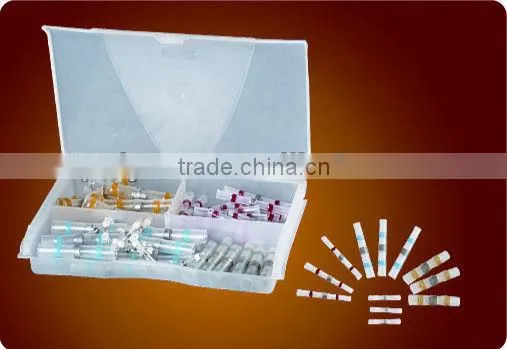

WR-01 Discrete Solder Sleeve Wire Terminators (Shield Terminators)
Voltage 1kV Ideal for wire termination
PE or PVDF as the out layer with the tin ring inner are all environmental friendly.
Applications
Terminating wires to component terminals, such as motor tabs, connector pins, and switch terminals
Features/Benefits
Transparent outer layer, made from PE or PVDF. Provide encapsulation, insulation and strain relief
Refluxed solder ring, offers controlled soldering process
Thermoplastic inner insert at each end of the terminator, sealing against water and moisture
Easy to use, and minimize damages to the termination
Clear sleeve, make it easy to detect wire splice
Temperature Range
Operating Temperature : -55 ~ 125 ºC
Shrink Temperature : 150 ~ 200 ºC
Colour
Outer layer available in transparent only
Inner thermoplastic insert available in Red, Blue, Yellow, Transparent
Certification
CE Certified
Product Code Cross References
Raychem/Tyco : CWT/D110
Technical Details
Test Item |
Test Method |
Typical Value |
Dielectric voltage withstand |
RT-1404 |
2.0kV |
Voltage rating |
RT-1404 |
600V |
Voltage drop |
RT-1404 |
Less than 2.0mV |
Copper corrosion |
UL224/ASTM D2671 |
Non-corrosive |
Product Selection
| Product Code | Length (mm) | Inner Diameter (mm) |
UPMWR010017CR005 |
25 |
1.7 |
UPMWR010027RD005 |
40 |
2.7 |
UPMWR010045BL005 |
40 |
4.5 |
UPMWR010060YL005 |
50 |
6.0 |
