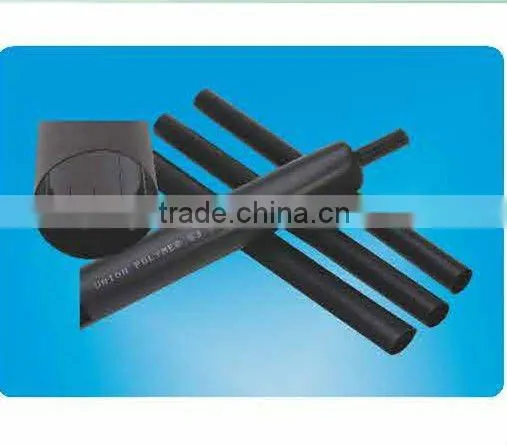

S3 (n) Wire Protection Sleeve

S3 (n) Wire Protection Sleeve thumbnail-1
S3 (n) Wire Protection Sleeve photo-1
US$ 0.29 - 29 MOQ: 100 Meters
Key Specifications
Get Latest Price
Place of Origin:
Liaoning, China
Brand Name:
justup
Model Number:
S3(n)
Contact Supplier Request Quote Chat Now
Union Polymer Material Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Liaoning, China
Brand Name justup
Model Number S3(n)

Specifications

1.Voltage Class1k~15kV
2. ideal for mechanical and environmental protection cable joint and gas pipeline

Wire protection sleeve

Ideal for mechanical and environmental protection of CATV cable, joint and gas pipeline



Medium wall Heat Shrinkable tubing with halogen-free radiation cross-linked polyolefin outer layer and heat melt adhesive inner layer.



Applications:

· Protection of CATV cable/cable joints, gas pipeline & low voltage electrical wiring



Features/Benefits:

·Halogen free, environmental friendly

·Non-flame retardant

·Adhesive-lined, waterproof and seal against moisture

·High resistance to abrasion and impact



Temperature Range:

·Operating Temperature         : -55 ºC ~ 90 ºC

·Shrink Temperature              : 125 ºC



Colour:Black



Product Code Cross References

Raychem                : MWTM

DSG Canusa           : CFW / CFTV

LG                          : LG-PMWT



Technical Details

Test item

Test method

Typical value

Tensile Strength

ASTM D2671

12MPa

Elongation

ASTM D2671

400%

Specific Gravity

ASTM D792

1.2

Elongation after Heat Aging

(168 hrs at 150)

ASTM D2671

350%

Tensile strength after heat aging

ASTM D2671

12MPa

Low Temperature Flexibility

 (4 hrs at -55)

ASTM D2671

No cracking

Hardness (Shore D)

ASTM D2240

60D

Heat shock (4hrs at 200)

ASTM D2671

No cracking or flowing

Adhesive Softening Point

ASTM-E28

85

Adhesive Peel Strength to P.E.

ASTM D1000

110N/25mm

Adhesive Peel Strength to Aluminum

ASTM D1000

80N/25mm

Dielectric Strength

ASTM D2671

20kV/mm

Volume Resistivity

ASTM D257

1014Ω.cm

Copper Corrosion

ASTM D2671

No Corrosion

Water Absorption

ASTM D570

0.5%

Fungus Resistance

ASTM G21

No Growth




Product Selection



Product Code

Min. wall thickness

after free recovery(mm)

Standard Length Per Piece

(m)

S3(N) -φ8/2

1.7

1.22

S3(N) -φ9/3

1.7

1.22

S3(N) -φ12/4

2.0

1.22

S3(N) -φ16/5

2.2

1.22

S3(N) -φ19/6

2.5

1.22

S3(N) -φ28/9

2.5

1.22

S3(N) -φ33/10

2.5

1.22

S3(N) -φ40/12

2.5

1.22

S3(N) -φ50/16

2.7

1.22

S3(N) -φ65/19

2.8

1.22

S3(N) -φ75/22

3.0

1.22

S3(N) -φ85/25

3.0

1.22

S3(N) -φ95/25

3.0

1.22

S3(N) -φ100/30

3.0

1.22

S3(N) -φ115/34

3.0

1.22

S3(N) -φ125/40

3.0

1.22

S3(N) -φ140/42

3.0

1.22

S3(N) -φ150/45

3.0

1.22

S3(N) -φ160/50

3.0

1.22

S3(N) -φ180/60

3.0

1.22

S3(N) -φ210/70

3.0

1.22

S3(N) -φ225/75

3.0

1.22

S3(N) -φ260/85

3.0

1.22



Factroy View

S3 (n) Wire protection sleeve

Test equipment



S3 (n) Wire protection sleeve

S3 (n) Wire protection sleeve

Major custoers

S3 (n) Wire protection sleeve
