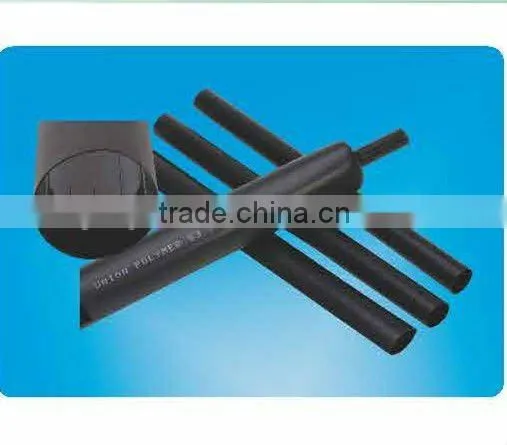

CATV telecommunication heat shrinkable sleeve
Negotiable
/ Meter
100 Meters(Min.Order)
- 100000 Meter / Meters per Month
- Dalian
- T/T Credit Card
You May Like
Product Details
| Place of Origin: | Liaoning, China | Brand Name: | UPM | Model Number: | S3TV |
| Type: | Insulation Sleeving | Material: | PE | Application: | Low Voltage |
Product Description
Specifications
tycoShrink ratio of 3 to 1
Absolutely waterproof seal
Raychem/Tyco :TCS2
S3TV Medium Wall Halogen-Free Heat Shrinkable Tubing for CATV industry
Developed to meet the specific needs of the CATV Industry
Application
Heat Shrinkable Tubing and adhesive liner combination that established the CATV industry standard for splice and connector protection
Features
Shrink ratio of 3 to 1
An absolutely waterproof seal
Environmentally seals and mechanically protects
7 standard sizes
Adhesive flows smoothly and will not drip
Selective strip ability to meet CATV industry needs
Fast and simple installation
Minimal heat required to produce error free installation without splitting
Heat indicative paint ensures integrity of seal
Installation Tests
When adequate heat is applied, heat reactive stripes change color: green to black
When color has changed, tubing is fully recovered, sealant has achieved balanced flow
Adhesive flows without dripping
No cracks or splitting
No surface charring during installation
Temperature Range
operating temperature:-55 ~ 110°C
Shrink temperature: 120°C
Color Black
Product Code Cross References
Raychem/Tyco :TCS2
DSG Canusa :CFTV
3M :CCT
LG :LG-CATV
Technical Details
| Test item | Test method | Typical value |
| Tensile Strength | ASTM D2671 | 12Mpa |
| Elongation | ASTM D2671 | 400% |
| Specific Gravity | ASTM D792 | 1.15 |
| Elongation after Heat Aging(168 hrs at 150) | ASTM D2671 | 350% |
| Tensile strength after heat aging | ASTM D2671 | 12Mpa |
| Low Temperature Flexibility(4 hrs at -55) | ASTM D2671 | No cracking |
| Hardness (Shore D) | ASTM D2240 | 60D |
| Heat shock (4hrs at 200) | ASTM D2671 | No cracking or flowing |
| Adhesive Softening Point | ASTM-E28 | 85 |
| Adhesive Peel Strength to P.E. | ASTM D1000 | 110N/25mm |
| Adhesive Peel Strength to Aluminum | ASTM D1000 | 80N/25mm |
| Dielectric Strength | ASTM D2671 | 20kV/mm |
| Volume Resistivity | ASTM D257 | 1014Ω.cm |
| Copper Corrosion | ASTM D2671 | No Corrosion |
| Water Absorption | ASTM D570 | 0.5% |
| Fungus Resistance | ASTM G21 | No Growth |
Product Selection
| Product Code | IDbefore shrink(mm) | I Dafter shrink(mm) | Min.Wall thickness After shrink(mm) | Normal length/pc(meter) |
| S3TV 0400(12/4) | 12 | 4 | 2.0 | 1.22 |
| S3TV 0750(19/6) | 19 | 6 | 2.5 | 1.22 |
| S3TV 1100(28/9) | 28 | 9 | 2.5 | 1.22 |
| S3TV 1300(33/10) | 33 | 11 | 2.5 | 1.22 |
| S3TV 1500(38/12) | 38 | 12 | 2.5 | 1.22 |
| S3TV 1700(43/12) | 43 | 12 | 2.5 | 1.22 |
| S3TV 2050(55/16) | 55 | 16 | 2.7 | 1.22 |
| S3TV 2750(75/22) | 75 | 22 | 3.0 | 1.22 |
ID: Internal Diameter
