Fiber Optic Dome Clousre Heat Shrinkable Tube

US$ 0.4 - 2.5 MOQ: 1 Piece

Key Specifications

Place of Origin:

Liaoning, China

Brand Name:

UPM

Model Number:

S3PS

Union Polymer Material Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Liaoning, China

Brand Name UPM

Model Number S3PS

Specifications

1.Innovative locking mechanism,hermetically sealed
2.Excellent polyamide adhesive
3.Excellent UV,corrosion resistance

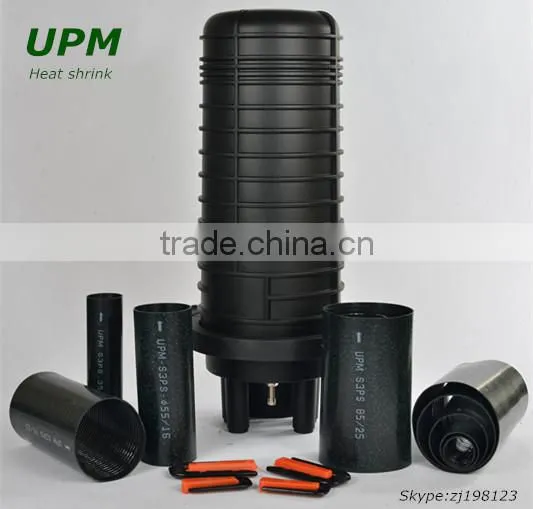

Heat shrinakble tube for fiber optic dome colosure

1.Innovative locking mechanism,hermetically sealed
2.Excellent polyamide adhesive
3.Excellent UV,corrosion resistance

Technical Details

Test Item	Test Method	Results
Sealing	Temperature: 23 ± 3oC; Internal air pressure: 100 ± 2 kPa Duration: 24 hrs, or immersed in water for 15 mins	Passed
Temperature Cycling	10 temperature cycles from -40oC to 60oC; internal air pressure: 60kPa	No leaking
Temperature Cycling	Duration: 2 hrs at each temperature point	No leaking
Thermal Aging	Temperature: 60 ± 2oC; internal air pressure: 70 ± 2 kPa	Passed
Thermal Aging	Duration: 168 hrs	Passed
Elongation	Pulling with D/45 x 1500 N, internal air pressure: 60 ± 2 kPa	No leaking
Elongation	Duration: 24 hrs	No leaking
Cable bending	Subjecting the cable to bend 45 degree, the bending radius: 150mm	No damage
Cable bending	Maximum bending force loading: 500N, internal air pressure: 60 ± 2 kPa	No leaking
Cable Torsion	Subjecting the cable to 90 degree torsion loading, maximum torque 50Nm	No damage
Cable Torsion	Torsion distance: 250mm, internal air pressure: 60 ± 2 kPa	No leaking
Chemical	5% HCl, NaOH, NaCl; internal air pressure: 60 ± 2 kPa;	No corrosion
Resistance	Duration: 24 hrs	No leaking
Chemical Attack	70% gasoline and 30% methylbenzene	Passed

Product Selection

Product Code	Internal Diameter Before Shrink/After Shrink		Out Layer Wall Thickness After Shrink	Standard Length
Product Code	(mm)	(inch)	(mm)	(mm)	(inch)
S3PS 28/6	28/6	1.1/0.2	2.90 ± 0.10	150	6
S3PS 30/6	30/6	1.2/0.2	2.90 ± 0.10	150	6
S3PS 33/8	33/8	1.3/0.3	2.90 ± 0.10	150	6
S3PS 36/9	36/9	1.4/0.4	3.30 ± 0.15	150	6
S3PS 43/9	43/9	1.7/0.4	4.50 ± 0.15	150	6
S3PS 55/16	55/16	2.2/0.6	3.60 ± 0.15	150	6
S3PS 75/22	75/22	3.0/0.9	3.60 ± 0.15	150	6
S3PS 105/30	105/30	4.1/1.2	3.70 ± 0.15	150	6
