ERIT Tri-layer Heat Shrinkable Tubing
US$ 10 - 200
MOQ: 100 Meters
Key Specifications
Get Latest Price
Place of Origin:
Liaoning, China
Brand Name:
UPM
Model Number:
C106
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Voltage Yellow Color Bus Bar Protection TubeNegotiableMOQ: 100 Meters -
One Hole Heat Shrink UV Resistance Rain ShedUS$ 1.05 - 1.99MOQ: 100 Pieces
-
T1 Compound Insulation Heat Shrinkable TapeUS$ 0.1 - 99MOQ: 50 Meters
-
4 Cores Electrical Insulation Breakout BootUS$ 0.99 - 5.99MOQ: 100 Pieces
-
High Voltage Bus Bar Protection TubeNegotiableMOQ: 100 Meters
Place of Origin
Liaoning, China
Brand Name
UPM
Model Number
C106
Type
Heat Shrinkable
Material
Other, Polyolefin, Polyolefin
Specifications

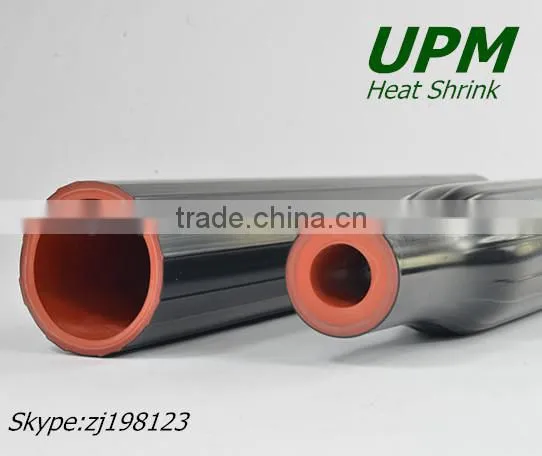

C106 Semi-Conductive/Insulation/Elastomeric insulation Tri-layer Heat Shrinkable tubingVoltage Class 12-35kV
C106 Semi-Conductive/Insulation/Elastomeric insulation Tri-layer Heat Shrinkable tubing
| Cross-linked heavy wall tubing | Operating temperature: -55~105°C | |||
| Tri-layer design with high recovery forces | Shrink temperature: 135-150°C | |||
| Co-Extrusion technology | Voltage class: 10-35 KV | |||
| Eliminates partial discharge | Halogen free ,RoHs Compliant | |||
| Enable the joint to follow the thermally induced dimensional changes of cable insulation. | ||||
| Dimensions | ||||
| Reference | As supplied(mm) | After recovered(mm) | Standard length | |
| UPM C106 | ID min. | ID max. | WT nom. | m |
| 35/13 | 35 | 13 | 11.0 | 1 or 1.22 |
| 45/17 | 45 | 17 | 12.0 | 1 or 1.22 |
| 50/21 | 50 | 21 | 12.7 | 1 or 1.22 |
| 63/26 | 63 | 26 | 13.5 | 1 or 1.22 |
| 75/34 | 75 | 34 | 13.5 | 1 or 1.22 |
| 85/34 | 85 | 34 | 13.5 | 1 or 1.22 |
| 95/42 | 95 | 42 | 14.2 | 1 or 1.22 |
| 110/52 | 110 | 52 | 14.2 | 1 or 1.22 |
| 125/62 | 125 | 62 | 15.0 | 1 or 1.22 |
| ID=Internal Diameter | WT=wall thickness | |||
