High Voltage Yellow Color Bus Bar Protection Tube

High Voltage Yellow Color Bus Bar Protection Tube thumbnail-1
High Voltage Yellow Color Bus Bar Protection Tube photo-1
Negotiable MOQ: 100 Meters (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Brand Name:
Justup
Model Number:
S1-35
Contact Supplier Request Quote Chat Now
Union Polymer Material Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Justup
Model Number S1-35
Type Insulation Sleeving
Material PE
Application High Voltage
Rated Voltage 36kV
Tensile Strength 14MPa

Specifications

24-36kV

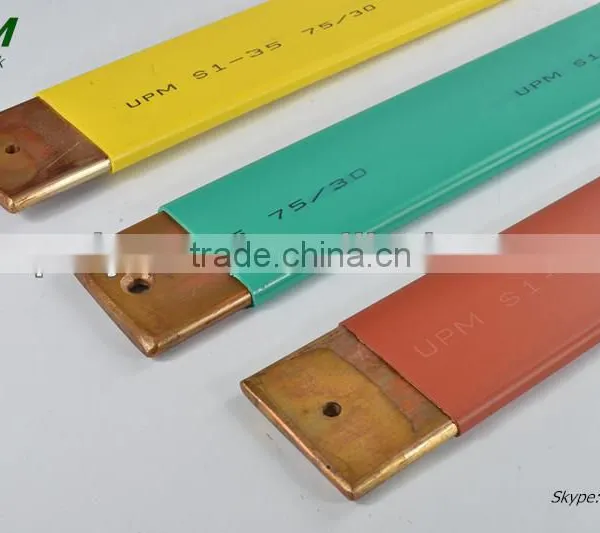

Red, green, yellow busbar heat shrink tube
flame retardant or non flame retardant
Rachem BBIT/BPTM

Bus Bar Insulating Heat Shrinkable Tubing

Voltage Class 1kV~36kV

Ideal for high and low voltage bus bar insulation

Medium and heavy wall heat shrinkable tubing for protection and insulation of bus bar against accidents caused by electrified bare bus bar.



Applications

          Bus bar insulation and protection

          In switchgear cabinets where space is limited and air spacing between bus bars need to be kept at minimal



Features/Benefits

         Reduces bus bar clearance requirements* , allow designers more freedom in designing switchgear cabinets when space is premium

          Protects against accidental flashover up to 36kV

          Protects against short circuit and electrical leakage caused small animals

          Protects against corrosion, dirt and other contaminants that may cause accidental flashover

          Halogen Free (optional)

          Flame resistant with oxygen index higher than 27 (optional)

          Available in continuous length roll form for convenient and economical installation



Temperature Range

       Operating Temperature  : -40 ºC ~ 105 ºC

       Shrink Temperature              : 125 ºC



Colour

       Red, Yellow, Black, Green



Product Code Cross References

       Raychem        : BBIT / BPTM

       DSG Canusa           : CBTM / CBTH

       3M                        : BBI



Technical Details

Test item

Test Standard

Typical Performance

Tensile strength

ASTM D2671

≥10 Mpa

Break down elongation

ASTM D2671

≥400 %

Tensile strength after aging

ASTM D2671,

≥10 Mpa

break down elongation after aging

(136 for 168h)

ASTM D2671

≥400 %

Flame retardant

ASTM D2863

Oxygen Index ≥27

Dielectric strength

ASTM D2671

≥15 kV/mm

Heat shock (200 for 4h)

ASTM D2671

no drop, no flow

Low temperature flexibility

(-40 for 4h)

ASTM D2671

no cracking

Water absorption

ASTM D570 A

≤0.5 %

Copper corrosion

 (158 for 168h)

ASTM 2671

pass

Long term ageing/ elongation at break

IEC 60684-2

≥175%

Resistance to selected fluids:

Tensile  strength                        Elongation at break

IEC 60684-2



>8Mpa

>250%



Product Selection

a + b

min. ~ max.

d

min. ~ max.

S1-10

min. thickness for 10kV-24kV

shrink on the bus bar

S1-35

min. thickness for

 24kV-36kV

shrink on the bus bar

15

25

10

18

Φ25/10

1.6

Φ25/10

2.5

22

35

15

25

Φ30/12

1.6

Φ30/12

2.5

28

45

20

30

Φ40/16

1.6

Φ40/16

2.5

38

55

25

40

Φ50/20

1.6

Φ50/20

2.5

45

65

35

50

Φ65/25

(Φ75/30)

1.6

Φ65/25

(75/30)

2.5

55

90

40

60

Φ85/35

(80/32)

1.6

Φ85/35

(80/32)

2.5

70

110

50

80

Φ100/40

1.6

Φ100/40

2.5

90

140

60

95

Φ120/50

1.6

Φ120/50

2.5

105

180

70

120

Φ150/60

1.6

Φ150/60

2.5

130

210

85

140

Φ175/75

1.6

Φ175/75

2.5

140

260

95

170

Φ210/85

1.6

Φ210/85

2.5
