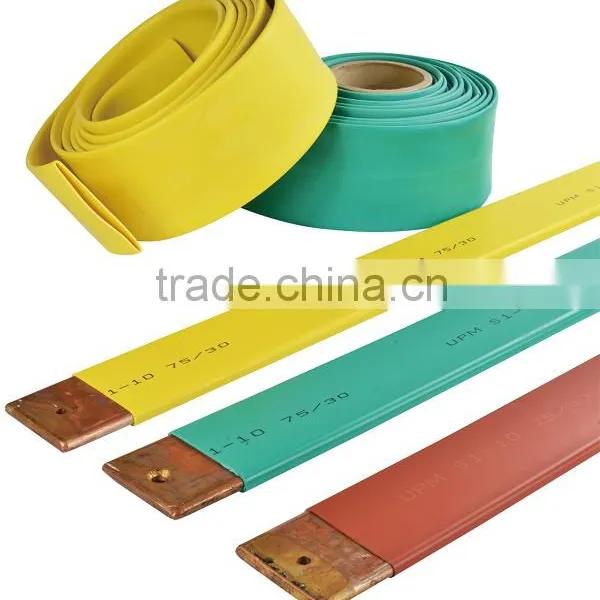

Hot!!! 6-24kV Halogen Free Flame Retardant Busbar Insulation Heat Shrink Tube

US$ 0.01 - 9.99 MOQ: 1000 Meters

Key Specifications

Place of Origin:

Liaoning, China

Brand Name:

UPM

Model Number:

S1-10

Union Polymer Material Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Liaoning, China

Brand Name UPM

Model Number S1-10

Type Insulation Sleeving

Material Composite Polymer

Application Other, Medium voltage

Rated Voltage 6-24kV

Tensile Strength 11MPa

Specifications

Suitable for insulation and protection of bus bar against accidental flashover up to 6-24 KV

	S1-10 Flame Retardant Bus Bar Insulation Heat Shrink Tube
Features
Medium wall cross-linked polyolefin		Operating temperature: -40~105 ℃
Flame retardant		Shrink temperature: 125 ℃
Bus bar insulation and protection		Shrink ratio: 2.5:1
Reduces bus bar clearance requirement		Voltage class: 6~24KV
RoHS compliant, Halogen free
Protects against short circuit and electrical leakage caused by small animals
Approvals

Technical Data
Property		Test method	Values
Physical	Tensile strength	ASTM D2671	≥11 MPa
	Breakdown elongation	ASTM D2671	≥400%
Aging (136℃/168hrs)	Tensile strength	ASTM D2671	≥10 MPa
Aging (136℃/168hrs)	Breakdown elongation	ASTM D2671	≥300%
Long term aging
(120℃/3000hrs) Breakdown elongation		IEC 60684-2	≥175%
Resistance to selected fluids Tensile strength		IEC 60684-2	≥8MPa
(23℃/168hrs) Breakdown elongation		IEC 60684-2	≥250%
	Density	ASTM D2671	1.15~1.25
	Thermal endurance	IEC 216	105 ℃
	Water absorption ((23℃/336hrs))	ASTM D570	≤0.5%
	Low temperature flexibility(-40℃/4hrs)	ASTM D2671	No cracking
	Heat shock (200℃/4hrs)	ASTM D2671	No drop, No flow,No cracking
Electrical	Volume resistivity	ASTM D2671	≥1012 Ω.cm
	Dielectric strength(in insulation oil)	ASTM D2671	≥16 KV/mm
Chemical	Color fastness to light	IEC 60684-3	Compare between exposed and unexposed parts the color does not change
	Flammability	ASTM D2863	OI≥27
	Copper corrosion(158℃/168hrs)	IEC 60684-3	Pass

Dimensions				2.5:1
Reference	As supplied(mm)	After recovered(mm)		Standard length
UPM S1-10	ID min.	ID max.	WT nom.	m/spool
25/10	25	10	2.50	25
30/12	30	12	2.65	20 or 25
40/16	40	16	2.65	20 or 25
50/20	50	20	2.65	20 or 25
65/25	65	25	2.85	20 or 25
75/30	75	30	2.85	20 or 25
85/35	85	35	2.85	20 or 25
100/40	100	40	2.85	20 or 25
120/50	120	50	2.85	20 or 25
150/60	150	60	2.90	20 or 25
175/75	175	75	2.90	20 or 25
Product selection
Bus bar size (mm)		Single layer bus bar		Two layer bus bar
20×3,25×3		Φ25/10		Φ30/12
30×3,30×4		Φ30/12		Φ40/16
30×10,40×4		Φ40/16		Φ50/20
40×10,50×5,50×6		Φ50/20		Φ65/25 (Φ75/30)
50×8,50×10,60×6,60×8		Φ65/25 (Φ75/30)		Φ75/30(Φ85/35)
60×10,80×6,80×8,80×10		Φ75/30(Φ85/35)		Φ100/40(Φ120/50)
100×8,100×10,100×12		Φ100/40(Φ120/50)		Φ120/50
100×15,120×10,120×12,120×15		Φ120/50		Φ150/60
150×12,150×15		Φ150/60		Φ175/75

ID=Internal Diameter		WT=wall thickness
Typical application
Suitable for insulation and protection of bus bar against accidental flashover up to 24 KV
Ideal for using in switchgears cabinets where space is limited and air spacing between bus
bars need to be kept at minimal
Ordering
Standard color : Red
Standard packaging on spools.
Please specify specification,quantity when ordering
Cross reference
Sumitomo: IRRAX sleeve SBI 300
