Hot!!! 6-24kV Halogen free Busbar Insulation Heat Shrink Tube
USD $0.01 - $9.99
/ Meter
1000 Meters(Min.Order)
- 1000 Ton / Tons per Month
- Dalian China
- T/T Credit Card
You May Like
- Wenzhou Yika 7.2KV High Voltage Fuse 63 Amp
- 3240 Epoxy Board, High-quality Insulation Material, Flexible Customization, Widely Applicable 3240 Epoxy Sheet
- Chinese Factory Electrical Insulation Brown 3025 Phenolic Bakelite Resin Cotton Cloth Fabric Laminate Board Sheet Phenolic Board
- 4x8 fiberglass sheets g10 epoxy glass fiber board g10 material
- Factory Price Bakelite Decorative HPL Press plates bakelite sheet
- Black G10 Sheet - High Quality Carbon Fiber G10 FR4 Sheets - Precision-made PCB Materials
Product Details
Place of Origin: | Liaoning, China | Brand Name: | UPM | Model Number: | S1(n)-10 |
Type: | Insulation Sleeving | Material: | Composite Polymer | Application: | Other, Medium voltage |
Rated Voltage: | 6-24kV | Tensile Strength: | 14MPa |
Product Description
Specifications
Suitable for insulation and protection of bus bar against accidental flashover up to 24 KV

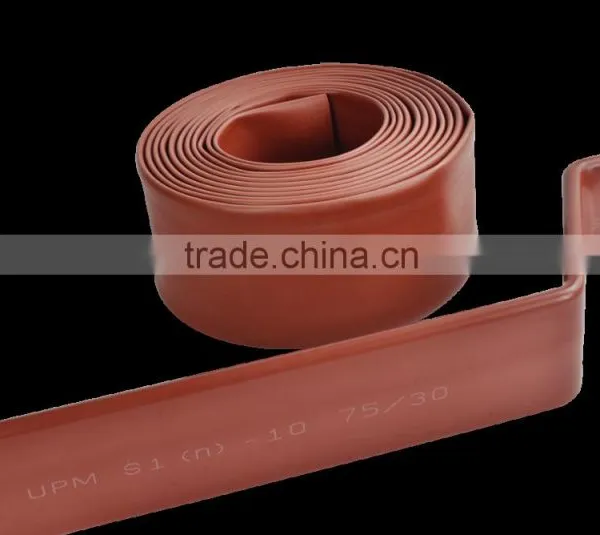

S1(n)-10 Halogen Free Bus Bar Insulation Heat Shrink Tube | ||||
Features | ||||
Medium wall cross-linked polyolefin | Operating temperature: -40~105 ℃ | |||
Bus bar insulation and protection | Shrink temperature: 125 ℃ | |||
Reduces bus bar clearance requirement | Shrink ratio: 2.5:1 | |||
Halogen free, RoHS compliant | Voltage class: 6~24KV | |||
Protects against short circuit and electrical leakage caused by small animals | ||||
Approvals | ||||
Technical Data | ||||
Property | Test method | Values | ||
Physical | Tensile strength | ASTM D2671 | ≥14 MPa | |
Breakdown elongation | ASTM D2671 | ≥500% | ||
Aging (136℃/168hrs) | Tensile strength | ASTM D2671 | ≥12 MPa | |
Breakdown elongation | ASTM D2671 | ≥400% | ||
Long term aging | ||||
(120℃/3000hrs) Breakdown elongation | IEC 60684-2 | ≥175% | ||
Resistance to selected fluids Tensile strength | IEC 60684-2 | ≥8MPa | ||
(23℃/168hrs) Breakdown elongation | IEC 60684-2 | ≥250% | ||
Density | ASTM D2671 | 0.95~1.05 | ||
Thermal endurance | IEC 216 | 105 ℃ | ||
Water absorption ((23℃/336hrs)) | ASTM D570 | ≤0.2% | ||
Low temperature flexibility (-40℃/4hrs) | ASTM D2671 | No cracking | ||
Heat shock (200℃/4hrs) | ASTM D2671 | No drop, No flow,No cracking | ||
Holdig air test | more than 3 | After shrink, no air gap | ||
bendings on bus bar | between H.S.T. and bus bar | |||
Cutting test ((110℃/168hrs)) | Raychem method | 5mm Length cutting along longitudinal, no cracking | ||
Halogen free | IEC 61249-2-21 | Cl:900ppmmax.Br: 900ppmmax. | ||
Total(Cl + Br):1500ppm max. | ||||
Electrical | Volume resistivity | ASTM D2671 | ≥1012 Ω.cm | |
Tracking and erosion resistance | ASTM D2303 | After 1h at 2.5kV or 1h at 2.75kV no tracking | ||
Dielectric strength(in insulation oil) | ASTM D2671 | ≥16 KV/mm | ||
Chemical | Color fastness to light | IEC 60684-3 | Compare between exposed and unexposed parts the color does not change | |
Copper corrosion(158℃/168hrs) | IEC 60684-3 | Pass |
Dimensions | 2.5:1 | ||||
Reference | As supplied(mm) | After recovered(mm) | Standard length | ||
UPM S1(n)-10 | ID min. | ID max. | WT nom. | m/spool | |
25/10 | 25 | 10 | 2.50 | 25 | |
30/12 | 30 | 12 | 2.65 | 20 | |
40/16 | 40 | 16 | 2.65 | 20 | |
50/20 | 50 | 20 | 2.65 | 20 | |
65/25 | 65 | 25 | 2.85 | 20 | |
75/30 | 75 | 30 | 2.85 | 20 | |
85/35 | 85 | 35 | 2.85 | 20 | |
100/40 | 100 | 40 | 2.85 | 20 | |
120/50 | 120 | 50 | 2.85 | 20 | |
150/60 | 150 | 60 | 2.90 | 20 | |
175/75 | 175 | 75 | 2.90 | 20 | |
Product selection | |||||
Bus bar size (mm) | Single layer bus bar | Two layer bus bar | |||
20×3,25×3 | Φ25/10 | Φ30/12 | |||
30×3,30×4 | Φ30/12 | Φ40/16 | |||
30×10,40×4 | Φ40/16 | Φ50/20 | |||
40×10,50×5,50×6 | Φ50/20 | Φ65/25 (Φ75/30) | |||
50×8,50×10,60×6,60×8 | Φ65/25 (Φ75/30) | Φ75/30(Φ85/35) | |||
60×10,80×6,80×8,80×10 | Φ75/30(Φ85/35) | Φ100/40(Φ120/50) | |||
100×8,100×10,100×12 | Φ100/40(Φ120/50) | Φ120/50 | |||
100×15,120×10,120×12,120×15 | Φ120/50 | Φ150/60 | |||
150×12,150×15 | Φ150/60 | Φ175/75 | |||
ID=Internal Diameter | WT=wall thickness | ||||
Typical application | |||||
Suitable for insulation and protection of bus bar against accidental flashover up to 24 KV | |||||
Ideal for using in switchgears cabinets where space is limited and air spacing between bus | |||||
bars need to be kept at minimal | |||||
Ordering | |||||
Standard color : Red | |||||
Standard packaging on spools. | |||||
Please specify specification, quantity when ordering | |||||
Cross reference | |||||
Raychem/ Tyco : BPTM |
