HDPE Dual Wall Black Mastic Anti Corrosion Heat Shrink Tube

Union Polymer Material Co., Ltd.

Negotiable MOQ: 100 Meters (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Liaoning, China

Brand Name:

UPM

Model Number:

S3C

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Liaoning, China

Brand Name UPM

Model Number S3C

Type Heat Shrinkable

Material PE

Specifications

1.Dual wall
2.Self-priming black mastic sealant liner
3.Excellent corrosion abrasion resistance
4.RoHS compliant

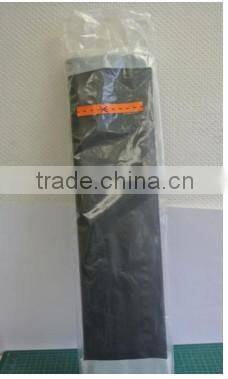

HDPE dual wall black mastic anti corrosion heat shrink tube

1.Dual wall
2.Self-priming black mastic sealant liner
3.Excellent corrosion abrasion resistance
4.RoHS compliant

Temperature Range

·Operating Temperature: -55oC to 135oC

· Shrink Temperature: 135oC

Product Code Cross References

Raychem/Tyco: SATM

DSG Canusa: PLA

Technical Details

Test Item	Test Method	Typical Value
Tensile Strength	ASTM D2671	17Mpa
Elongation at break	ASTM D2671	>400%
Impact brittleness	ISO 974	< -40
Water absorption (23oC for 24 hrs)	ISO 62	< 0.1%
Peel strength to steel at 23oC (cross head speed 100mm/min)	ISO 4587	> 4N/cm
Shear strength at 23oC (cross head speed 50mm/min)	ISO 4587	> 10N/cm2
Adhesive softening point	ASTM E28	> 95oC

Product Selection

Product Code	Before Shrink		After Shrink (After Free Recovery)			Standard Length
	Internal Diameter	Wall Thickness	Internal Diameter		Wall Thickness	Standard Length
	(mm)	(mm)	(mm)	(mm)		(m)	(inch)
S3(c)-Φ 33/10	33	1.2±0.2	10	2.9±0.1		1.22	48
S3(c)-Φ 37/12	37	1.2±0.2	12	3.0±0.1		1.22	48
S3(c)-Φ 45/22	45	1.3±0.2	22	2.7±0.1		1.22	48
S3(c)-Φ55/22	55	1.2±0.2	22	2.7±0.1		1.22	48
S3(c)-Φ 63/40	63	1.3±0.2	40	3.2±0.1		1.22	48
S3(c)-Φ 75/25	75	1.2±0.2	25	3.2±0.1		1.22	48
S3(c)-Φ 80/28	80	1.3±0.2	28	3.2±0.1		1.22	48
S3(c)-Φ 95/36	95	1.3±0.2	36	3.3±0.1		1.22	48
