Help CenterS9 Silicone Rubber Tube
Negotiable
MOQ: 500 Meters (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Liaoning, China
Brand Name:
UPM
Model Number:
S9
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Liaoning, China
Brand Name
UPM
Model Number
S9
Specifications
Silicon rubber tubingHighly flame retardnt
Shrink ratio :1.5:1
Highly flexibility at high or low temperature
Silicon Rubber tubing

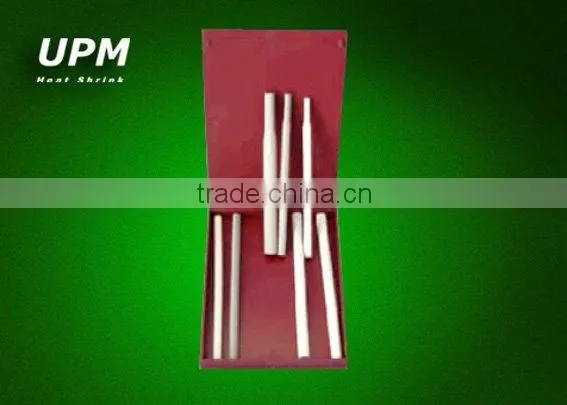

S9 Silicon Rubber Heat Shrinkable Tubing
Voltage Class 1kV Suitable for thermal insulation and heat shock protection
Silicon rubber tubing with good thermal insulation property and excellent resistance to both high and low temperature. Suitable for providing insulation and protection for equipment operating in or subject to be exposed to high temperature environment.
Applications
Thermal insulation and protection of medical apparatus that require sterilization treatment.
Heating element insulation
Fiber optic bundle sheathing
Electrical wiring terminal insulation
Aviation and rocketry support cable protection
Features/Benefits
Shrink Ratio: 1.5:1
Highly Flame Retardant
High flexibility at both high or low temperature
Temperature Range
Operating Temperature : -70~ 200 ºC
Shrink Temperature : 150 ºC
Color:Grey
Product Code Cross References
Raychem/Tyco : SRFR
Technical Details
Test Item |
Test Method |
Typical Value |
Heat shock (275 for 4h) |
ASTM D2671 |
no drop no flow |
Tensile strength |
ASTM D2671 |
≥ 6Mpa |
|
Tensile strength after aging
(200 for 168h)
|
ASTM D2671 |
≥ 3.5Mpa |
Break out elongation |
ASTM D2671 |
≥ 200% |
|
Break out elongation after aging
(200 for 168h)
|
ASTM D2671 |
≥ 150% |
Dielectric strength |
ASTM D2671 |
≥ 18kV/mm |
Flame retardant |
ASTM D2671 |
Self-extinguish in 60 seconds |
Product Selection
| Product Code | ID Before Shrink(mm) | ID After Shrink(mm) | Wall Thickness After Free Recovery(mm) | Standard Package(pcs) |
S9-Φ1.5 |
1.7±0.2 |
0.8±0.1 |
1.0±0.2 |
1 |
S9-Φ3.0 |
3.2±0.2 |
1.8±0.1 |
1.0±0.2 |
1 |
S9-Φ4.0 |
4.5±0.3 |
2.2±0.1 |
1.0±0.2 |
1 |
S9-Φ5.0 |
5.6±0.3 |
2.9±0.1 |
1.0±0.2 |
1 |
S9-Φ6.0 |
6.6±0.3 |
3.3±0.1 |
1.0±0.2 |
1 |
S9-Φ8.0 |
8.6±0.4 |
4.3±0.1 |
1.0±0.2 |
1 |
S9-Φ10 |
10±1.0 |
5.0±0.1 |
1.0±0.2 |
1 |
S9-Φ12 |
12±1.0 |
6.0±0.1 |
1.5±0.2 |
1 |
S9-Φ14 |
14±1.0 |
7.0±0.1 |
1.5±0.2 |
1 |
S9-Φ16 |
16±1.0 |
8.0±0.1 |
1.5±0.2 |
1 |
S9-Φ20 |
20±1.0 |
12±0.1 |
2.0±0.3 |
1 |
S9-Φ30 |
30±1.0 |
18±0.1 |
2.0±0.3 |
1 |
S9-Φ40 |
40±1.0 |
25±0.1 |
2.0±0.3 |
1 |
S9-Φ50 |
50±1.0 |
30±0.1 |
2.0±0.3 |
1 |
ID: Internal Diameter
Ordering
When ordering this product, please specify 1) Product code 2) Quantity required in pcs
