Heat Shrink Tube
Negotiable
/ Meter
1000 Meters(Min. Order)
- dalian
- T/T Money Gram
You May Like
Product Details
| Place of Origin | Liaoning, China | Brand Name | UPM | |
| Model Number | S2(n) | Type | Insulation Sleeving | |
| Material | PE | Application | Low Voltage | |
| Rated Voltage | 1kV | Tensile Strength | 10Mpa |
Product Description
Specifications
heat shrink tubeShrink ratio: 2:1, 3:1, 4:1
Halogen free, environmental friendly
Comply with RoHS
Dia from 0.6 to 180mm
Heat shrink tube

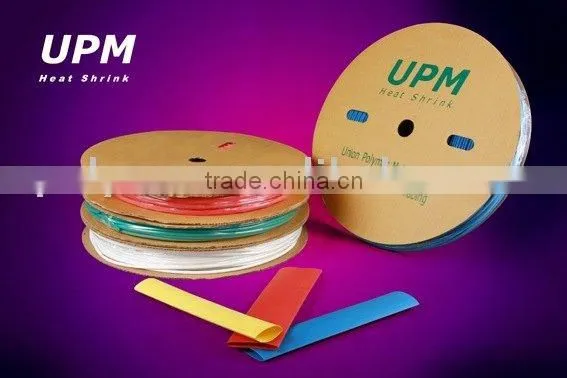

S2 (n) Halogen Free Heat Shrinkable Tubing
Voltage Class 600V~1kV Ideal for electronic wire and component insulation and protection
Heat Shrinkable tubing with all new halogen free formula. Environmental friendly, will not result in toxic smoke or harmful substance such as dioxin when burned. Excellent performance of insulation, elasticity and flexibility.
Applications
Commonly used for electronic insulation and protection, strain relief and wire bundling. Common application would be in the electronic systems of subway, airplane, submarine, and other control room facilities / sealed environment.
Features/Benefits
Shrink ratio: 2:1, 3:1, 4:1
Halogen free, environmental friendly
Comply with RoHS health & safety regulation
Temperature Range
Operating Temperature : -40 ~ 125 ºC
Shrink Temperature : 125 ºC
Color:Red, Blue, Yellow, Black, Green, Transparent
Standard Compliance: RoHS
Product Code Cross References
Raychem/Tyco : VERSAFIT V2
DSG Canusa : DERAY®H
Sumitomo : F2(Z)
LG : GSHS-1625
Technical Details
Test Item | Test Method | Typical Value |
Tensile strength | ASTM D2671 | ≥ 10Mpa |
Break down elongation | ASTM D2671 | > 400% |
Longitudinal shrink ratio | ASTM D2671 | ±5% |
Heat shock (200) | ASTM D2671 | No drop/no flow |
Flame retardant | ASTM D2863 | Oxygen Index >27 |
Dielectric strength | ASTM D2671 | > 15kV/mm |
Volume resistivity | ASTM D2671 | > 1014Ω.cm |
Water absorption | ASTM D570 | < 0.5% |
