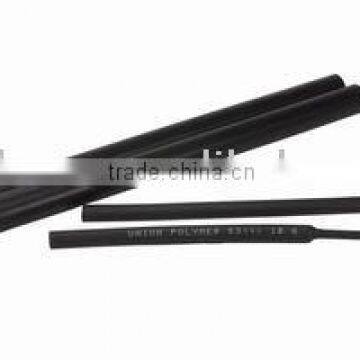

S3(t) Thin Wall Heat Shrinkable Tubing
- 0 per Month
You May Like
Product Details
| Place of Origin | Liaoning, China | Brand Name | justup | |
| Model Number | S3(t) |
Product Description
Specifications
Voltage Class 1kVIdeal for insulation and waterproof protection
Ideal for insulation and waterproof protection
Co-extruded dual wall tubing with polyolefin outer layer for insulation, corrosion resistance, stress release and heat melt adhesive inner layer for waterproofing and mechanical stress relief.
Applications
· Waterproof wire or wire bundle
·Sealing of wire joints
Features/Benefits
·High Shrink Ratio: 3:1 & 4:1
·Halogen free, environmental friendly
·Adhesive inner layer, waterproof and seal against moisture
·Flame Resistant: UL VW-1 Grade (Outer Layer)
Temperature Range
· Operating Temperature : -40 ºC ~ 125 ºC
· Shrink Temperature : 90 ºC ~ 125 ºC
Colour: Black
Certification
Certified by UL, E236437 (Outer Layer)
Product Code Cross References
Raychem : ATUM
DSG Canusa : DERAY-IAKT
Sumitomo : W2B2
3M : EPS300
Technical Details
Test item | Test method | Typical value |
Tensile strength | ASTM D2671 | ≥ 10Mpa |
Break down elongation | ASTM D2671 | > 400% |
Tensile strength after aging | ASTM D2671 | ≥ 10Mpa |
Break down elongation after aging | ASTM D2671 | > 300% |
Flammability | UL224 | VW-1 |
Water absorption | ASTM D570 | ≤ 0.5% |
Heat shock | 200 for 30 minutes | No drop/no flow |
Low temperature flexibility | -40 for 4 hours | No cracking |
Dielectric strength | ASTM D2671, at 2500V AC for 60 seconds | pass |
Copper corrosion | UL224, at 158 ºC for 168 hours | pass |
Volume Resistivity | ASTM D2671 | >1014Ω.cm |
Product Selection
S3(T) with Shrink Ratio: 3:1
Product Code | Min. wall thickness after free recovery(mm) | Standard Package (m/roll) |
S3(T)- Φ3.0/1.0 | 1.0 | 100 |
S3(T)- Φ4.8/1.6 | 1.0 | 100 |
S3(T)- Φ6.0/2.0 | 1.0 | 100 |
S3(T)- Φ9.0/3.0 | 1.3 | 100 |
S3(T)- Φ12/4.0 | 1.7 | 100 |
S3(T)- Φ18/6.0 | 2.0 | 50 |
S3(T)- Φ24/8.0 | 2.3 | 50 |
S3(T)- Φ30/10 | 2.4 | 50 |
S3(T)- Φ39/13 | 2.5 | 25 |
S3(T)- Φ51/17 | 2.5 | 25 |
S3(T) with Shrink Ratio: 4:1
Product Code | Min. wall thickness after free recovery(mm) | Standard Package (m/roll) |
S3(T)- Φ4.0/1.0 | 1.2 | 100 |
S3(T)- Φ8.0/2.0 | 1.5 | 100 |
S3(T)- Φ12/3.0 | 1.8 | 100 |
S3(T)- Φ16/4.0 | 2.0 | 50 |
S3(T)-Φ24/6.0 | 2.4 | 50 |
S3(T)- Φ32/8.0 | 2.4 | 50 |
S3(T)- Φ40/10 | 2.8 | 25 |
S3(T)- Φ52/13 | 2.8 | 25 |
