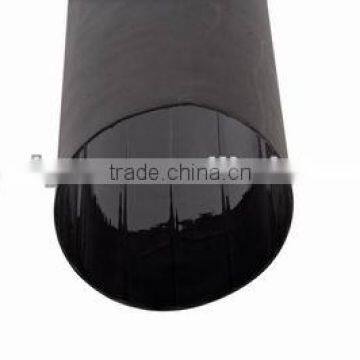

Heat Shrinkable Sleeve

Negotiable MOQ: 1000 Meters (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Liaoning, China

Brand Name:

UPM

Model Number:

S3(n)

Union Polymer Material Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Liaoning, China

Brand Name UPM

Model Number S3(n)

Type Insulation Sleeving

Material PE

Application Low Voltage

Rated Voltage 10kV

Specifications

dium wall heat shrink tube
2.Halogren free
3.Flame retardant

Medium wall heat shrink tube with adhesive

For cable joints and protection in different field

And CATV RF connector production

Please contact with me for more detail information

Technical Details

Test item	Test method	Typical value
Tensile Strength	ASTM D2671	12MPa
Elongation	ASTM D2671	400%
Specific Gravity	ASTM D792	1.2
Elongation after Heat Aging (168 hrs at 150)	ASTM D2671	350%
Tensile strength after heat aging	ASTM D2671	12MPa
Low Temperature Flexibility (4 hrs at -55)	ASTM D2671	No cracking
Hardness (Shore D)	ASTM D2240	60D
Heat shock (4hrs at 200)	ASTM D2671	No cracking or flowing
Adhesive Softening Point	ASTM-E28	85
Adhesive Peel Strength to P.E.	ASTM D1000	110N/25mm
Adhesive Peel Strength to Aluminum	ASTM D1000	80N/25mm
Dielectric Strength	ASTM D2671	20kV/mm
Volume Resistivity	ASTM D257	10¹⁴Ω.cm
Copper Corrosion	ASTM D2671	No Corrosion
Water Absorption	ASTM D570	0.5%
Fungus Resistance	ASTM G21	No Growth

Product Selection

Product Code	Min. wall thickness after free recovery(mm)	Standard Length Per Piece (m)
S3(N) -φ8/2	1.7	1.22
S3(N) -φ9/3	1.7	1.22
S3(N) -φ12/4	2.0	1.22
S3(N) -φ16/5	2.2	1.22
S3(N) -φ19/6	2.5	1.22
S3(N) -φ28/9	2.5	1.22
S3(N) -φ33/10	2.5	1.22
S3(N) -φ40/12	2.5	1.22
S3(N) -φ50/16	2.7	1.22
S3(N) -φ65/19	2.8	1.22
S3(N) -φ75/22	3.0	1.22
S3(N) -φ85/25	3.0	1.22
S3(N) -φ95/25	3.0	1.22
S3(N) -φ100/30	3.0	1.22
S3(N) -φ115/34	3.0	1.22
S3(N) -φ125/40	3.0	1.22
S3(N) -φ140/42	3.0	1.22
S3(N) -φ150/45	3.0	1.22
S3(N) -φ160/50	3.0	1.22
S3(N) -φ180/60	3.0	1.22
S3(N) -φ210/70	3.0	1.22
S3(N) -φ225/75	3.0	1.22
S3(N) -φ260/85	3.0	1.22
