Usage:The production line is mainly used to produce small diameter single wall PVC,PP and PE corrugation pipe.
The corrugated pipe could be used as wire and cable passing pipe ,washing machine drain pipe, dust collector pipe; Small size corrugation pipe of 4.5-50mm are used in car.
Advantages: Our special designed screw and special structure mould can protect the screw and barrel from easy-abrasion and give an easy forming process.
Material: PP, Temperature range: -20°C -110°C , the product is anti-oil, anti-acid, anti-alkali. The black color pipe is ultraviolet resistant.
Material: PE, Temperature range: -40°C -80°C , the product is anti-oil, anti-acid, anti-alkali. The black color pipe is ultraviolet resistant.
Technical Data List
No. |
Item |
Unit |
Technical Parameter |
1 |
Quantity of molding board |
pcs |
One pcs, with water cooling |
2 |
Material of molding board |
|
Cast iron, processing |
3 |
Driving method |
|
Gear wheel driving |
4 |
Gear box |
|
Worm wheel,worm gear box (two sets) |
5 |
Hauling speed |
m/min |
Max speed : 1-15m/min |
6 |
Driving motor power |
kw |
2.2kw, frequency conversion |
The Pipe Characteristic
1) Light weight-per-meter
2)Belling link, tight cementation
3)Pressure against, high strength
4)Anti-frozen and long service life (50 years )
5) Convenient construction

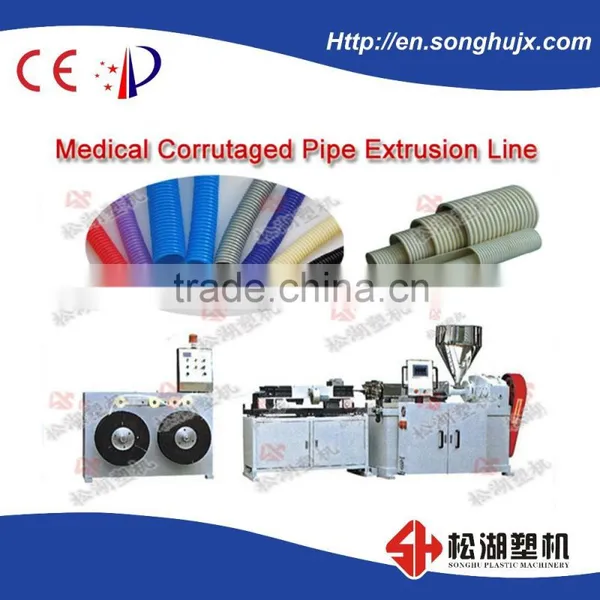

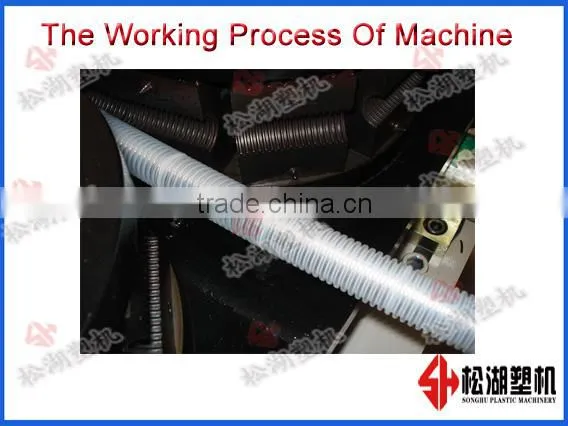

The Photo of corrugated pipe machine:

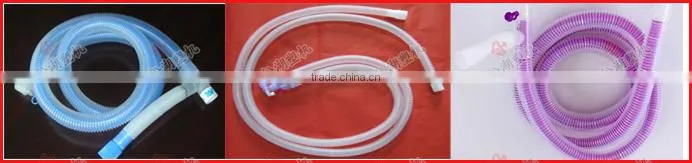

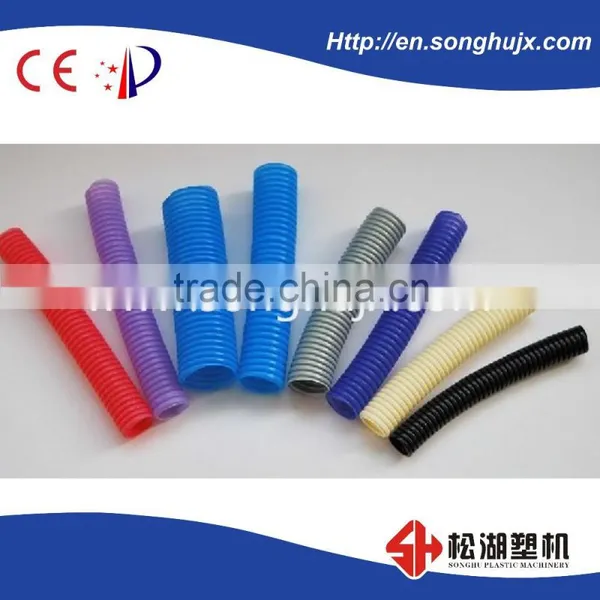

Sample show:
