Specifications
High Voltage Surge Generator1,Meet the standard:IEC61000-4-5
2,TUV certified
3,Professional manufacture in China
High Voltage Surge Generator is designed for Surge (impact) immunity test requirements with high reliability, intelligent control, user-friendly design and many other features.The object of this product is to establish a common reference for evaluating the immunity of electrical and electronic equipment when subjected to surges and provides a consistent method to assess the immunity of an equipment or system against Surge.
Product characteristic:
Fully compliant with the latest standards of IEC61000-4-5
Large LCD interface display, Chinese or English menu, easy to use
LCD display, Intelligent control,Use the imported high-voltage power supply, Reliable performance
Programmable operation by a key setting
Built-in international standards level parameters and user models parameters, simple
Built-in intelligent couping / decoupling network. Testing safety
Impulse injected the phase angle asynchronous or 0-360 ° free to set
The surge test Fully automatic switching without human operation
Built-in the RS232 interface ,Remote operated by the optional control software.

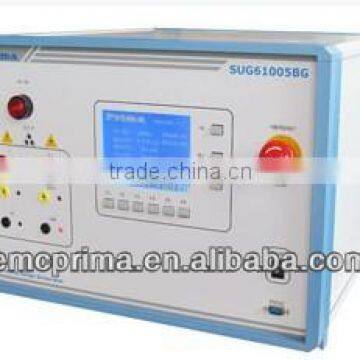

Model | SUG61005BG |
Open -circuit t voltage/short-circuit current | Waveform parameters parameters of Open -circuit t voltage: 1.2/50 μ s , 0.2~ 6kV |
Surge polarity | Positive / Negative/Asynchronism |
Phase | Synchronism 0 °~ 360 °selectable/Asynchronism |
Output impedance | Complex impedance: 2 Ω |
Coupling path | Built-in, one phase three line,,max 16A |
Surge count | 1~9999 |
Surge interval | 10~999S |
Working power supply | AC220V 50/60Hz |
Ambient temperature | 15°C~35°C |
Outline dimensions | 480×520×320 |
TUV certification
Customers visit our company
Manufacturing shop
On the China Electronic Exhabition
Famous customers of us in China and beyond
