Specifications

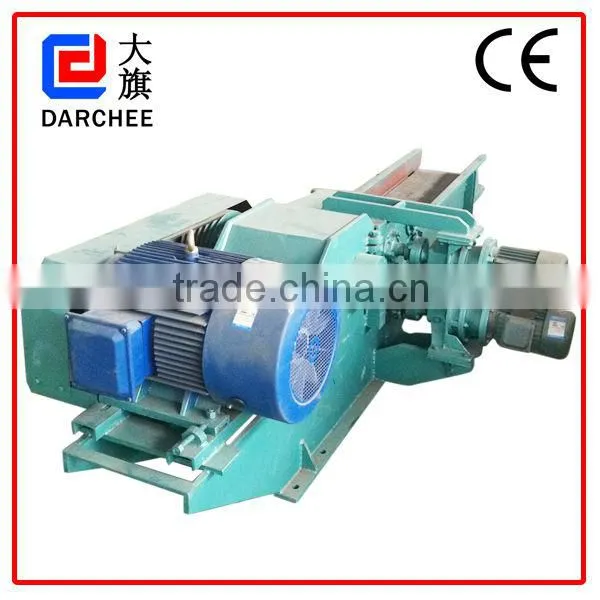

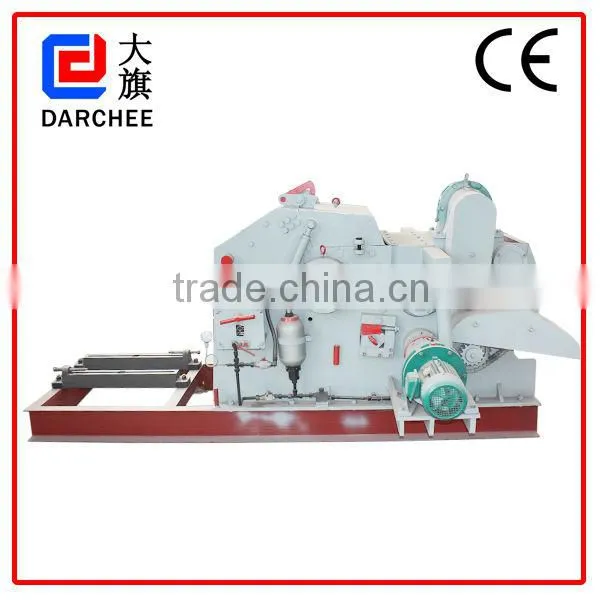

the drum chipper is the special equipment for producing perfect chipsThe drum chipper is the special equipment for producing perfect chips, and it is used in paper plants, particle board plants, fiber-broad plants, chip production and export bases. By which, logs and small wood are cut into high quality with even length and uniform chip thickness. It is also suitable for the chipping of branches and twigs, and planks
The chip length is different in accordance with the requirements of paper plants,particular broad and fiber-board industries ,in order to meet this need ,our company has improved different kinds of drump chippers recently ,and the new type machines habe more advantages ,All the features show that it is ideal equipment for chip production which can be exported all over the world .
BX213 |
BX215 |
BX216 |
|
Rotor Diameter(mm) |
300 |
500 |
650 |
Number of rotor knives(pieces) |
3 |
3 |
3 |
Rotor Opening(mm) |
120x300 |
180x400 |
240x540 |
Rotor Speed(Rpm) |
730 |
592 |
590 |
Rotor Speed(m/min) |
38 |
38 |
38 |
Stock Processed max diameter(mm) |
90 |
160 |
180 |
Chip length(mm) |
26 |
35 |
35 |
Capacity(m3/h) |
3-5 |
4-5 |
10 |
Main drive motor power(KW) |
30 |
45 |
55 |
Feed roller motor ppwer (KW) |
1.1x2 |
2.2x2 |
3x4 4x1 |
Weigth(t) |
1.2 |
2.9 |
4.07 |
Overall dimensions(mm) |
3680x870x900 |
1540x1240x1020 |
1980x1950x1250 |
