Wholesale REOO solar module raw material for manufacturing solar panel
- 5000 Set / Sets per Month
- Shanghai
- T/T
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | REOO | Model Number: | raw material |
Type: | Other, solar raw material |
Product Description
Whole Set Solar Panel Manufacturing Equipment with Raw
Materials
The main raw materials
1 Tempered glass
2 Solar cells
3 EVA film
4TPT sheet
5 Junction Box
6 Soldering ribbon.

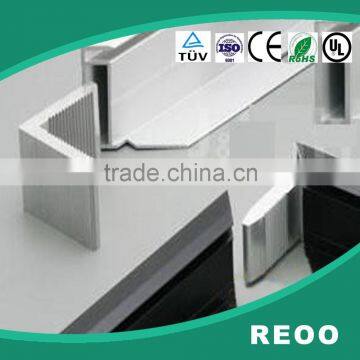

7 Aluminum framer
8 Silicon gel
9 Soldering flux
10 High temperature tape

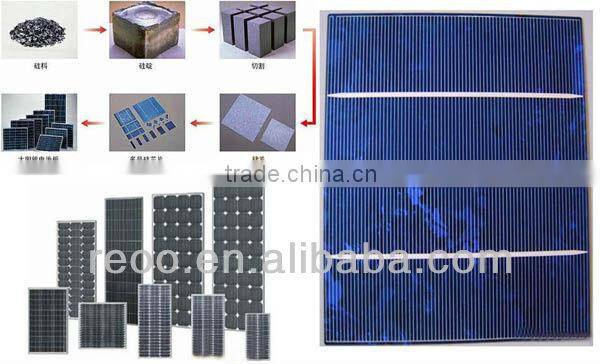

125* 125 mm Polycrystalline silicon solar cell
Model | Efficiency | Power | Max power current | Max power voltage | Short Circuit Current | Open Circuit Voltage | Fill Factor |
Eff (%) | Ppm(w) | Ipm(A) | Vpm(V) | Isc(A) | Voc(V) | FF(W) | |
SPSM125M-V3 | >17.7 | 2.766 | 5.288 | 0.523 | 5.577 | 0.626 | 79.214 |
SPSM125M-V2 | 17.5-17.7 | 2.734 | 5.258 | 0.520 | 5.553 | 0.624 | 78.916 |
SPSM125M-V1 | 17.3-17.5 | 2.703 | 5.218 | 0.518 | 5.517 | 0.622 | 78.769 |
SPSM125M-SI | 17.1-17.3 | 2.672 | 5.168 | 0.517 | 5.501 | 0.620 | 78.337 |
SPSM125M-S2 | 16.9-17.1 | 2.641 | 5.117 | 0.516 | 5.477 | 0.618 | 78.019 |
SPSM125M-H1 | 16.7-16.9 | 2.609 | 5.067 | 0.515 | 5.449 | 0.616 | 77.739 |
SPSM125M-H2 | 16.5-16.7 | 2.578 | 5.006 | 0.515 | 5.410 | 0.616 | 77.357 |
Dimension 125mm*125mm ±0.5mm
Front Blue silicon nitride antireflection coatings 1.5mm silver busbar
Back Full-surface aluminum back -surface field 3 mm (silver aluminum ) continuous soldering pads

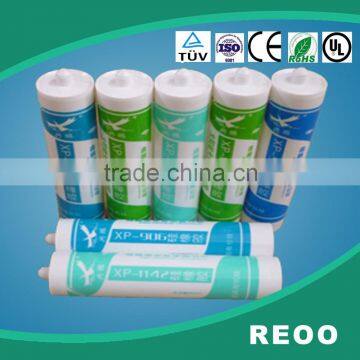

1527 Silicone Sealant For PV Modules
PRODUCTION DESCRIPTION
White, UL certificated, super resistance to ultra violet(UV),
rain, contamination and hail. For sealing the side frames of
solar cell, sealing/adhesive the junction boxes of solar cell
and for sealing the solar energy lamps.
TYPICAL APPLICATIONS
•Sealing the frames of solar cell.
•Sealing/adhesive the junction boxes of solar cell .
•Sealing the solar energy lamps.
Solar panel produce flow chart
1. Preparation: preparation of raw materials.
2. Soldering cell: Sort solar cell, single soldering and string soldering.
3. Cutting material: EVA film and TPT back sheet.
4. Laying out: the material prepared in accordance with the technical requirements for tabbing
5. Laminating: laminate raw material in the laminator and solidify.
6. Fix box: cut the edge of the extra EVA an fix the junction box on the solar panel.
7. Testing: Test laminated solar panel after the performance, as required sorting.
8. Quality tests: In the process of making other tests, IV curves of the test, and the appearance of high-voltage isolation.
9. Warehousing: Qualified storage products, goods failed to repair.
Installation
We send engineer or technicians to buyers factory to install machine.
All expenditure on travel, food, accommodation and transportation of our engineers/ technicians for installation will be borne by buyer.
REOO company borne the salary of engineer.
Training
We supply both overseas and local training to the engineers and technicians on operation and maintenance.
buyer borne air tickets, lodging, food and training material .
Minimum 12 (twelve) months warranty of all products and services .
guarantee for the spares and required maintenance or replacement support are to be provided . Buyer borne the cost of the material for parts of maintenance.
Backup spares:
We supply essential backup spares. items beyond warranty periods, buyer borne the cost.
Why buy solar panel production line from REOO technology ?
We have more experience for design, manufacturing, packing, shipping, installation, training, trial production in all of world.
We have more than 10 years experience for manufacture and export solar panel machines
Our engineer can install all of machines for making solar panel.
Our engineer can supply best technology.
We can train for all of machines.
We supply all tools and accessories for production, It is difficult be purchased in other countries. and these tools is free, Do not need money.
We can supply all of raw material for manufacture solar panel in good quality and lower price.
Please look the video from by REOO solar.
We can supply technical documents for apply TUV certificated. It is free.
Mr.Simon Sun NANTONG REOO TECHNOLOGY CO.,LTD. Add: Chennan industrial park, Rudong, Jiangsu, Chima PC226400 Tel: 86 513 8410 5399 Fax: 86 513 8410 5505 Skype: reoolisa WhatsApp: 0086 188 629 38063 |
