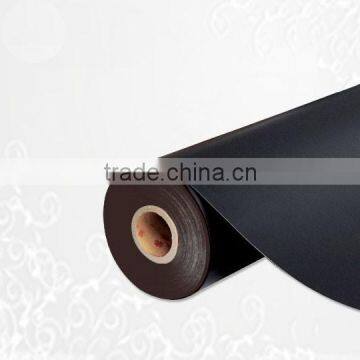

What is the solar back sheet (PV back sheet)?
The solar cell back sheet is the outermost layer of the PV module. The PV back sheet is designed to protect the inner components of the module, specifically the photovoltaic cells and electrical components from external stresses as well as act as an electric insulator. In order to accomplish this, the solar back sheet must be a robust construction, typically a three layer laminate, and have high dielectric properties. REOO photovoltaic back sheets are available in many different constructions to accommodate a wide variety of module types and technologies. We provide every solar back sheet solution under the sun!
Performance index | Reference value | Measured value |
Thickness(mm) | 0.250±0.005 | 0.250 |
Tensile strength (length way/crosswise)(N/cm²) | ≥300/400 | 346/428 |
Strain rate(%) | 120~130 | 126 |
Shrinking percentage (length way/crosswise) | ≤1.0%/0.5% | 0.46%/0.15% |
Breakdown voltage(KV) | ≥17 | 23 |
Interlaminar strength (N/cm) | ≥20 | 35 |
PCT | 48h | 60h |
Weightlessness (24h/150,%) | ≤3 | 1.94 |
Dimension stability (0.5h/150℃,%) | ≤3 | 1.77 |
Water vapor transmittance (g/m²d) | ≤2.0 | 1.62 |
Elongation at break (length way/crosswise) | (100%-160%)/(100%-120%) | 147%/116% |
Maximum allowable system voltage(VDC) | 1080 | 1200 |
The bonding strength with EVA(N/cm) | ≥40 | 62 |
Durable years | 6-8 years |

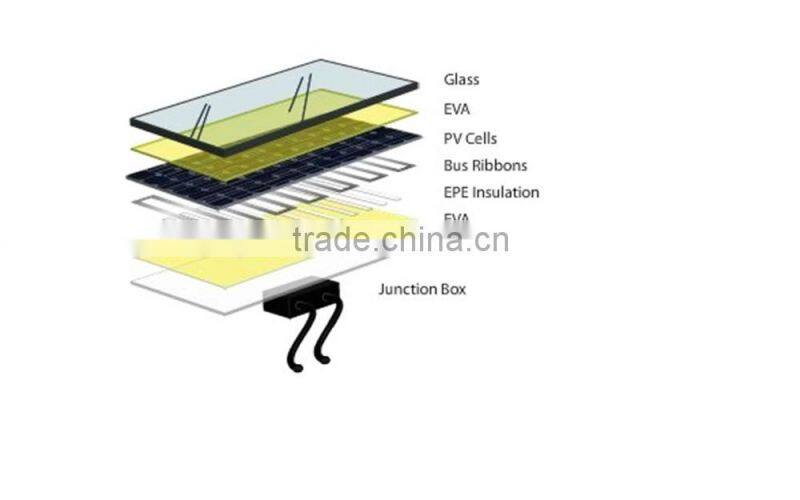

Solar Module with PV Back Sheet Exploded View
Below is an exploded view of a solar module, REOO is a manufacturer of the PV back sheet and PET insulator components. The PET insulation material was designed specifically to act as an internal insulator to guard against shorts in the module's electric components.
| Mr.Simon Sun NANTONG REOO TECHNOLOGY CO.,LTD. Add: Chennan industrial park, Rudong, Jiangsu, Chima PC226400 Tel: 86 513 8410 5399 Fax: 86 513 8410 5505 Skype: reoolisa WhatsApp: 0086 188 629 38063 |
Send Inquiry to This Supplier
