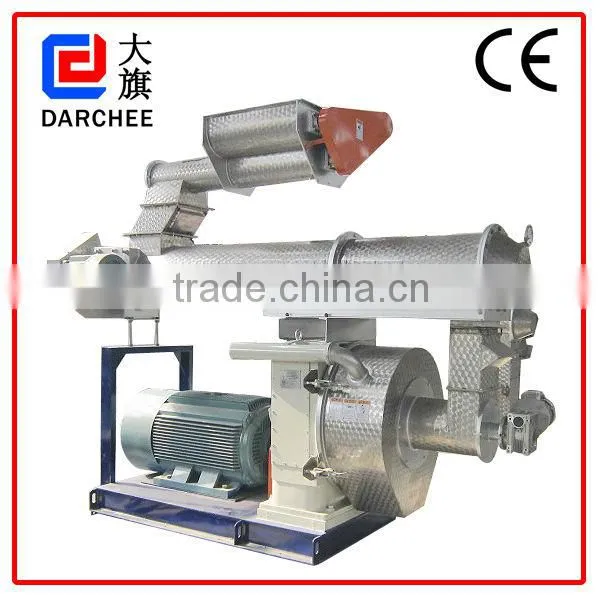

Help CenterSmall Capacity Biofuels Pellets Machine
Related Products
Features:
1.Frequency conversion motor regulates the feeding rate. Feed screw with variable helical structure, controlling precisely.
2.Conditioner body with large opening-door structure is easy for checking and maintenance;
3.The conditioner is set with spraying nozzles, they will add proper water to make the raw materials to achieve the best effect.
4.Setting a discharging handle or a pneumatic discharging on the outboard, makes it easy for the operation of automatic control.
5.Fit with a ring lifting device, which is easy to disassemble ring dies and reduce labor intensity.
6.Larger mills adopted the magnetic filtering, the cooling and the oil cutting alarm in one oil cooling lubrication system, forcibly lubricates the main bearing.
7.Different materials different ring dies running speeds, which will improve the effect of pellets.
Model |
Main Power(KW) |
Capacity(t/h) |
Feeder Power(KW) |
Conditioner Power(KW) |
Die Diameter(mm) |
Pellet Size(mm) |
DC350MX |
45-55 |
0.5-0.7 |
0.75 |
3 |
350 |
6-10 |
DC420MX |
90 |
0.8-1 |
1.5 |
5.5 |
420 |
6-12 |
DC508MX |
132/160 |
1.5-2 |
2.2 |
5.5 |
508 |
6-12 |
DC678MX |
185 |
2.5-3.5 |
3 |
11 |
678 |
6-12 |
DC768MX |
250 |
4-5.5 |
4 |
18.5 |
768 |
6-12 |
