REOO solar cell soldering ribbon high quality

Name: REOO solar cell soldering ribbon high quality
Brand: REOO
Price: USD $15 - 16 / Kilogram

FOB Price

USD $15 - $16 / Kilogram

1 Kilogram(Min.Order)

Supply Ability 10000 Kilogram / Kilograms per Month
Port Shanghai
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Jiangsu, China	Brand Name:	REOO	Model Number:	soldering ribbon
Type:	Other

Product Description

Solar cell soldering ribbon

About PV Ribbon:

PV ribbon is composed of Copper and coating alloys, and divided into Tabbing Ribbon and Bus bar ribbon.

Tabbing Ribbon: it is commonly connects the positive and negative sides of the cells in series.
Bus bar Ribbon: it is concentrate the cell stringing into junction box and channels electrical current.

Product Description

Features and Applications:

The item (tin coated copper welding ribbon) is based on size of Width*Thickness: 1.5*0.2 mm (it also can be 1.5-2.5mm * 0.08-0.25mm as your option),

sale as per lot, 2kgs/lot.

if you want buy more or less quantity, pls contact us, we will correct the price and freight cost for you.

1) welding ribbon for big power solar panel:

Copper base	electrician Park copper (TR line) rolling or T2 copper tape slitting
Copper substrate resistivity	ρ ≤ 0.0172Ωmm2 / m
Solder Composition	62% Sn36% Pb2% Ag; 60% Sn40% Pb; 96.5% Sn3.5% Ag (Bi optional)
The thickness of the tin layer	10μm-40μm, sided uniform
Thickness deviation	≤ 0.008
Width deviation	the rolled products ≤ 0.1mm; slitting Commodities ≤ 0.005mm
Elongation	the soft state ≥ 20%; semi-soft state ≥ 15%
Specifications	width 1.5mm-2.5mm; thickness 0.08mm-0.25mm. *(here is 1.50.2 mm)**

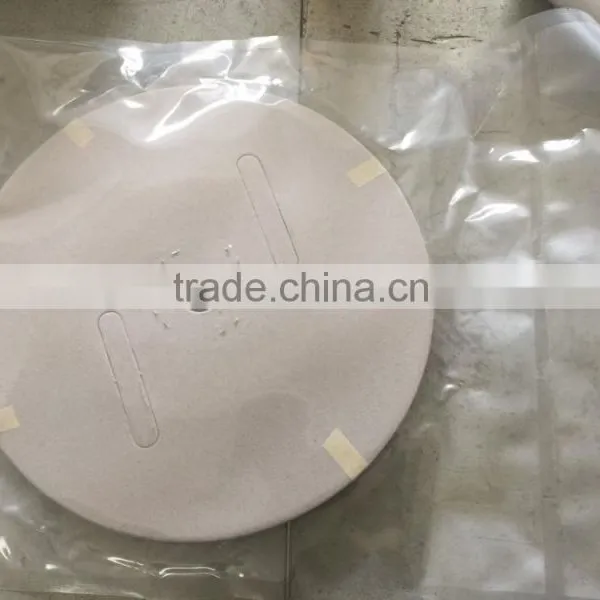

Packaging	cardboard, " I shape" wheel, box
Suitable for DIY solar cell and solar panel, also suitable for machine automatic welding middle without decapitation; crop for customers Length carton packaging

2) welding ribbon for epoxy solar panel etc. mini solar panel:

Copper base	electrician the Park copper (TR line) rolling
Copper substrate resistivity	ρ ≤ 0.0172Ωmm2 / m
Solder Composition	98% Sn2% Ag (Bi optional)
The thickness of the tin layer	10μm-20μm, sided uniform
Thickness deviation	≤ 0.008
Width deviation	rolled products ≤ 0.1mm
Elongation	≥ 10%
Specifications	width 0.6mm-1.2mm; thickness 0.08mm-0.13mm
Packaging	cardboard, " I shape" wheel, box

3) Bus-bar for big power solar panel:

Copper base	T2 copper tabe slitting
Copper substrate resistivity	ρ ≤ 0.0172Ωmm2 / m
Solder composition	62% Sn36% Pb2% Ag; 60% Sn40% Pb; 96.5% Sn3.5% Ag (Bi optional)
The thickness of the tin layer	10μm-40μm, sided uniform
Thickness deviation	≤ 0.008
Width deviation	≤ 0.005mm
Elongation	the soft state ≥ 20%; semi-soft state ≥ 15%
Product specifications	width 4mm, 5 mm, 6mm; thickness 0.15mm-0.3mm
Package	cardboard, " I shape" wheel, box

Related Parameters

NO.	Item	Testing standard
1	Metal content	Coating: Sn60/Pb40 Basic material:Cu≥99.95%
2	Basic material appearance	Light mental appearance; without decoloration,black spot and rust; without oxidation, burr or other defects.
3	Size	Basic material thickness:±0.005mm Basic material width:±0.05mm Coating thickness:±0.005mm Length:±1mm
4	Ribbon elongation	≥22%
5	Strength of extension	≥150Mpa
6	Resistance value	≤0.0265mmΩ/m2
7	Test temperature	22℃
8	Camber	1m≤5mm
9	Solderability	Use the 50w soldering iron solder the bus bar and ribbon, without abnormity.
10	Ribbon appearance	The appearance looks smoothly, no damage,tin dross≤1mm,pinhole≤3
