According to the IEC61000-4-2,IEC61000-4-4 Standards Combined Emc Testing Equipment

According to the IEC61000-4-2,IEC61000-4-4 Standards Combined Emc Testing Equipment thumbnail-1
According to the IEC61000-4-2,IEC61000-4-4 Standards Combined Emc Testing Equipment photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Prima
Model Number:
PRM61024A
Contact Supplier Request Quote Chat Now
Shanghai Prima Electronic Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name Prima
Model Number PRM61024A

Specifications

Combined emc testing equipment
1,Meet the IEC61000-4-2,IEC61000-4-4 standards
2,TUV certified
3,Professional manufacture

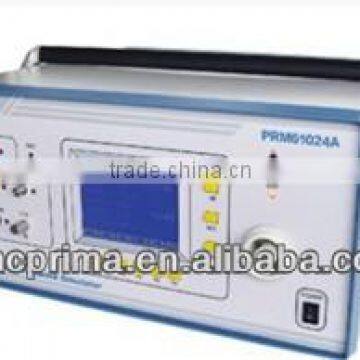

PRM61024A  is a combined EMC testing interference generator which contains ESD,EFT,two functions, product complies with the latest standards IEC61000-4-2 and IEC61000-4-4 .



Product characteristic:

ESD, EFT, two functions combined into a single, more cost-effective

LCD display, intelligent control,Reliable performance

Built-in international standards level parameters and user models parameters, simple

Built-in intelligent couping/decoupling network. Testing safety

Built-in the RS232 interface ,Remote operated by the optional control software.

Technical parameters:

Model

PRM61024A

ESD

Output voltage

0.2~± 20 kV ± 5% ( or 30kV)Positive / Negative

Testing functions

Contact discharge/Air discharge

Working form

Discharge interval 0.05 ~ 99.99s ,Testing form20PPS discharge;setting less than0.05s,be called single discharge

Discharge capacitor/Resistor

150pF /330 Ω (optional)

Current rise time

0.6 ~ 1ns

EFT

Output voltage

0 ~± 4500V Positive/Negative/Switchable

Pulse frequency

1kHz~1200kHz ± 10%, adjustable

Resistor

50 Ω± 20%

Rise time

5ns ± 30%

Impulse duration

50 Ω load

50ns ± 30%

1k Ω load

35 ns~150 ns

Number of burst

1~255

Burst period

300mS ( 0.15~9.99 S adjustable,step 0.01S )

EUT coupling path

Built-in,single phase three line AC220V,50/60Hz,max 16A



TUV certification



According to the IEC61000-4-2,IEC61000-4-4 standards Combined emc testing equipment
