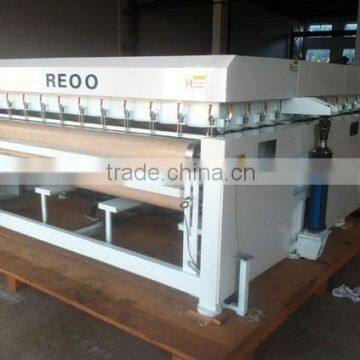

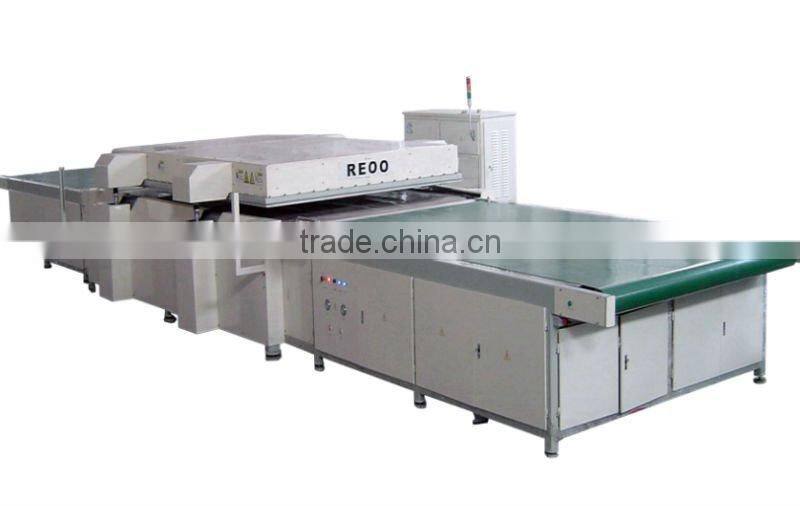

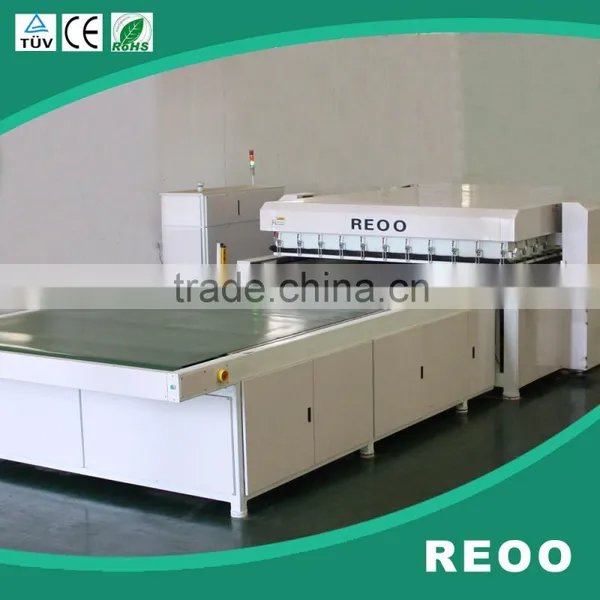

Full automatic laminator
USE : As the equipment of manufacturing solar module limited to laminate glass,
EVA (Ethylene Vinyl Acetate Sheet), solar cell and back sheet
Specification:
1.Full automatic solar module laminator;
2.PLC + Touch screen control;
3.Energy-saving laminator;
4.Operate,maintain easily.
5. Obtained ISO9001 and CE certification system already.
Technical parameter:
ITEM | SPECIFICATION |
Dimension | 14600mmx2460mmx1300mm |
Laminating area | 3600mm x 2200mm |
Laminating height | 25mm |
Total power consumption | 75 KW ( AC380V, 60 Hz, or according to customer's nee) |
Air source | 0.6 - 1.0 MPa. |
Operating mode | Manual / Automatic. |
Control system | PLC ( Delta) |
HIM system | Touch screen ( Delta) |
Heating mode | Oil Heating |
Temperature control system | PID intelligent temperature |
Temperature uniformity in working area | ≤ ±1.5 ℃ |
Temperature control accuracy | ≤± 1 ℃ |
Temperature control range | 30℃ - 180 ℃ |
Pumping rate | 70 L/s |
Laminating time | 2 - 4 mins ( excluding solidification time ) |
Heating rate | 135℃ at room temperature with 50 to 60 minutes |
Vacuum rate | 200 L / S, the limit vacuum 70 ~ 90 Pa |
Vacuum time | 90 seconds |
Silicone sheet size | 3800mm * 2400mm, 5 mm thickness |
Lid opening | Straight from the hydraulic |
the biggest opening height | 200 mm |
Total weight | 15.8 T |
Product capacity :
Conventional 300 Wp (1650*1030) solar module, 4 pcs in one cycle time.
Production capacity:
300 WP * 3 pieces / time * 3 time / h * 8 hours * 300 days=6.48 MWp / year. ( Single shift )
Installation
We send engineer or technicians to buyers factory to install machine.
All expenditure on travel, food, accommodation and transportation of our engineers/ technicians for installation will be borne by buyer.
REOO company borne the salary of engineer.
Training
We supply both overseas and local training to the engineers and technicians on operation and maintenance.
buyer borne air tickets, lodging, food and training material .
Minimum 12 (twelve) months warranty of all products and services .
guarantee for the spares and required maintenance or replacement support are to be provided . Buyer borne the cost of the material for parts of maintenance.
Why buy solar panel production line from REOO technology ?
We have more experience for design, manufacturing, packing, shipping, installation, training, trial production in all of world.
We have more than 10 years experience for manufacture and export solar panel machines
Our engineer can install all of machines for making solar panel.
Our engineer can supply best technology.
We can train for all of machines.
We supply all tools and accessories for production, It is difficult be purchased in other countries. and these tools is free, Do not need money.
We can supply all of raw material for manufacture solar panel in good quality and lower price.
Please look the video from by REOO solar.
/watch?v=fdLI7K639p4&feature=youtu.be
We can supply technical documents for apply TUV certificated. It is free.
| Mr.Simon Sun NANTONG REOO TECHNOLOGY CO.,LTD. Add: Chennan industrial park, Rudong, Jiangsu, Chima PC226400 Tel: 86 513 8410 5399 Fax: 86 513 8410 5505 Skype: reoolisa WhatsApp: 0086 188 629 38063 |
