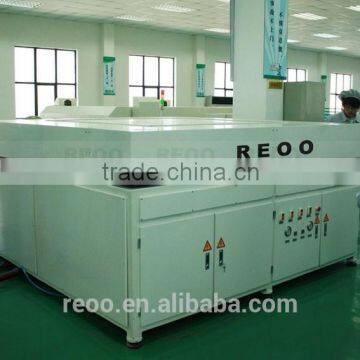

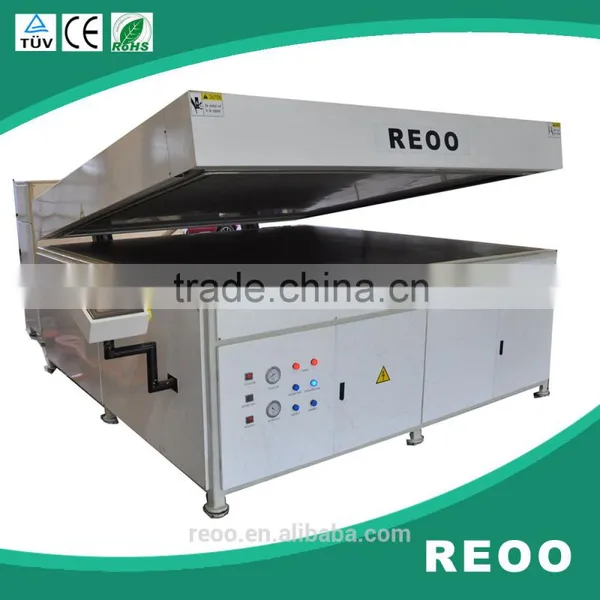

Semi automatic solar panel laminator.
For 1 MW solar panel production line.
New technology, Save electricity and good temperature uniform.
USE : As the equipment of manufacturing solar module limited to laminate glass, EVA (Ethylene Vinyl Acetate Sheet), solar cell and back sheet
Specification:
1.Semi automatic solar module laminator;
2.PLC + Touch screen control;
3.Energy-saving laminator;
4.Operate,maintain easily.
5. Obtained ISO9001 and CE certification system already.
Technical parameter:
ITEM | SPECIFICATION |
Dimension | 2700mm*1600mm*1230mm |
Laminating area | 2200mm x1200mm |
Total power consumption | 36KW ( according to customer's need) |
Air source | 0.6 - 1.0 MPa. |
Operating mode | Manual / Automatic |
Control system | PLC |

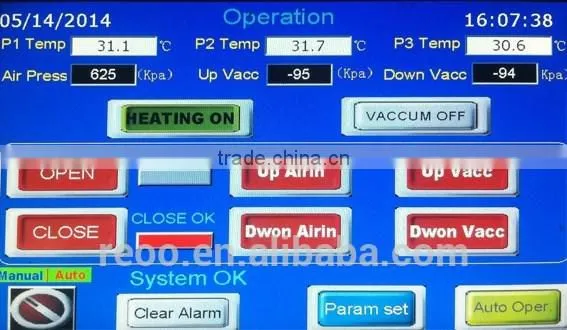

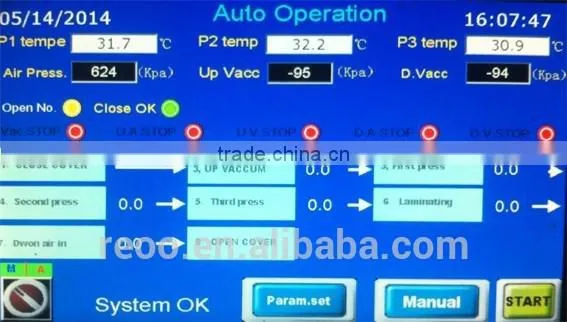

HIM system | Touch screen |
Heating mode | Electrical heating |
Temperature control system | PID intelligent temperature contol |
Temperature uniformity in working area | ≤ ±3 ℃ |
Temperature control accuracy | ≤± 1 ℃ |
Temperature control range | 30℃ - 180 ℃ |
Vacuum pumping rate | 70 L/s |
Laminating time | 2 - 4 mins ( Excluding solidification time ) |
Heating rate | 135℃ at room temperature with 50 to 60 minutes |
vacuum Time | 90 seconds |
Silicone sheet size | 1700mm * 900mm,5 mm thickness |
Total weight | 4.2 T |
Quick-wear parts | Only silicon inflation sheet. Around 3000times / pc |
Warranty period | 12 months. (Exclusive quick-wear parts). |
Product capacity :
Conventional 150Wp (1482*676) solar module, 2 pcs in one cycle time.
Production capacity:
150 W * 2pieces / time * 3 times / h * 8 hours * 300 days= 2.16MW / year.
Installation
We send engineer or technicians to buyers factory to install machine.
All expenditure on travel, food, accommodation and transportation of our engineers/ technicians for installation will be borne by buyer.
REOO company borne the salary of engineer.
Training
We supply both overseas and local training to the engineers and technicians on operation and maintenance.
buyer borne air tickets, lodging, food and training material .
Minimum 12 (twelve) months warranty of all products and services .
guarantee for the spares and required maintenance or replacement support are to be provided . Buyer borne the cost of the material for parts of maintenance.
Backup spares:
We supply essential backup spares. items beyond warranty periods, buyer borne the cost.
Delivery time:
25 days after received the advance payment.
Insurance:
We borne insurance of goods under contract from the time these are loaded on board the ship.
Packing:
All the equipment, tools, accessories and goods be suitably packed.
All packages are liable to be opened for customs examination and packing shall therefore be designed to facilitate opening and repacking thereafter.
Each package shall have the shipment information printed on it in bold letters.
Why buy solar panel production line from REOO technology ?
We have more experience for design, manufacturing, packing, shipping, installation, training, trial production in all of world.
We have more than 10 years experience for manufacture and export solar panel machines
Our engineer can install all of machines for making solar panel.
Our engineer can supply best technology.
We can train for all of machines.
We supply all tools and accessories for production, It is difficult be purchased in other countries. and these tools is free, Do not need money.
We can supply all of raw material for manufacture solar panel in good quality and lower price.
Please look the video from by REOO solar.
/watch?v=kfIC9acnnJY&feature=youtu.be
We can supply technical documents for apply TUV certificated. It is free.
