MC4 Compatible Solar Connector Used for Solar Panel Factory Price

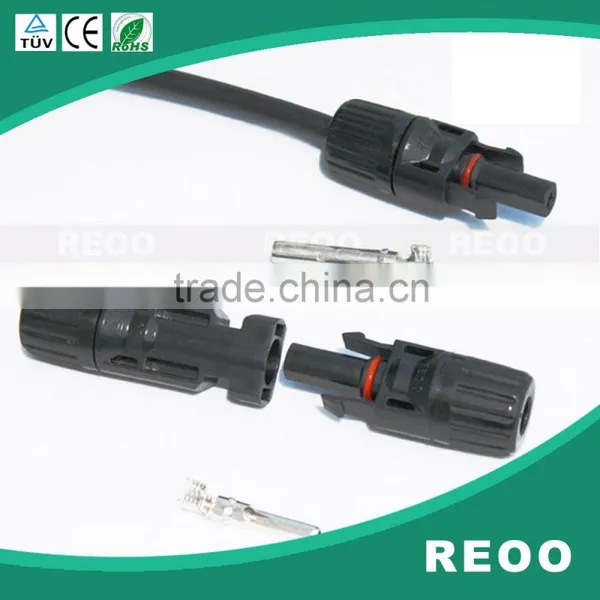

MC4 Compatible Solar Connector Used for Solar Panel Factory Price photo-1
MC4 Compatible Solar Connector Used for Solar Panel Factory Price photo-2
MC4 Compatible Solar Connector Used for Solar Panel Factory Price photo-3
MC4 Compatible Solar Connector Used for Solar Panel Factory Price photo-4
MC4 Compatible Solar Connector Used for Solar Panel Factory Price photo-5
MC4 Compatible Solar Connector Used for Solar Panel Factory Price photo-6
US$ 0.5 - 0.7 MOQ: 100 Pairs
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
REOO
Model Number:
RO-1
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Jiangsu, China
Brand Name REOO
Model Number RO-1
Type MCX
Application Power
Gender Other, Female and male

                                                   MC4     Solar power cable connector



The  advantage of REOO Solar connector



1, Polycarbonate raw material, Not PPO.



2, Ultrasonic hot melting , Most company use fixing clip.



3,  Manufacturer price.



PV solar connectors is a kind of pluggable connectors for PV module, with quick assembly, easy handling and high conductivity connection.



The PV solar connectors can easily be connected cables or junction boxes by using a multifunctional tool specifically developed for these connectors in usage with our junction boxes and cables, it’s a safety connection system for Photovoltaic .






Item

RO-1 solar cable connector

Compatible:

MC4 solar connector

Insulation material:

PC/PPO

Rated current :

30A

Rated voltage:

1500V

Test voltage :

6000V(50Hz,1Min)

Contact material :

Copper Tin plated

Contact resistance:

5mΩ

Degree of protection :

IP67

Safety class:

2

Flame class:

UL94-V0

Insertion force :

≤50N

Withdrawal force :

≥50N

Ambient temperature range :

-40 degree to +90 degree

Connector diameter :

4mm

Compatible cable cross sections :

solar cable 4.0mm2 and 6.0 mm2

Suitble cable :

2.5-6.0mm2 AWG 14/12/10

Be used for:

Connecting PV cable

characteristic

High insulation,Big tension,Fast integration





REOO Connector use PC raw material, It is top quality.



 Package



Male house

100 pcs / PE bag.

10 bag / carton,

also 1000 Pin/carton



Female house

100 pcs / PE bag.

10 bag / carton,

also 1000 Pin/carton

Measure

480*380*360 mm/carton

Net weight

34 kg / carton

Gross weight

35.5 kg / carton
