New High Quality MC4 Adapter PV Connectors for Solar Cells Panels

New High Quality MC4 Adapter PV Connectors for Solar Cells Panels photo-1
New High Quality MC4 Adapter PV Connectors for Solar Cells Panels photo-2
New High Quality MC4 Adapter PV Connectors for Solar Cells Panels photo-3
New High Quality MC4 Adapter PV Connectors for Solar Cells Panels photo-4
New High Quality MC4 Adapter PV Connectors for Solar Cells Panels photo-5
New High Quality MC4 Adapter PV Connectors for Solar Cells Panels photo-6
US$ 2.5 - 4.5 MOQ: 100 Pairs
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
REOO
Model Number:
RO-1T
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Jiangsu, China
Brand Name REOO
Model Number RO-1T
Type Other, MC4 connector

                                                           MC4     Solar power cable connector



The  advantage of REOO Solar connector

1, Ultrasonic hot melting , Most company use fixing clip.

2,  Manufacturer price.



New High Quality MC4 Adapter PV Connectors for Solar Cells Panels

Raw material

Used for

Price

Characteristic

PPO

PX9406P-7001

Junction box

Lower

Most of company use it for junction box.

PPO

540Z

Junction box

Lower

 Lower price

PPO

V0150B

Junction box

Middle

RTI higher than PX9406P

PPO

644Z

Junction box

Middle

Good quality for junction box

PA66

FR7025

Connector nut

Middle

Most of company use it for connector

PA66

FR370

Connector nut

Middle

Most of company use it for connector

PC

EXL9330

Connector house

Expensive

Top quality.







Item

RO-1 T Solar connector

Compatible:

MC4 solar connector

Insulation material:

PPO

Rated current :

30A

Rated voltage:

1500V

Test voltage :

6000V(50Hz,1Min)

Contact material :

Copper Tin plated

Contact resistance:

5mΩ

Degree of protection :

IP67

Safety class:

2

Flame class:

UL94-V0

Insertion force :

≤50N

Withdrawal force :

≥50N

Ambient temperature range :

-40 degree to +90 degree

Connector diameter :

4mm

Compatible cable cross sections :

solar cable 4.0mm2 and 6.0 mm2

Be used for:

Parallel connecting solar panel

Suitble cable :

2.5-6.0mm2 AWG 14/12/10

characteristic

High insulation,

Fast integration





New High Quality MC4 Adapter PV Connectors for Solar Cells Panels

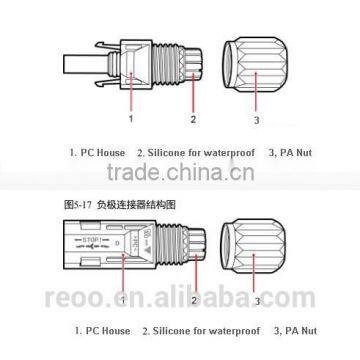

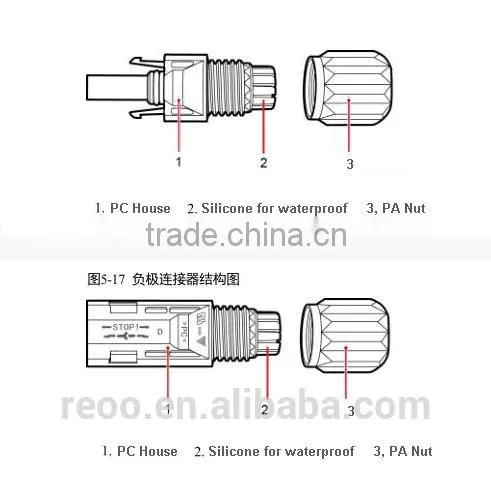

REOO Connector use PC raw material, It is top quality.







Package

1Male &2 Female

300 pairs / carton

2 Male &1 Female

300 pairs / carton

Measure

380*290*470 mm/carton

Net weight

34 kg / carton

Gross weight

35.5 kg / carton
