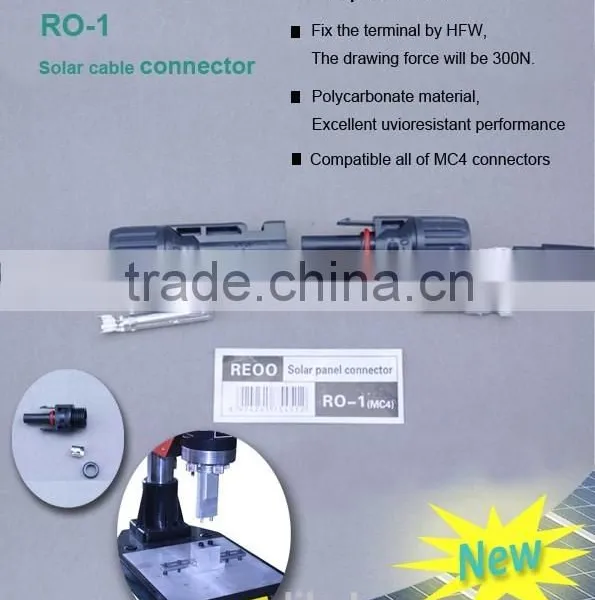

MC4 Solar power cable connector
The advantage of REOO Solar connector
1, PPO.
2, Ultrasonic hot melting , Most company use fixing clip.
3, Manufacturer price.

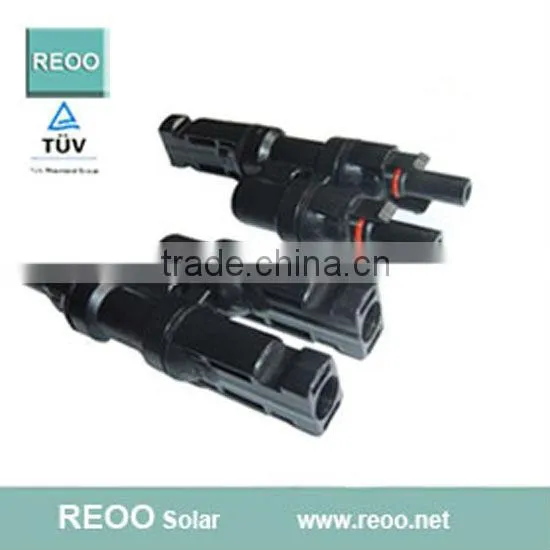

Item |
RO-1 T Solar connector |
Compatible: |
MC4 solar connector |
Insulation material: |
PC/PPO |
Rated current : |
30A |
Rated voltage: |
1500V |
Test voltage : |
6000V(50Hz,1Min) |
Contact material : |
Copper Tin plated |
Contact resistance: |
5mΩ |
Degree of protection : |
IP67 |
Safety class: |
2 |
Flame class: |
UL94-V0 |
Insertion force : |
≤50N |
Withdrawal force : |
≥50N |
Ambient temperature range : |
-40 degree to +90 degree |
Connector diameter : |
4mm |
Compatible cable cross sections : |
solar cable 4.0mm2 and 6.0 mm2 |
Be used for: |

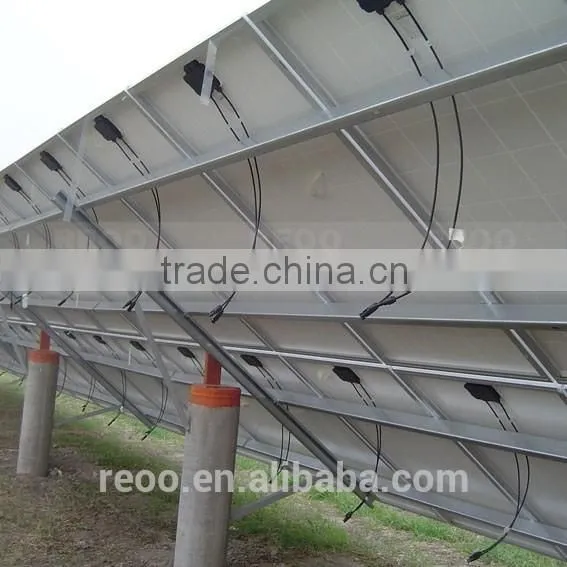

Parallel connecting solar panel |
Suitble cable : |
2.5-6.0mm2 AWG 14/12/10 |
characteristic |
High insulation, Fast integration |

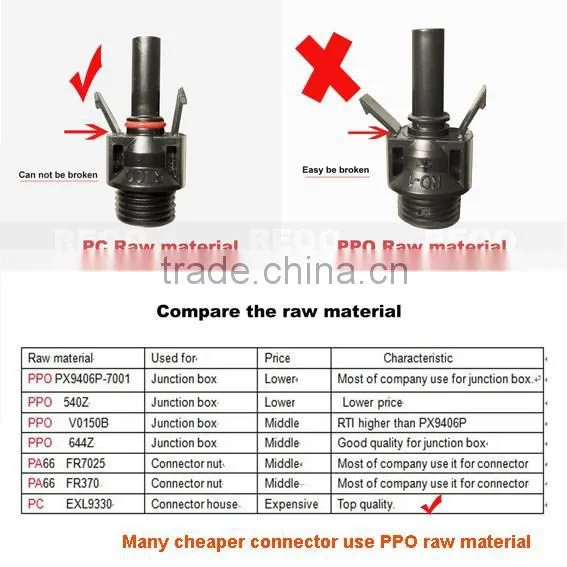

REOO Connector use PC raw material, It is top quality.
Package

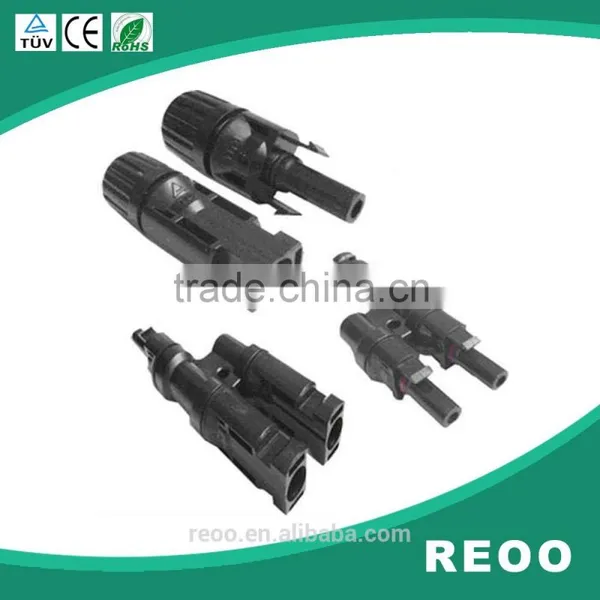

1Male &2 Female |
300 pairs / carton |
2 Male &1 Female |
300 pairs / carton |
Measure |
380*360*480 mm/carton |
Net weight |
34 kg / carton |
Gross weight |
35.5 kg / carton |
