Solar connector REOO MC4 connector RO-1 for photovoltaic system

Name: Solar connector REOO MC4 connector RO-1 for photovoltaic system
Brand: REOO
Price: USD $0.5 - 0.65 / Pair

FOB Price

USD $0.5 - $0.65 / Pair

100 Pairs(Min.Order)

Product Details

Place of Origin:	Jiangsu, China	Brand Name:	REOO	Model Number:	RO-1
Type:	Adapter	Application:	Power	Gender:	Other, female and male

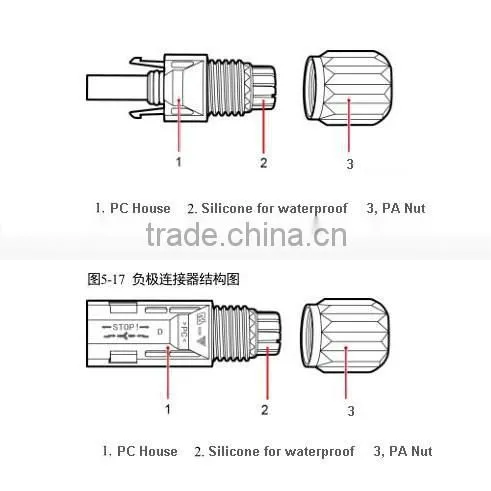

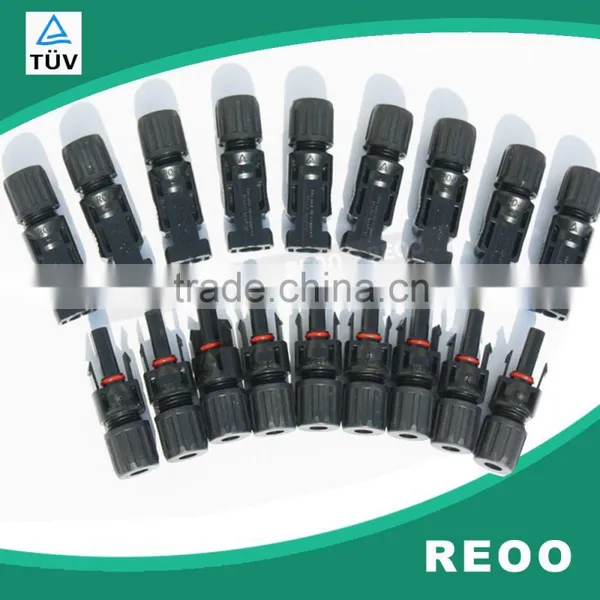

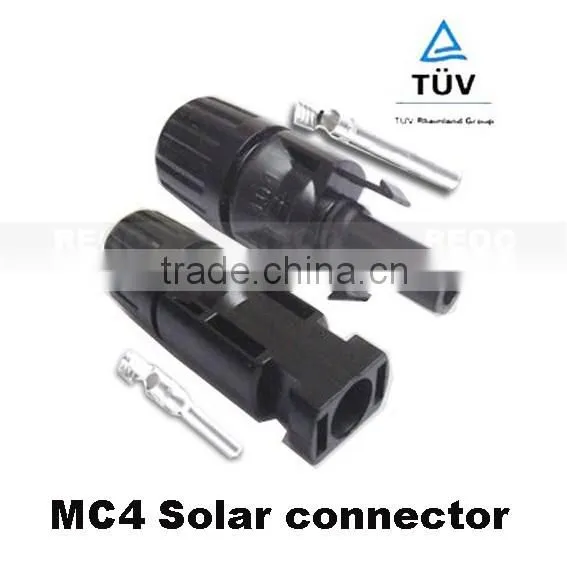

MC4 Solar power cable connector

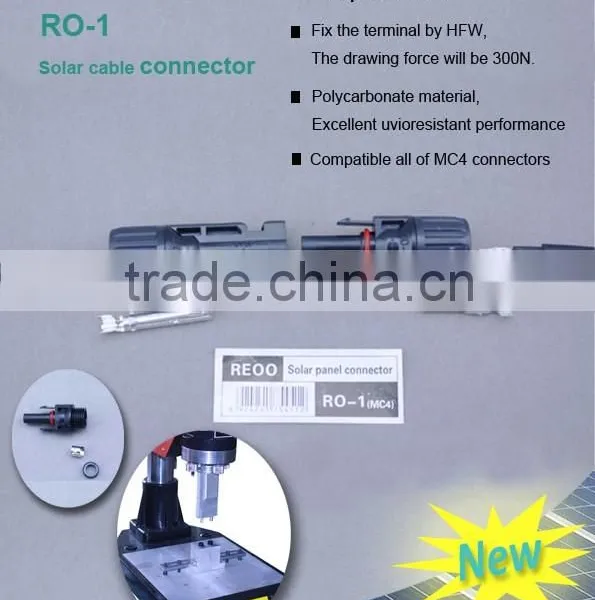

The advantage of REOO Solar connector

1, Polycarbonate raw material, Not PPO.

2, Ultrasonic hot melting , Most company use fixing clip.

3, Manufacturer price.

Raw material	Used for	Price	Characteristic
PPO PX9406P-7001	Junction box	Lower	Most of company use it for junction box.
PPO 540Z	Junction box	Lower	Lower price
PPO V0150B	Junction box	Middle	RTI higher than PX9406P
PPO 644Z	Junction box	Middle	Good quality for junction box
PA66 FR7025	Connector nut	Middle	Most of company use it for connector
PA66 FR370	Connector nut	Middle	Most of company use it for connector
PC EXL9330	Connector house	Expensive	Top quality.

Item	RO-1 solar cable connector
Compatible:	MC4 solar connector
Insulation material:	PC/PPO
Rated current :	30A
Rated voltage:	1500V
Test voltage :	6000V(50Hz,1Min)
Contact material :	Copper Tin plated
Contact resistance:	5mΩ
Degree of protection :	IP67
Safety class:	2
Flame class:	UL94-V0
Insertion force :	≤50N
Withdrawal force :	≥50N
Ambient temperature range :	-40 degree to +90 degree
Connector diameter :	4mm
Compatible cable cross sections :	solar cable 4.0mm2 and 6.0 mm2
Suitble cable :	2.5-6.0mm2 AWG 14/12/10
Be used for:	Connecting PV cable
characteristic	High insulation,Big tension,Fast integration

REOO Connector use PC raw material, It is top quality.

Package

Male house	100 pcs / PE bag. 10 bag / carton, also 1000 Pin/carton
Female house	100 pcs / PE bag. 10 bag / carton, also 1000 Pin/carton
Measure	380290470 mm/carton
Net weight	34 kg / carton
Gross weight	35.5 kg / carton

Nantong Reoo Technology Co., Ltd.: Contact nameMike Xu; Phone86-513-84105399; AddressChennan industry park, Rudong Nantong,Jiangsu
