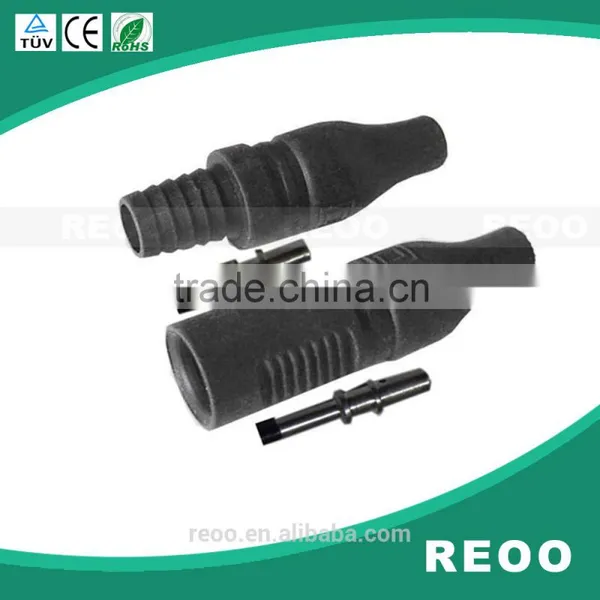

MC4 Solar power cable connector
Item |
RO-2 solar PV cable connector |
Compatible: |
MC3 Solar connector |
Insulation material: |
TPE/PA |
Rated current : |
25A |
Rated voltage: |
1000V |
Test voltage : |
6000V(50Hz,1Min) |
Contact material : |
Copper Tin plated |
Contact resistance: |
5mΩ |
Degree of protection : |
IP65 |
Safety class: |
2 |
Flame class: |
UL94-V0 |
Insertion force : |
≤50N |
Withdrawal force : |
≥50N |
Ambient temperature range : |
-40 degree to +90 degree |
Connector diameter : |
4mm |
Compatible cable cross sections : |
solar cable 4.0mm2 and 6.0 mm2 |
Suitble cable : |
2.5-6.0mm2 AWG 14/12/10 |
Be used for: |
Connecting solar PV cable |
characteristic |
High insulation, Fast integration |
REOO Connector use PC raw material, It is top quality.
Package
Male house |
100 pcs / PE bag. 10 bag / carton, also 1000 Pin |
Female house |
100 pcs / PE bag. 10 bag / carton, also 1000 Pin |
Measure |
380*290*470 mm/carton |
Net weight |
34 kg / carton |
Gross weight |
35.5 kg / carton |
|
Mr Mike Xu
NANTONG REOO TECHNOLOGY CO.,LTD.
Add: Chennan industrial park, Rudong, Jiangsu,China
Tel: 86 513 8410 5399
Fax: 86 513 8410 5505
Skype: reoochina
WhatsApp: 86 1390 1472 859
Wechat: REOO2108 |
