Home > Metallurgy, Mineral & Energy > Solar & Renewable Energy > Solar Controller > Effective Solar Panel Charge Controller

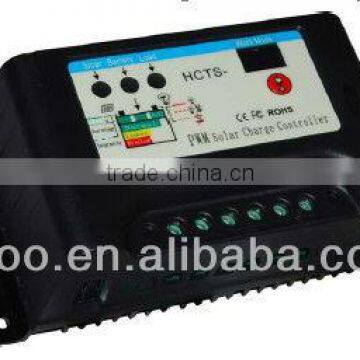

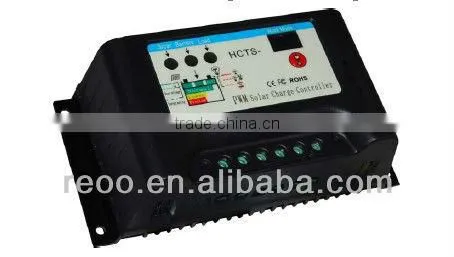

Effective Solar Panel Charge Controller

Name: Effective Solar Panel Charge Controller
Brand: REOO
SKU: 112088409
Availability: InStock

Nantong Reoo Technology Co., Ltd.

Effective Solar Panel Charge Controller thumbnail-1

Effective Solar Panel Charge Controller thumbnail-2

Effective Solar Panel Charge Controller thumbnail-3

Effective Solar Panel Charge Controller thumbnail-4

Effective Solar Panel Charge Controller thumbnail-5

Effective Solar Panel Charge Controller photo-1

Effective Solar Panel Charge Controller photo-2

Effective Solar Panel Charge Controller photo-3

Effective Solar Panel Charge Controller photo-4

Effective Solar Panel Charge Controller photo-5

US$ 33 - 35 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

REOO

Model Number:

HCTS-L-2410

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name REOO

Model Number HCTS-L-2410

Application Charger Controller

Rated Voltage Other, 12/24V

Maximum Current 10A

Type: HCTS-L-2410 Specification: 24 V / 12 V 10 A Automatic identification system voltage

System Voltage	12V	24V
The biggest bear solar panels charging electric current	10A	10A
The biggest power load	50W	90W
LED series voltage range(automatic boost tracking)	14V---55V	27V---60V
LED parallel number range(the customers can adjust themselves)	1--6	1---9
Rated load output current range(the customers can adjust themselves)	30ma---1.8A	30ma--2.7A
IP Grade	IP65	IP65
Price FOB	USD29.52B	155RMB
IP Grade	IP67 whole waterproof	IP67 whole waterproof
Price FOB	USD33.3	USD33.3

1.The request of the lamp cap: Using the constant flow control body, lamp holder without constant current drive, just LED lights series or parallel beads Single. LED lamp bead whether High power of 1 W, small power of a few tenths of W, or an integrated light source, as long as the series voltage, current in parallel within the scope of the controller, can use this product. (The specific scope of parameters reference to the table below).

2.Load working mode: Four time adjustable light controller(flexible and convenient).

(1)The whole power work time(digital tube: 00-18) :It can be arbitrarily regulated from0 hours to 18 hours.00 representatives it is not the whole power this period of time, and directly into the next time work.

(2)2 time 0% -90% power adjustment period:(digital tube 20-29) represents the second time working time 0 hours to nine hours arbitrary regulation,(digital tube 50-59) represents the second time power than a 0%-90% can be arbitrary adjustable light.20 representatives it have no second time.

(3)3 time 0%-90% power control time:(digital tube 30-39) on behalf of a third time working time 0 hours to nine hours to arbitrarily regulate, and(digital tube 60-69) represents the second time power than a 0%-90% can be arbitrary adjustable light.30 representative it not have the third time .

(4)4 time work time of 60% brightness before daybreak :(digital tube 80-89) represents the fourth time working time 0 hours to 4.5 hours,half an hour for a class.80 representative no fourth time.

3.Delay time can be adjusted to turn on the light:(70-79) delay 3 minutes to turn on the light for a class,0 minutes to 27 minutes of delay open lamp time can be arbitrary regulation.The market are mostly delay 10 minutes light on.70 representative debug mode, no open lamp time delay.Solar panels not charging, immediately light lamps, charging, immediately to turn off the lights.This mode to judge whether a system is stable overall.

4.LED parallel number can be adjusted:(digital tube 41-49) said the number 1 and LED in parallel to 9 and arbitrary regulation.Each 300 ma output current.Biggie 4 and to 12 and can be adjusted.

5.Constant current efficiency:12 V system can be as high as 94% above, 24 V system can be as high as 96% above.(It can be actual measurement).

6.Line loss compensation:Need not worry about voltage loss when controller is too far away the lamp pole bottom and lamp holder.

7.Waterproof level IP65:Three lacquer closed circuit board.the United States imported resistant to high temperature of 280 degrees and it will not be off.Need not worry about the fog, steam, water.According to the experimental results,Circuit board put into water and take it out in the electric, circuit boards have water, but do not cause damage to the controller.(recommendation)

Our Services

Installation
We send engineer or technicians to buyers factory to install machine.

All expenditure on travel, food, accommodation and transportation of our engineers/ technicians for installation will be borne by buyer.

REOO company borne the salary of engineer.

Training
We supply both overseas and local training to the engineers and technicians on operation and maintenance.

buyer borne air tickets, lodging, food and training material .
Minimum 12 (twelve) months warranty of all products and services .

guarantee for the spares and required maintenance or replacement support are to be provided . Buyer borne the cost of the material for parts of maintenance.

Backup spares:

We supply essential backup spares. items beyond warranty periods, buyer borne the cost.
