99.95% Prue Tungsten Sheet/plate Metal for Sale
US$ 1 - 1,000
MOQ: 10 Kilograms
Key Specifications
Get Latest Price
Place of Origin:
Shaanxi, China
Brand Name:
GETWICK
Model Number:
W1,W2,WAL1
Payment & Shipping
Payment Methods:
Port of Shipment:
Hongkong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Shaanxi, China
Brand Name
GETWICK
Model Number
W1,W2,WAL1
Thickness
>0.1mm
Width
50-450mm
Specifications
Tungsten sheet/plate1.high density
2.Good machinability
3.The professional services
4.Good quality with ISO certificate

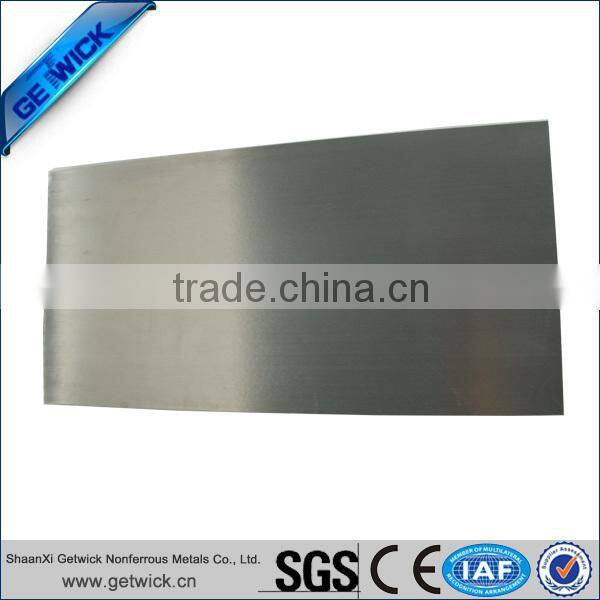

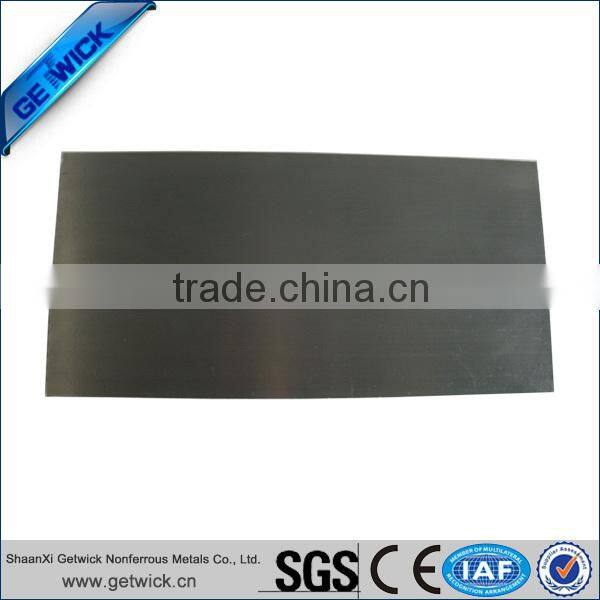

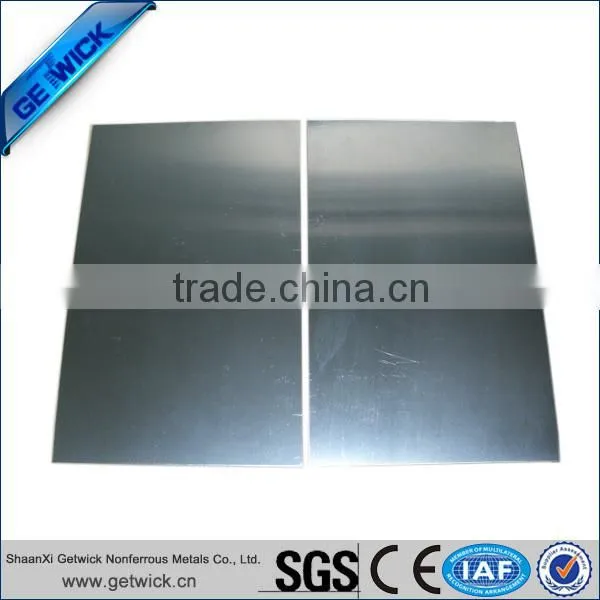

Tungsten sheet
Applications:
* For producing electric light source parts,components of electric vacuum;
* For producing W-boats,heat shield and heat bodies in high temperature furnace.
* For producing electric light source parts,components of electric vacuum;
* For producing W-boats,heat shield and heat bodies in high temperature furnace.
Size: 1.0~50mm( Thickness ) x 50~450mm( Width ) x 100~1000mm( Length )
Purity: 99.95%,99.99% and 9.999%
Standard: ASTM B760 or GB3875-83
Standard: ASTM B760 or GB3875-83
ASTM B760 as follows:
| Chemical composition | ||
| element | Max | Tolerance |
| C | 0.01 | ±0.002 |
| O | 0.01 | 10% |
| N | 0.01 | +0.0005 |
| Fe | 0.01 | +0.001 |
| Ni | 0.01 | +0.01 |
| Si | 0.01 | +0.01 |
Thickness Tolerance
| Standard Width inch (mm) | Standard Thickness inch(mm) | Thickness Tolerance inch (mm) |
| ≤12(305) | 0.005-0.010 (0.13-0.25) | ±0.001(±0.0254) |
| >0.010-0.020 (0.25-0.51) | ±0.002(±0.0508) | |
| >0.20(0.51) | ±10% | |
| >12-24(305-610) | >0.010-0.025(0.25-0.64) | ±0.0025(±0.0635) |
| >0.025(0.64) | ±10% |
Our products is available in a wide range of forms including nut, screw ,ring ,wire, foil, sheet, rod, strip, plate, tube, alloys according to Standard ASTM AMS ASME MIL DMS JIS GB, etc.
As a DNV certified ISO9001:2000 company, we have strict quality control system and provide professional service to our customers around the world. Our customers are in aerospace industry, chemical equipment industry, medical industry and civilian industry in USA, UK, Germany, Sweden and some other countries.
