Help CenterMo-La Alloy Tungsten Bar
Related Products
Specifications
Mo-La Alloy tungsten Bar1.Standard:ASTM B777
2.Density:17-19.3g/cm3
3.Dimension:Dia.6mm min.
4.Different sizes are availabl
Tungsten Bar specification |
1).Mo-La Alloy tungsten Bar
1.Standard:ASTM B777
2.Grade: Class1,Class2,Class3,Class4
3.Density:17-19.3g/cm3
4.Dimension:Dia.6mm min.
5.Available in a wide range of forms
5.including screw, ring, wire, foil, sheet, rod, tube
6.Different sizes are available
Chemical composition |
|
|
element |
Max |
Tolerance |
C |
0.01 |
±0.002 |
O |
0.01 |
10% |
N |
0.01 |
+0.0005 |
Fe |
0.01 |
+0.001 |
Ni |
0.01 |
+0.01 |
Si |
0.01 |
+0.01 |
2).Applications of tungsten bar:Tungsten bar is generally used to manufacture emitting cathode, high temperature setting lever, support, lead, print needle and all kinds of electrodes and the quartz furnace heater.
3).tungsten bar forms and dimensions
furnished form |
specified diameter |
min.length |
wroughted |
2.8<=d<5.0 |
600 |
5.0<=d<6.5 |
300 |
|
6.5<=d<11.0 |
200 |
|
straightened |
0.8<=d<1.0 |
1000 |
1.0<=d<3.0 |
800 |
|
ground |
0.8<=d<3.0 |
800-1000 |
3.0<=d<6.5 |
300-600 |
|
6.5<=d<10.0 |
200 |

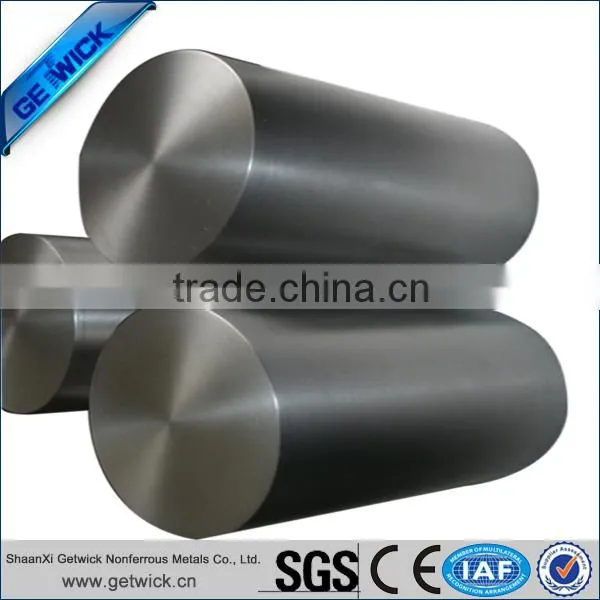

Tungsten Bar photo shows |
Why Choose GETWICK? |
1 |
More than 3000 products are available. |
2 |
An ISO9001:2008,ISO14001,CE Certified. |
3 |
Offer you professional rare metal products and customized services. |
4 |
We feedback in 24 hours online and provide professional advice on products. |
5 |
With an annual output of 300 MT of tungsten & molybdenum and other precious metals. |
6 |
More than six years experiences, Winning customers ’trust and satisfaction from all over the world. |
About GETWICK Certificate |
About GETWICK Factory |
Packaging information |
Type of payment |
Welcome to visite our company and make cooperation~~
Choose Getwick,Choose quality
Choose Getwick,Choose Service
Choose Getwick,Choose Speed
