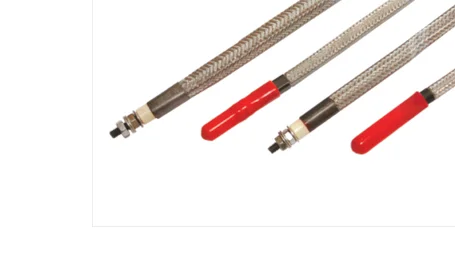

Tubular Heaters for Manifolds
- 0 per Month
- MUMBAI PORT
- T/T
Product Details
Condition: | New | Power Source: | Electric | ||
Brand Name: | Anupam | Model Number: | Anupam | Dimension(L*W*H): | Customized |
Weight: | As per Dimensions | Voltage: | Customized | Power(W): | Customized |
Certification: | CE Certification Available | Warranty: | One Year Against Manufacturing Defects | After-sales Service Provided: | No overseas service provided |
Product Description
Anupam'sThe helical wound heating wire is made of a high temperature resistant NiCr alloy. And the insulation consists of superior grade of magnesium oxide (MgO). As the heaters are swadged, even at high sheath temperature they have excellent electrical insulation and a high heat transfer. To prevent the heater from moisture the connection ends are sealed with sealing components.

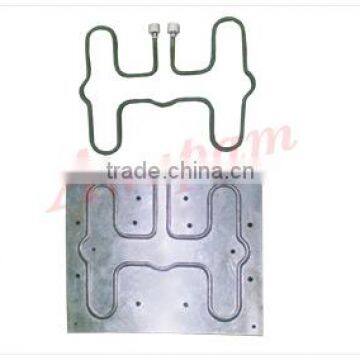

Precise forming of the heater is required to fit properly into the groove in the mould. To ensure this fit normally use a template as an inspection tool in the forming process. This template can be custom supplied or manufactured by Anupam as per customer's design.
Heaters are available in dia 6.5mm, 8mm, 8.5mm and square section of 6mm x 6mm or customize diameter.
To manufacture Mould Tubular Heater it is necessary to have an accurate drawing showing all the center distance, Bending Radius and Degree.
Applications
Hot Runner Manifolds
Packaging | As per your Requirement |
Shipping | As per your Requirement |
With the mindset of adherence to quality standards, Anupam Heaters is the 1st Indian Heater Manufacturing company to undergo audit for Quality Management System by Lloyd's Register and achieved certification under ISO 9001-2000. Currently certified under ISO 9001-2008, we take great pride to inform that our products are also meeting the European Safety Standard EN60335-1 “CE-Mark”.
Company History
Established in 1984 & Pioneers in developing Ceramic Band Heaters in India, Today we are one of the leading Indian companies to manufacture wide range of quality Heating elements for Plastic & Other Allied Industries. Since our inception, we have established a strong foothold in the Indian & Overseas market.
