Help CenterFlexible Tubular Heaters
US$ 2 - 50
MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Hotrunner Heater
Power Source:
Electric
Payment & Shipping
Payment Methods:
Port of Shipment:
MUMBAI PORT
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Type
Other, Hotrunner Heater
Power Source
Electric
Brand Name
Anupam
Model Number
Anupam
Dimension(L*W*H)
Customized
Weight
As per Dimensions
Voltage
230 V
Power(W)
Customized
Certification
CE Certification Available
Warranty
One Year Against Manufacturing Defects
After-sales Service Provided
No overseas service provided
Product Description

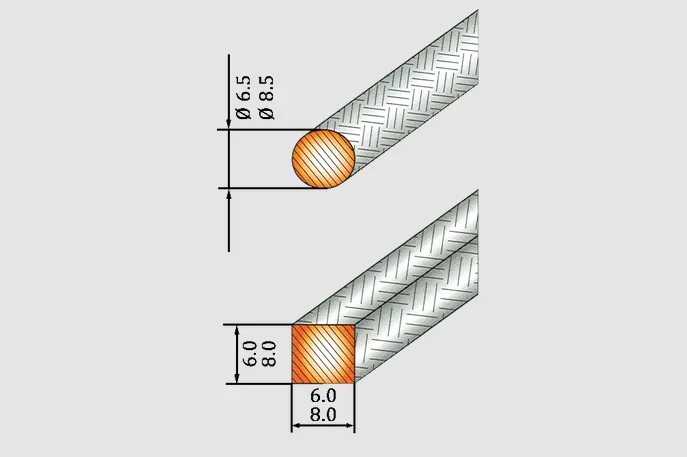

Anupam's flexible tubular heaters are available in round section 6.5 mm D / 8.5 mm D and square section 6 mm x 6 mm/ 8 mm x 8 mm. These are available in various sizes (see features) and can be bent by hand to fit into nearly any 2D or 3D contour and groove.
Applications
- Hot runner systems.
- Welding bars.
Features
Technical possibilities & options:
- Square section flexible heaters provide high efficiency due to a contact surface of 76%.
- Optimal conduction due to braided metal sleeve outer sheath.
- Maximum length 2600 mm.
- Bend radius minimum 12 mm resp. & 14mm. in the middle.
- Standard voltage 230 V.
- Connection type M3 resp. M4 threaded pins.
| Length (mm) | Wattage (W) | ||||
| 6.0 x 6.0 | ø6.5 | ø8.5 | ø 8.5 | 8.0 x 8.0 | |
| 500 | 800 | 700 | 700 | 1100 | 1100 |
| 550 | 900 | 750 | 750 | 1250 | 1200 |
| 600 | 1000 | 850 | 850 | 1400 | 1300 |
| 650 | 1100 | 900 | 950 | 1550 | 1400 |
| 700 | 1200 | 1000 | 1000 | 1700 | 1500 |
| 750 | 1300 | 1050 | 1100 | 1850 | 1700 |
| 800 | 1400 | 1200 | 1200 | 2000 | 1800 |
| 850 | 1500 | 1250 | 1250 | 2150 | 1900 |
| 900 | 1600 | 1300 | 1350 | 2300 | 2000 |
| 950 | 1700 | 1350 | 1450 | 2450 | 2100 |
| 1000 | 1800 | 1400 | 1500 | 2600 | 2200 |
| 1050 | 1900 | 1450 | 1500 | 2600 | 2200 |
| 1100 | 2000 | 1500 | 1650 | 2700 | 2400 |
| 1150 | 2100 | 1550 | 1750 | 2750 | 2500 |
| 1200 | 2200 | 1600 | 1800 | 2800 | 2700 |
| 1250 | 1300 | 1650 | 1900 | 2850 | 2800 |
| 1300 | 2400 | 1700 | 2000 | 2900 | 2900 |
| 1350 | 2500 | 1750 | 2050 | 2950 | 3000 |
| 1400 | 2600 | 1800 | 2150 | 3000 | 3100 |
| 1450 | 2700 | 1850 | 2250 | 3050 | 3200 |
| 1500 | 2800 | 1900 | 2300 | 3100 | 3300 |
| connection type | M3 | M3 | M4 | M4 | M4 |
Packaging & Shipping
| Packaging | As per your Requirement |
| Shipping | As per your Requirement |
Company Information
Company Certification
With the mindset of adherence to quality standards, Anupam Heaters is the 1st Indian Heater Manufacturing company to undergo audit for Quality Management System by Lloyd's Register and achieved certification under ISO 9001-2000. Currently certified under ISO 9001-2008, we take great pride to inform that our products are also meeting the European Safety Standard EN60335-1 “CE-Mark”.
Company History
Established in 1984 & Pioneers in developing Ceramic Band Heaters in India, Today we are one of the leading Indian companies to manufacture wide range of quality Heating elements for Plastic & Other Allied Industries. Since our inception, we have established a strong foothold in the Indian & Overseas market.
With the mindset of adherence to quality standards, Anupam Heaters is the 1st Indian Heater Manufacturing company to undergo audit for Quality Management System by Lloyd's Register and achieved certification under ISO 9001-2000. Currently certified under ISO 9001-2008, we take great pride to inform that our products are also meeting the European Safety Standard EN60335-1 “CE-Mark”.
Company History
Established in 1984 & Pioneers in developing Ceramic Band Heaters in India, Today we are one of the leading Indian companies to manufacture wide range of quality Heating elements for Plastic & Other Allied Industries. Since our inception, we have established a strong foothold in the Indian & Overseas market.
