24V DC auto gate motor

Specifications

24V DC Sliding Gate Motor
1.7500RPM, 0.1A free-run
2.3 slots armature
3.RoHs Compliance
4. EMC/EMI Suppression

Specifications

24V DC Sliding Gate Motor
1.7500RPM, 0.1A free-run
2.3 slots armature
3.RoHs Compliance
4. EMC/EMI Suppression

24V DC Sliding Gate Motor ( RS-390PAVC2-17210RL2 )

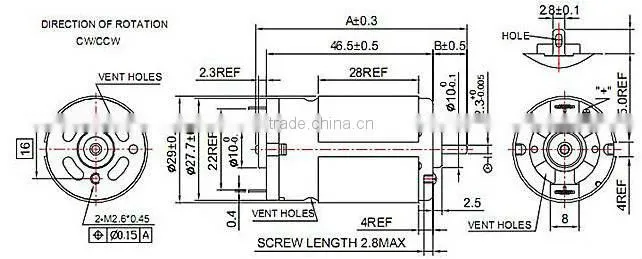

DIMENSION DRAWING:

TECHNICAL DATA:

1.MEASURING CONDITIONS
          1.1.Rated voltage:                                24  V DC
          1.2.Motor Position:                               To be measured with motor horizontally held.
          1.3.Environmental temperature:25±10°C.
          1.4.Environmental humidity:65%±20%RH.
2.ELECTRICAL CHARACTERISTICS (At initial stage after 30 seconds run-in):
          2.1.At No load
                2.1.1.Speed:                                 7500 ±10% rpm
                2.1.2.Current:                              0.1  A(max  0.18A)

          2.2.At Max Efficiency
                2.2.1.Torque:                                12.8mNm

                2.2.2.Speed:                                 6288 ±10% rpm
                2.2.3.Current:                              0.52  A

          2.3.At Stall
                2.3.1.Torque:                                79.4mNm
                2.3.2.Current:                              2.7  A

          2.4.Direction of Rotation:                        CW  (Clockwise when viewing from the output shaft end with
                                                            positive voltage applied to positive terminal.

3.MECHANICAL CHARACTERISTICS
          3.1.Dimension drawing:     See<OUTLINE>.
          3.2.End Play:0.05~0.55mm
          3.3.Operating Temperature:    -10°C ~ +60°C.
