Home > Electrical & Electronics > Electric Motor > DC Motor > 12V DC Micro Motor for RC Car and Time Recorder

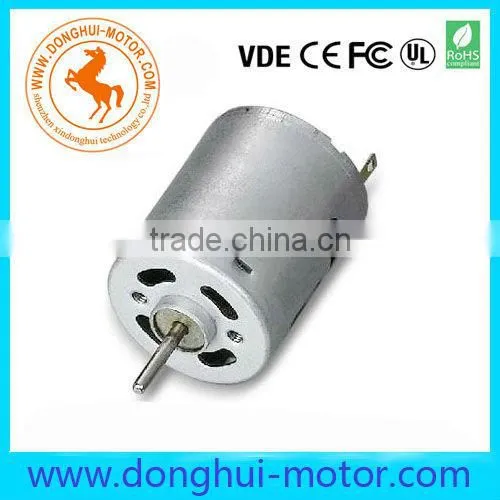

12V DC Micro Motor for RC Car and Time Recorder

Name: 12V DC Micro Motor for RC Car and Time Recorder
Brand: DONG HUI
SKU: 112074145
Availability: InStock

12V DC Micro Motor for RC Car and Time Recorder thumbnail-1

12V DC Micro Motor for RC Car and Time Recorder photo-1

Negotiable MOQ: 10000 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

DONG HUI

Model Number:

RS-365SH-1890

Contact Supplier Request Quote Chat Now

Shenzhen Xin Dong Hui Motor Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shen zhen or Hong kong

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name DONG HUI

Model Number RS-365SH-1890

Usage Electric Bicycle, Home Appliance, Other, Electric Bicycle, Home Appliance, Vacuum Cleaner

Certification CCC, CE, ROHS, UL, VDE, Other, CCC, CE, ROHS, UL, VDE, ISO:9001:2000

Type Micro Motor

Torque 29.4mNm Stall Torque

Construction Permanent Magnet

Commutation Brush

Speed(RPM) 10500rpm free-run

Continuous Current(A) 0.13A free-run

Output Power 8.1

Voltage(V) 12

Efficiency IE 1

Specifications

12V DC Micro Motor for RC Car and Time Recorder
1.Dia x L:27.7x 32.6mm
2.EMC/EMI optional
3.Magnet stator
4.carbon brushes

Specifications

12V DC Micro Motor for RC Car and Time Recorder
1.Dia x L:27.7x 32.6mm
2.EMC/EMI optional
3.Magnet stator
4.carbon brushes

12V DC Micro Motor for RC Car and Time Recorder( RS-365SH-1890)

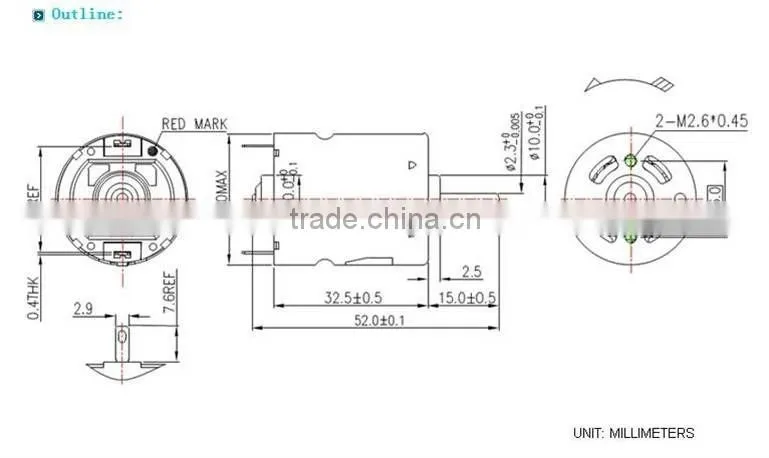

Outline:

Note:

1. Shaft length can be custom made.

2. Class F magnet wire

3. Leaf brush system

4. Carbon brushes

5. Metal Endcap

6. EMC suppression for option

Technical datas:

Rated Voltage: 12V

No load speed: 10500rpm

No load current: 0.13A

At max efficiency:

Speed: 8746rpm

Current: 0.62A

Torque: 4.9mNm

At stall:

Torque: 29.4mNm

Current: 3.1A

Remark:The above technical datas are only for reference,we (dong hui motor) can customerize them according to different requirements after evaluation.

Typical Applications :

Massager / Vibrator , Copy Machine / Laser Printer,Vending Machine,hair dryer etc.
