Automotive Small dc Motor Used for Damper Actuator, Odometer
US$ 0.66 - 1.12
MOQ: 10000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
DONG HUI
Model Number:
RF-370
Payment & Shipping
Payment Methods:
Port of Shipment:
Shen zhen or Hong kong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
12V DC Small Motor,electric Parking Brakes Motor,RS-770SHNegotiableMOQ: 1000000 Pieces -
Power Pan Motor FT-260SA,mini Electric Motor, dc Micro MotorNegotiableMOQ: 10000 Pieces
-
12V dc Motor,FT-280SA,used for Door LockNegotiableMOQ: 10000 Pieces
-
Door Lock Actuator Motor, Lock Motor,12V dc MotorNegotiableMOQ: 10000 Pieces
-
Side Mirror Actuator DC Motor FC-140ANegotiableMOQ: 10000 Pieces
Place of Origin
Guangdong, China
Brand Name
DONG HUI
Model Number
RF-370
Usage
Car, Fan, Home Appliance, Other, Car, Fan, Home Appliance, Odometer,Damper actuator
Certification
ROHS, UL, Other, ROHS, UL, ISO:9001:2000
Type
Micro Motor
Torque
1~3mN.m
Construction
Permanent Magnet
Commutation
Brush
Speed(RPM)
2100~3000RPM
Continuous Current(A)
0.008~0.02A
Output Power
0.3~1.0W
Voltage(V)
12 or 24
Efficiency
Other, 72%
Specifications
Specifications1,Precious metal-brush motor for automotive products
2,Low noise and low current
3,The ISO/RoHS certified
Specifications
1,Precious metal-brush motor for automotive products
2,Low noise and low current
3,The ISO/RoHS certified company
The models we list below are part of our existing designs. We offer specific motor design for every customer.
- Precious metal-brush motor used for automotive products

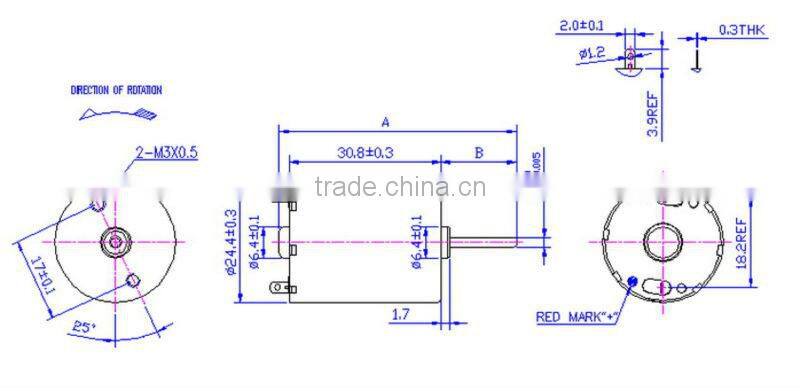

- Dimension: dia. 24.4 x 30.8 L. shaft O.D. 2.0 mm
- Basic Structure: Zinc coated steel housing / Zinc coated steel end cap
- Application: Automotive odometer, Damper actuator
- Weight: Approx. 50g
- PRODUCTION FLOW:
